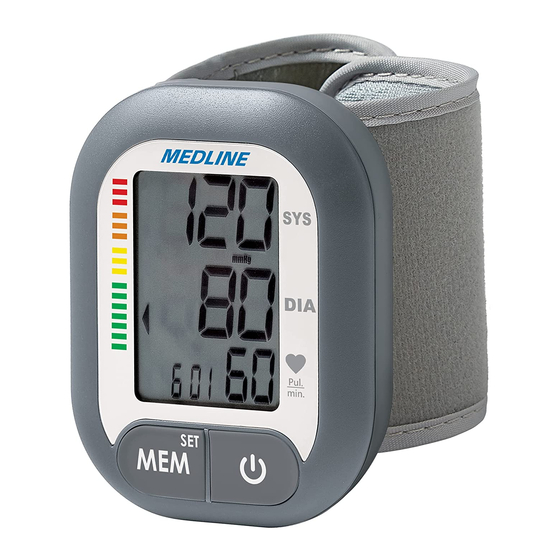

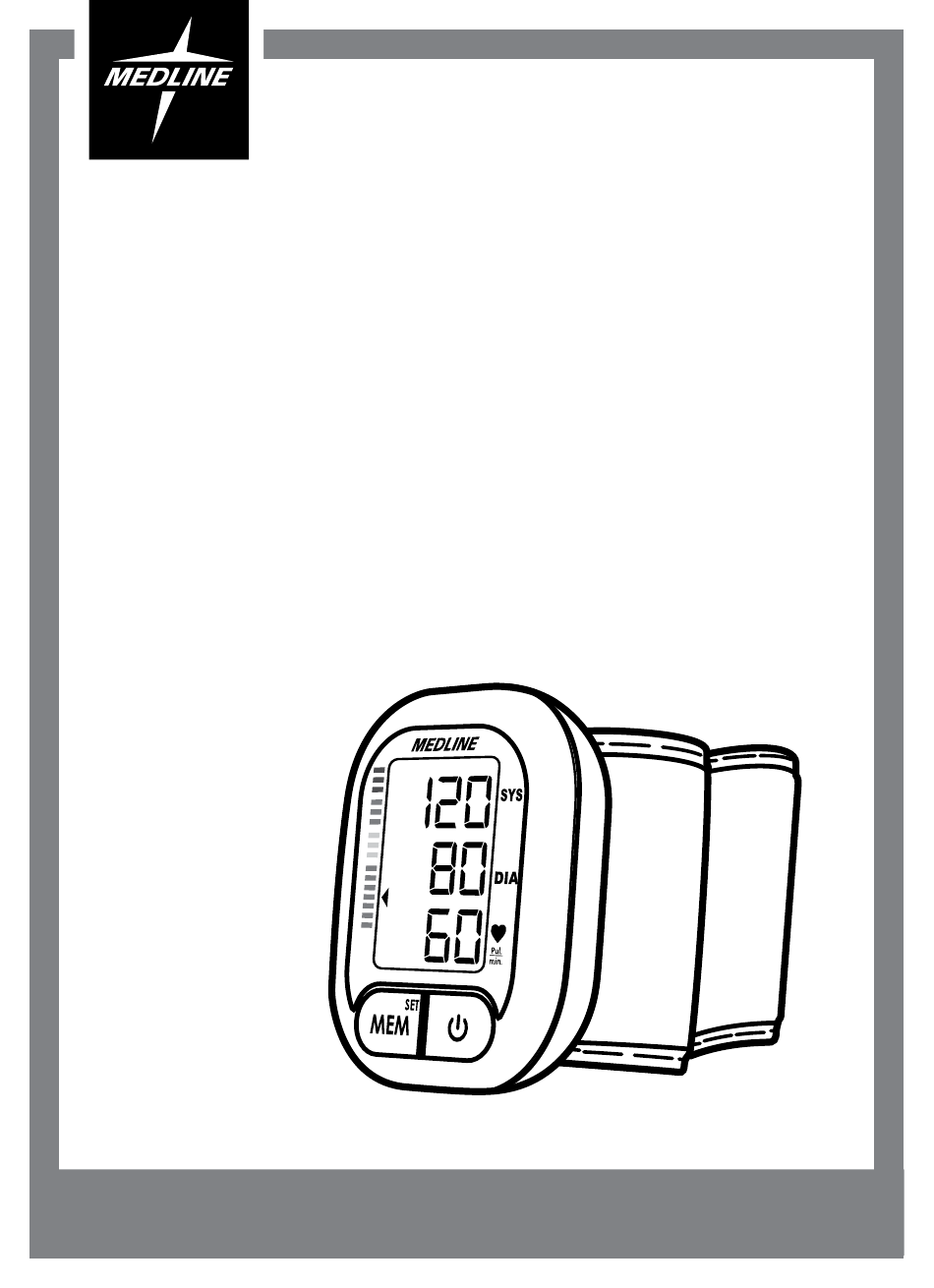

- Page 1 WRIST BLOOD PRESSURE MONITOR User Guide MDS4003...
- Page 2 • Thank you for selecting the Medline Wrist Blood Pressure Monitor MDS4003. • Please read the user-manual and quick-start-guide thoroughly before operating the unit. Do not discard or misplace the manual to ensure proper usage.
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ....................4 General Description Indications for Use Measurement Principle Safety Information LCD Display Signal Monitor Components Package Components BEFORE YOU START ..................11 Installing and Replacing the Batteries Setting Date, Time and Measurement Unit MEASUREMENT ....................15 Applying the Cuff Taking a Measurement DATA MANAGEMENT ..................17 Memory Recall... -
Page 4: Introduction
The warranty is only valid upon presentation of proof of purchase. Readings taken by the MDS4003 are equivalent to those obtained by a trained observer using the cuff and stethoscope auscultation method. This manual contains important safety and care information and provides step by step instructions for using the product. -
Page 5: Safety Information
Electrical waste products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. Symbol for “CAUTION”: These notes must be observed to prevent any damage to the device. MDS4003 | MEDLINE 5... - Page 6 300mmHg or constant pressure > 15mmHg for more than 3 minutes) applied to the wrist may lead to an ecchymosis. * Please check that operation of the device does not result in prolonged impairment of patient blood circulation. 6 MEDLINE | MDS4003...
- Page 7 * If you experience discomfort during a measurement, such as pain in the wrist or other complaints, press the START/STOP button to release the air immediately from the cuff. Loosen the cuff and remove it from your wrist. MDS4003 | MEDLINE 7...
- Page 8 * If you have any problems with this device, such as setting up, maintaining or using, please contact Medline at 1-800-MEDLINE. Do not attempt to open or repair the device in the event of malfunctions. The device must only be serviced, repaired, and opened by the manufacturer.
-
Page 9: Lcd Display Signal
Blood pressure monitor is detecting an Irregular heartbeat irregular heartbeat during measurement. Current time Month/Day/Year, Hour: Minute Blood pressure Indicates the blood pressure level level indicator Blood pressure monitor is detecting a Heartbeat heartbeat during measurement. MDS4003 | MEDLINE 9... -
Page 10: Monitor Components
Monitor Components Component List: 1. PCBA; 2. Air Pipe; 3. Pump; 4. Valve; 5. Cuff. Package Components 1) Wrist Blood Pressure Monitor (MDS4003) 2) 2×AAA batteries 3) User manual 4) Quick Start Guide 10 MEDLINE | MDS4003... -
Page 11: Before You Start
Remove batteries if the device is not likely to be used for some time. Worn batteries are harmful to the environment. Do not dispose with household garbage. Remove the old batteries from the device following your local recycling guidelines. MDS4003 | MEDLINE 11... -
Page 12: Setting Date, Time And Measurement Unit
2. Press the “MEM” button to change the [YEAR]. Each press will increase the numeral by one in a cycling manner. 3. When you get the right year, press “START/STOP” button to confirm your selection and it will turn to the next step. 12 MEDLINE | MDS4003... - Page 13 5. The monitor will then change to the time format setting. Repeat steps 2 and 3 to confirm the time format between 24 hours or 12 hours. 6. Repeat steps 2 and 3 to confirm [HOUR] and [MINUTE]. MDS4003 | MEDLINE 13...
- Page 14 7. Repeat steps 2 and 3 to confirm the [MEASUREMENT UNIT]. Note: mmHg is common in US. kPa is common outside of US. 8. After confirming the measurement unit, the LCD will display all the settings you have done once again and then turn off. 14 MEDLINE | MDS4003...
-
Page 15: Measurement
• Keep your back against the backrest of the chair. • For a meaningful comparison, try to measure under similar conditions. For example, take daily measurements at approximately the same time, on the same wrist, or as directed by a physician. MDS4003 | MEDLINE 15... - Page 16 1. When the monitor is off, press “START/STOP” button to turn on the monitor, and it will finish the whole measurement. LCD display Adjusting to zero. Inflating and measuring. Display and saved result. 2. Press “START/STOP” button to power off, otherwise it will turn off within 1 minute. 16 MEDLINE | MDS4003...
-
Page 17: Applying The Cuff Taking A Measurement
The most recent record (1) is shown first. Each new measurement is assigned to the first (1) record. All other records are pushed back one digit (e.g., 2 becomes 3, and so on), and the last record (60) is dropped from the list. MDS4003 | MEDLINE 17... - Page 18 Note: To exit out of delete mode without deleting any records, press START/STOP button before pressing “MEM” to confirm any delete commands. 3. If there is no record, the right display will show. 18 MEDLINE | MDS4003...
-
Page 19: Memory Recall Deleting Results
Immediate measurement Within 1 hour after tea, coffee, smoking after dinner or drinking When talking or Within 20 minutes moving your fingers after bathing When you have to In a very cold environment use the restroom MDS4003 | MEDLINE 19... - Page 20 Avoid intense shaking Avoid dusty and unstable or dropping the unit temperature environment Avoid getting the cuff or device wet Use a dry or damp cloth to remove dirt 20 MEDLINE | MDS4003...
-
Page 21: Tips For Measurement Maintenance
Usually this is NOT a cause for concern. However, if the symbol appears often, we recommend you seek medical advice. Please note that the device does not replace a cardiac examination, but serves to detect pulse irregularities at an early stage. MDS4003 | MEDLINE 21... -
Page 22: Why Does My Blood Pressure Fluctuate Throughout The Day
Is the result the same if measuring on the right wrist? The device is approved to be used on both wrists, but the results will vary. For the most consistent readings, measure the same wrist every time. 22 MEDLINE | MDS4003... -
Page 23: Troubleshooting
The measurement result is out of the measurement Warning Out of measurement range (SYS: 60mmHg to “out“ shows message 230mmHg; or DIA: 40mmHg range to 130mmHg; or Pulse: 40-199 pulse/minute)) MDS4003 | MEDLINE 23... -
Page 24: Specifications
15º on either side of the vertical. Software version Device classification Internally Powered ME Equipment WARNING: Do not attempt to modify the device in any way. 24 MEDLINE | MDS4003... -
Page 25: Contact Information
Contact Information For more information about our products, please visit www.medline.com or call customer service at 1-800-MEDLINE. Manufactured by: Medline Industries, Inc. Three Lakes Drive Northfield, IL 60093 USA FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject... -
Page 26: Complied Standards List
1: Evaluation and testing within a risk management process ISO 10993-5:2009 Biological evaluation of medical devices - Part Bio-compatibility 5: Tests for in vitro cytotoxicity ISO 10993-10:2010 Biological evaluation of medical devices - Part 10: Tests for irritation and skin sensitization 26 MEDLINE | MDS4003... -
Page 27: Emc Guidance
The device is suitable for use in all establishments, other than domestic and Harmonic emissions those directly connected to the public Class A IEC 61000-3-2 low-voltage power supply network that supplies buildings used for domestic purposes. Voltage fluctuations/ flicker emissions Complies IEC 61000-3-3 MDS4003 | MEDLINE 27... - Page 28 30 A/m be at levels characteristic magnetic field 50Hz/60Hz 50Hz/60Hz of a typical location in IEC 61000-4-8 a typical commercial or hospital environment. NOTE U is the a.c. mains voltage prior to application of the test level. 28 MEDLINE | MDS4003...
- Page 29 If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the device. b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3V/m. MDS4003 | MEDLINE 29...
- Page 30 NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. 30 MEDLINE | MDS4003...
- Page 31 Minimum separation distances for higher IMMUNITY TEST LEVELS shall be calculated using the following equation: Where P is the maximum power in W, d is the minimum separation distance in m, and E is the IMMUNITY TEST LEVEL in V/m. MDS4003 | MEDLINE 31...
- Page 32 ©2019 Medline Industries, Inc. Medline is a registered trademark of Medline Industries, Inc. Manufactured for: Medline Industries, Inc., Three Lakes Drive, Northfield, IL 60093 USA. Made in China 1-800-MEDLINE RI19CN1...
