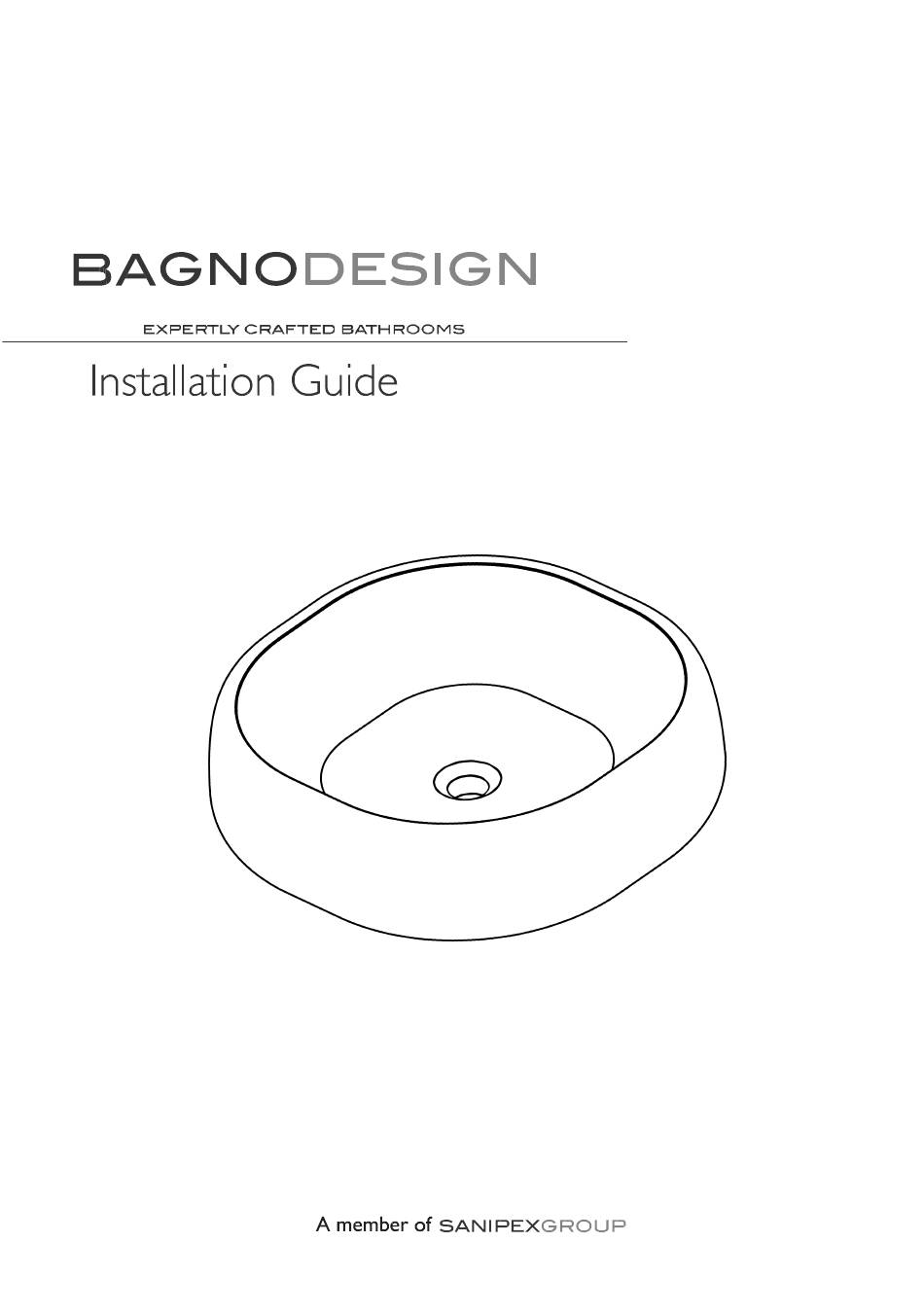

- Page 1 BDS-GEN-440-XX GENOA COUNTERTOP WASH BASIN 440X440MM www.sanipexgroup.com...
- Page 2 IMPORT ANT PLEASE READ Remove all packaging and check the product for missing parts or damage before starting installation. Any alterations made to this product and fittings may infringe water regulations and invalidate the guarantee. Installation must comply with all Local/National Water Supply Authority Regulations/Byelaws and Building and Plumbing Regulations.
- Page 3 Drill, drill bits & hole-saw: Required when drilling a wooden counter-top surface, for Marble/Stone counter-tops please use specialized cutting company. Place the basin on the counter-top, take notice of the spout length of the mixer so that the distance X is correct. Mark around the perimeter of the basin and waste hole.
- Page 4 Check that the waste provision is in the correct place, check the bottle trap dimensions to ensure that the distance Y is achievable. Ø32mm Drill waste hole allowing for the finished dimensions of the waste outlet. In this instance its B=75-110 mm, please check your corresponding waste outlet product.
- Page 5 Install the waste assembly into the basin. If required, place a few dots of silicon on the base of the basin, align, and place in position, allow the silicon to cure for a few hours.
- Page 6 Install the bottle trap onto the waste, cut the horizontal pipe to length and install into the wall via a waste compression fitting or rubber socket. If required run a small bead of silicon around the perimeter base. INSTALLATION COMPLETE!!!
- Page 7 Note:...
- Page 8 www.sanipexgroup.com INS-GEN-440-XX-09-21...
