Sanipex BAGNODESIGN BDM-SES-309-X-XX Installation Manual

Sanipex BAGNODESIGN BDM-SES-309-X-XX Installation Manual

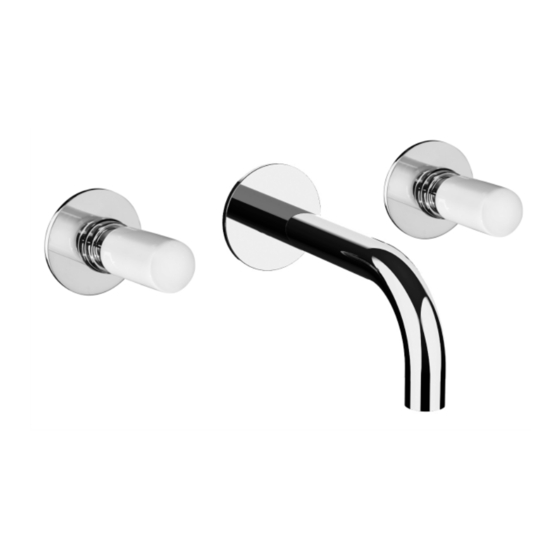

Sestriere concealed 3 hole basin mixer

Advertisement

Quick Links

BAGNODESIGN
EXPERTLY CRAFTED BATHROOMS
Installation Guide
BDM-SES-309-X-XX
SESTRIERE CONCEALED 3 HOLE BASIN MIXER
A member of
SANIPEXGROUP
Please leave these instructions with the customer

Advertisement

loading
Need help?

Need help?

Do you have a question about the BAGNODESIGN BDM-SES-309-X-XX and is the answer not in the manual?

Questions and answers

Summary of Contents for Sanipex BAGNODESIGN BDM-SES-309-X-XX

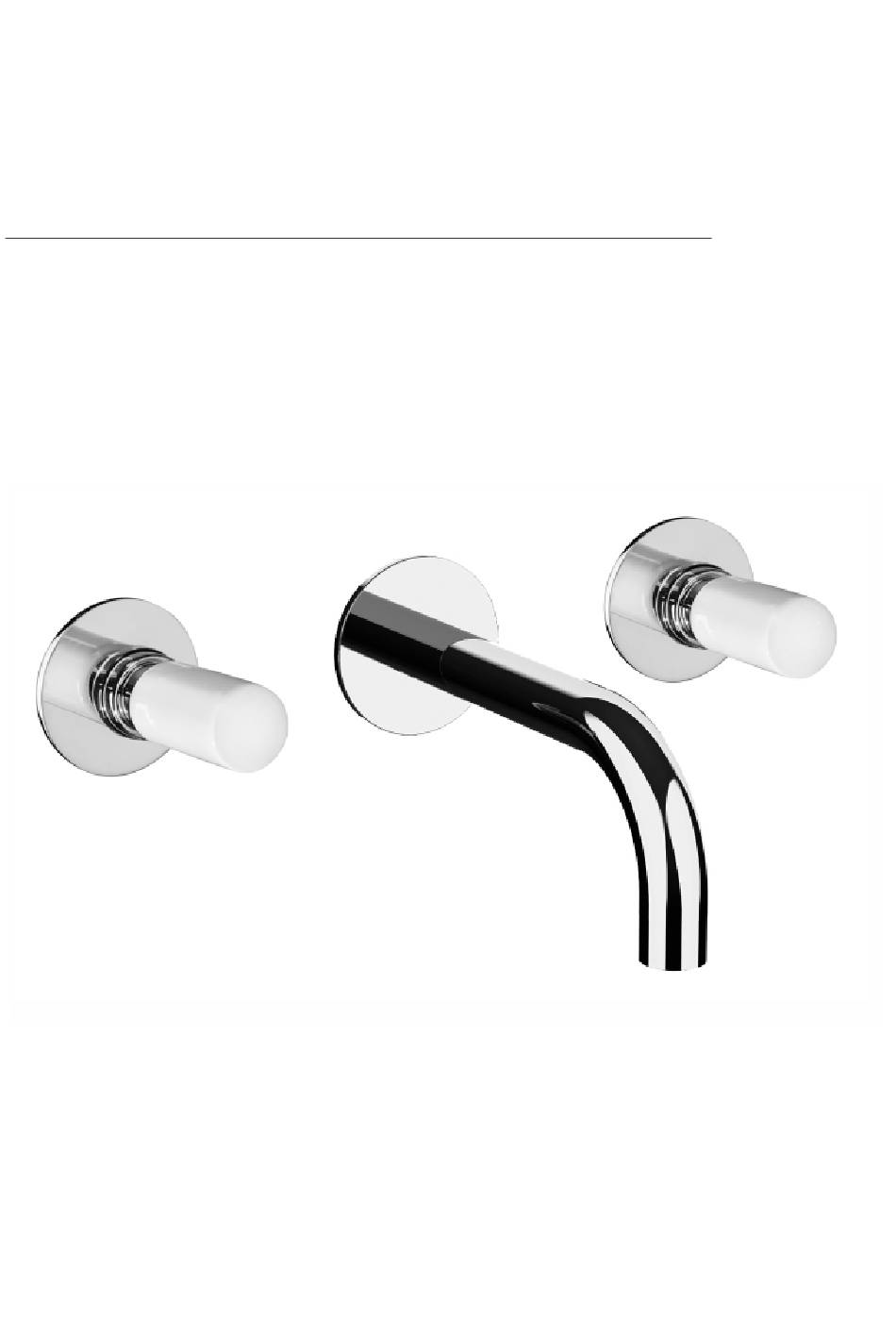

  • Page 1 BAGNODESIGN EXPERTLY CRAFTED BATHROOMS Installation Guide BDM-SES-309-X-XX SESTRIERE CONCEALED 3 HOLE BASIN MIXER A member of SANIPEXGROUP Please leave these instructions with the customer...
  • Page 3: Technical Specifications

    TECHNICAL SPECIFICATIONS Minimum hydraulic pressure: 0,5 bar Maximum hydraulic pressure: 10 bar Recommended working pressure: from 1 to 5 Tested pressure: 16 bar Temperature of inlet hot water: 80°C Suggested temperature (Energy sa-ving): 60°C Functioning automatic diverter: ≥ 0,5 bar (dynamic pressure) It is very important that hot and cold water temperature will be balanced as much as possible to grant the optimum performance of the mixer.
  • Page 4 SCHAFT INSTALLATION Fig. 1 Pierce a proper hole in the wall and fit the body (1) with the protection parts, be careful of the limits (MIN-MAX) onto the protection itself. Suggested the use of the spirit level for a proper alignment between the body (1) and the wall.
  • Page 5 Fig. 2 Fig. 3 Proceed with the plastering and the final covering always giving a look to the limits (MIN-MAX).
  • Page 6 Fig. 4 Unthread the protection parts (3).
  • Page 7 Fig. 5 Install the spout (4) with its base ring (5) toward the final covering and secure with the grub screw (6).
  • Page 8 Fig. 6 Finally fit the cup (7) with its washer (8) and screw the cap and the handle (9). Final installaton...
  • Page 9 CLEANING Use soft cloth, soapy solution and water for regular care.Wipe with a dry cloth. Avoid the use of abrasives or solvents, which damage the surface. Damage caused by inappropriate treatment by the user, is not covered by our guarantee.
  • Page 10 Note:...
  • Page 11 Note:...
  • Page 12 INM-SES-309-X-XX-02-21 D766B20158...
