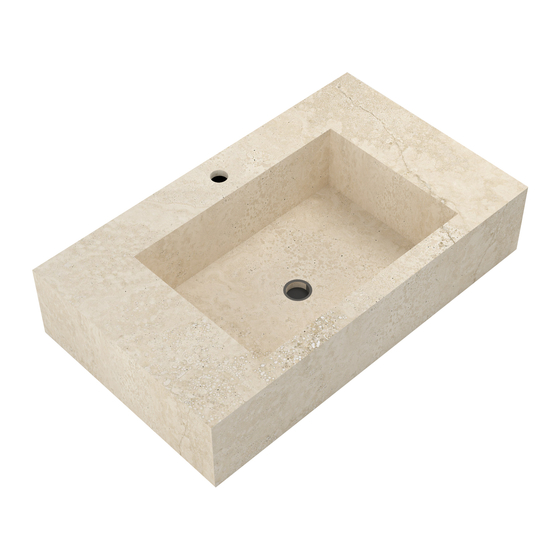

General Installation Guide
ALPINE
COUNTERTOP/
WALLMOUNTED
WASH BASIN
NOTE: for illustrative purposes only an 800mm wash basin is shown, please follow the same
procedure to install the other Alpine products. wider basins may require an additional bracket
A member of
SANIPEXGROUP
Please leave these instructions with the customer
