USER MANUAL

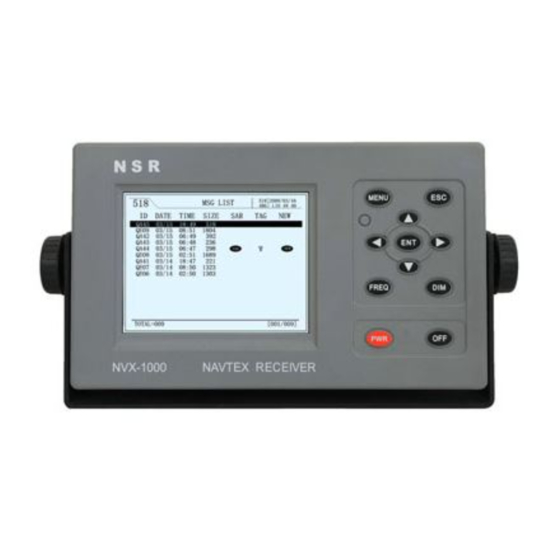

NAVTEX RECEIVER
NVX-1000
NVX-1000 UM.E 20190510-04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NVX-1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NSR Marine NVX-1000

Summary of Contents for NSR Marine NVX-1000

  • Page 1 USER MANUAL NAVTEX RECEIVER NVX-1000 NVX-1000 UM.E 20190510-04...
  • Page 2 NOTICE TO USERS Thanks for your purchasing this product NVX-1000 NAVTEX RECEIVER. The copyright of this manual is owned by the manufacturer, NEW SUNRISE CO., LTD. (NSR). Prior written permission is required for copying or reproducing the manual or part of the manual.
  • Page 3 Do not throw away the appliance with the normal household waste at the end of its operational life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment. NVX-1000 UM.E 20190510-04...
  • Page 4 MODIFY RECORD Modify by Date Paragraph Version Reason 2014/09/05 First edition NAVTEX station list update 2014/09/30 2018/06/12 Standards 2019/05/10 Meet IMO New Rule NVX-1000 UM.E 20190510-04...

  • Page 6: Table Of Contents

    1.4 NAVTEX STATION LIST ....................6 2. NVX-1000 CONFIGURATION .................... 11 2.1 NVX-1000 OUTLINE ......................11 2.2 CONFIGURATION OF NVX-1000 ................... 11 2.3 SUPPLY SCOPE OF NVX-1000 ..................12 3. NVX-1000 SPECIFICATIONS ....................13 3.1 SOFTWARE CHARACTERISTICS................... 13 3.2 HARDWARE SPECIFICATIONS ..................13 4.
  • Page 7 5.1 ANTENNA ..........................32 5.2 MAIN UNIT ......................... 32 5.3 EXTERNAL ALARM ......................32 5.4 POWER SUPPLY CONNECTION ..................32 5.5 PRINTER CONNECTION ....................34 5.6 DIGITAL INTERFACE ....................... 35 APPEDIX ALARM SOLUTION .................... 36 APPEDIX DRAWING ......................37 NVX-1000 UM.E 20190510-04...

  • Page 8: Navtex System

    NVX-1000 USER MANUAL 1. NAVTEX SYSTEM 1.1 NAVTEX introduction NAVTEX provides shipping with navigational and meteorological warnings and urgent information by automatic display and/or print out from a dedicated receiver. NAVTEX is a component of the IMO/IHO World-Wide Navigational Warning Service (WWNWS) defined by IMO Assembly resolution A.706(17), as amended, and the WMO Manual on Marine...
  • Page 9 NVX-1000 USER MANUAL Coastguard Buoyage authority [Figure 1-1] NAVTEX concept Electronic Navaids Ice monitoring Offshore operations Meteorological Initial Government departments offices Distress Ship reports message NAVAREA co-ordination National co-ordinators Meteordogical Navigational warning message co-ordinator co-ordinator co-ordinator NAVTEX co-ordinator Transmitter [Figure 1-1] Basic concept of the NAVTEX system...
  • Page 10 NVX-1000 USER MANUAL [Figure 1-2] NAVAREA of the WWNWS NVX-1000 UM.E 20190510-04...

  • Page 11: Navtex Message Format

    NVX-1000 USER MANUAL 1.3 NAVTEX message format For automatic identification of messages, each message starts with nine control characters, called “Header codes”. The first five characters are always “ZCZC” and common to all messages. This part is used for message synchronization. The latter four characters are designed as B1, B2, B3 and B4 to indicate origin, category and serial number of the message.
  • Page 12 NVX-1000 USER MANUAL Table 1-1 The message type table Message Type (B2) Subject Navigational Warnings Meteorological Warnings Ice Reports Search and Rescue information and pirate attack warnings Meteorological Forecasts Pilot service Messages DECCA Messages LORAN Messages OMEGA Messages SATNAV Messages...

  • Page 13: Navtex Station List

    NVX-1000 USER MANUAL 1.4 NAVTEX station list NVX-1000 UM.E 20190510-04...
  • Page 14 NVX-1000 USER MANUAL NVX-1000 UM.E 20190510-04...
  • Page 15 NVX-1000 USER MANUAL NVX-1000 UM.E 20190510-04...
  • Page 16 NVX-1000 USER MANUAL NVX-1000 UM.E 20190510-04...
  • Page 17 NVX-1000 USER MANUAL NVX-1000 UM.E 20190510-04...

  • Page 18: Nvx-1000 Configuration

    - IEC: 61097-6 [2012] - IEC: 611620-1 Ed.2[2000] 2.2 Configuration of NVX-1000 NVX-1000 system consists of the main unit, antenna amplifier and whip antenna, power supply unit (Option), etc. See [Figure 2-1]. [Figure 2-1] System configuration of NAVTEX receiver NVX-1000 UM.E 20190510-04...

  • Page 19: Supply Scope Of Nvx-1000

    NVX-1000 USER MANUAL 2.3 Supply scope of NVX-1000 Table 2-1 Supply scope of NVX-1000 Standard Supply Scope Name Quantity Description NVX-1000 Main Unit NVX-1070F/Antenna 20 meters RG58 cable, TNC connector Amplifier NXA100/NXA200 Whip Antenna Installation materials Steel Tie Screws M5X20mm...

  • Page 20: Nvx-1000 Specifications

    NVX-1000 will not store messages if the received character error rate > 33%. 3.1.7 Alarms The receipt of search and rescue information (B2 = D) will give an alarm from NVX-1000. It is only be possible to reset this alarm manually.
  • Page 21 NVX-1000 USER MANUAL 1）RF receiving part • Receiving Frequencies： 518kHz, 490kHz / 4209.5kHz, Two channels at the same time to receive • Sensitivity： Better than -107dBm • Selectivity： ≧300Hz （6dB bandwidth） ≦2kHz （60dB bandwidth） • Leakage emission： ≦4nW （50Ω DUMMY antenna）...

  • Page 22: How To Operate

    4. HOW TO OPERATE 4.1 Outline 1）The Outline of main unit - Front View - - Rear View - [Figure 4-1] The outline of NVX-1000 main unit 2）The default screen and control keys The frequency of the current list Menu Title Receiving State...

  • Page 23: 3）Control Keys

    [Figure 4-4] Boot screen Then, go to [MSG List] window, the default screen. [Figure 4-5] MSG list of default screen When the power is turned on, it will show the message list of messages stored in NVX-1000. If it’s NVX-1000 UM.E 20190510-04...

  • Page 24: 2）Menu Structure

    NVX-1000 USER MANUAL the first time to power on or the power has been switched off more than 72 hours, no messages will appear in the list except those locked before. Hold down the OFF key 3 seconds to power off.

  • Page 25: 3）Operations Of Control Key

    NVX-1000 USER MANUAL [Figure 4-6] Menu structure If the MENU key is pressed in the default screen, the following screen will be displayed so that you can select the six items in the [MAIN MENU]. Use the  or  key to locate an item you want. Press the ENT key to execute the function of the item.

  • Page 26: Message Operation

    NVX-1000 USER MANUAL 4.3 Message operation 1）Message list NVX-1000 receives the maritime safety information on 518kHz, international NAVTEX frequency and 490kHz, 4209.5kHz, national NAVTEX frequencies. When a message is received and stored, a message line will be added into the message list.

  • Page 27: 4）Print Messages

    [MSG VIEW] screen. [Figure4-11] TAG and UNTAG a message 4）Print messages In NVX-1000, you can print the messages in two ways: - Automatic printing In the [STATION SETTING] and [MESSAGE SETTING] menu, you can choose D and D define specific messages to be automatically printed out while a printer is connected.

  • Page 28: Control Menu Setting

    NVX-1000 USER MANUAL In addition to printing the message which is being browsed, NVX-1000 also offers [ADVANCED PRINT] features, including: - MSGS ON CURRENT FREQ - MSGS FROM CURRENT STATION - MSGS OF CURRENT TYPE - ALL MSGS - DATA OUT All the messages to be printed should be those messages which have been received and stored in the memory.

  • Page 29: 2）Message Setting

    Select [2.MESSAGE SETTING] item at [MAIN MENU]. Press the ENT key to enter the following screen. In the message type, A/B/D/L can not be rejected. It’s compulsory for NVX-1000 to store A/B/D/L messages. On each frequency, a message type ID can be set for saving rejection, automatic printing and output to INS.

  • Page 30: 3）System Setting

    [MAIN MENU]. Press the ENT key to enter above screen. [Figure4-15] System setting screen ① A/B/L MESSAGE ALARM When NVX-1000 receives certain messages, the built-in alarm buzzer will sound. Those messages include: - A: Navigational Warnings - B: Meteorological Warning...
  • Page 31 [ON] and [OFF]. ② GENERAL MESSAGE ALARM When NVX-1000 receives general messages, the built-in alarm buzzer can also sound in a different tone from A/B/L messages. Such alarm can be suppressed by setting. Select [2. GENERAL MESSAGE ALARM] item at the [3. SYSTEM SETTING] menu. Press the ENT key to select between [ON] and [OFF].

  • Page 32: 4）Diagnostics

    NVX-1000 USER MANUAL ⑨ DATE/TIME SETTING The date/time can be manually adjusted or automatically updated while connected to external GPS receiver. Select [9.DATE / TIME SETTING] item at the [3.SYSTEM SETTING], then press ENT key to enter the right screen.
  • Page 33 NVX-1000 USER MANUAL [Figure4-18] Diagnostics menu Select [4.DIAGNOSTICS] item at the [MAIN MENU]. Press the ENT key to enter the above screen. ① PROGRAM VERSION Select [1.PROGRAM VERSION] item at the [4.DIAGNOSTICS] menu. Press the ENT key to enter the right screen.
  • Page 34 NVX-1000 USER MANUAL ③ KEY TEST All keys can be tested , except the OFF and PWR key. Select [3.KEY TEST] item [4.DIAGNOSTICS] menu. Press the ENT key to start the test. When the key test begins, the screen of [KEY TEST] appears as below.
  • Page 35 NVX-1000 USER MANUAL ⑤ PRINTING TEST External printer is to be connected before this test function is carried out. Select [5.PRINTING TEST] item at the [4.DIAGNOSTICS] menu. Press the ENT key to start the test. When the printing test begins, the screen of [PRINTING TEST] appears as below.

  • Page 36: 5）Advanced Print

    NVX-1000 USER MANUAL [Figure4-25] Receiver test result screen ⑦ ALARM STATE It’s to check those alarms not confirmed yet. [Figure4-26] Alarm state screen 5）Advanced print Select [5.ADVANCED PRINT] item at the [MAIN MENU]. Press the ENT key to enter the above screen.
  • Page 37 NVX-1000 USER MANUAL [ALL MESSAGES] It’s to print all messages stored in the memory. [Figure4-28] Printing all messages [ MSGS SORTED BY FREQUENCY] It’s to printing all messages stored on the current frequency. Press the ENT key to confirm the printing.
  • Page 38 NVX-1000 USER MANUAL [MSGS SORTED BY TYPE ID] It’s to print the messages by types. See [Figure4-13] Use the   key to select the  key to frequency and the select message types. [CALC] item is to calculate the number of messages saved and selected.

  • Page 39: Installation

    5.2 Main Unit NVX-1000 could be mounted on the table, on the wall, the bulkhead using the bracket supplied. For flush-type mount, refer to cutting drawing in this manual. Select proper place to install the receiver to avoid sea water and don’t be exposed to direct sunlight.
  • Page 40 NVX-1000 USER MANUAL [Figure 5-1] Connection wiring diagram NVX-1000 UM.E 20190510-04...

  • Page 41: Printer Connection

    NVX-1000 USER MANUAL 5.5 Printer connection As an optional device, NPT-100 is recommended as the printer used for NVX-1000. - Model No. : NPT-100 - Rating : DC6.5V 15W NPT-100 plug （RS232，9 pins） NVX-1000 Description Pin No. Pin No. Description PRINTER （+）...

  • Page 42: Digital Interface

    NVX-1000, the acceptable rate includes 4800, 9600, 19200, 38400, 57600, 115200 bps. The default rate for NVX-1000 is 4800bps. If other rate except 4800bps is set for the printer, NVX-1000 has to be set for the same rate in [SERVICE] menu.

  • Page 43: Appedix Alarm Solution

    NVX-1000 USER MANUAL APPEDIX ALARM SOLUTION ALARM SOLUTION Navigation alarm NAVTEX MESSAGE notification, non-product failure, no need to dispose NAVTEX MESSAGE notification, Weather warning non-product failure, no need to dispose Search and rescue alarm NAVTEX MESSAGE notification, non-product failure, no need to dispose...

  • Page 44: Appedix Drawing

    NVX-1000 USER MANUAL APPEDIX DRAWING NVX-1000 UM.E 20190510-04...
  • Page 52 Copyright by NEW SUNRISE CO., LTD. (NSR) www.nsrmarine.com info@nsrmarine.com May, 2019...
