USER MANUAL
NAVTEX RECEIVER
NVX-3000
NVX-3000 UM.E 20190506-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NVX-3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NSR Marine NVX-3000

Summary of Contents for NSR Marine NVX-3000

  • Page 1 USER MANUAL NAVTEX RECEIVER NVX-3000 NVX-3000 UM.E 20190506-01...
  • Page 2 NOTICE TO USERS Thanks for your purchasing this product NVX-3000 NAVTEX RECEIVER. The copyright of this manual is owned by the manufacturer, NEW SUNRISE CO., LTD. (NSR). Prior written permission is required for copying or reproducing the manual or part of the manual.
  • Page 3 Do not throw away the appliance with the normal household waste at the end of its opera- tional life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment. NVX-3000 UM.E 20190506-01...
  • Page 4 MODIFY RECORD Modify by Date Paragraph Version Reason 2019/05/06 First edition NVX-3000 UM.E 20190506-01...

  • Page 5: Table Of Contents

    HE DEFAULT SCREEN AND CONTROL KEYS 4.1.4 M ENU STRUCTURE 4.2 M ESSAGE OPERATION 4.2.1 M ESSAGE LIST 4.2.2 M ESSAGE VIEW 4.2.3 M ESSAGE TAG 4.2.4 M ESSAGE PRINT 4.2.5 M ESSAGE TO 4.3 M ENU SETTING NVX-3000 UM.E 20190506-01...
  • Page 6 4.3.5 D IAGNOSTICS 4.3.6 S ERVICE 5. INSTALLATION 5.1 A NTENNA 5.2 M 5.3 E XTERNAL ALARM 5.4 P OWER SUPPLY CONNECTION 5.5 P RINTER CONNECTION 5.6 D IGITAL INTERFACE APPEDIX ALARM SOLUTION APPEDIX DIGITAL INTERFACE APPEDIX DRAWING NVX-3000 UM.E 20190506-01...

  • Page 7: Navtex System

    NVX-3000 USER MANUAL 1. NAVTEX SYSTEM 1.1 NAVTEX introduction NAVTEX provides shipping with navigational and meteorological warnings and urgent information by automatic display and/or print out from a dedicated receiver. NAVTEX is a component of the IMO/IHO World-Wide Navigational Warning Service (WWNWS) de- fined by IMO Assembly resolution A.706(17), as amended, and the WMO Manual on Marine Mete-...

  • Page 8: Navtex Principle

    NVX-3000 USER MANUAL 1.2 NAVTEX principle For navigation purposes, the world is divided into 16 areas as shown in the figure below. Each NAVTEX station has an identification code, from the A to Z. The frequency assigned to NAVTEX are 518 kHz , 490 kHz and 4209.5 kHz, and many stations exist in the same service coverage.
  • Page 9 NVX-3000 USER MANUAL [Figure 1-2] NAVAREA of the WWNWS NVX-3000 UM.E 20190506-01...

  • Page 10: Navtex Message Format

    NVX-3000 USER MANUAL 1.3 NAVTEX message format For automatic identification of NAVTEX messages, each message has its ID No which is identified as B1, B2, B3 and B4 to indicate origin, category and serial number of the message. Character B1 is the identification letter of the NAVTEX station “A” to “Z”.

  • Page 11: Navtex Station List

    NVX-3000 USER MANUAL 1.4 NAVTEX station list NVX-3000 UM.E 20190506-01...
  • Page 12 NVX-3000 USER MANUAL NVX-3000 UM.E 20190506-01...
  • Page 13 NVX-3000 USER MANUAL NVX-3000 UM.E 20190506-01...
  • Page 14 NVX-3000 USER MANUAL NVX-3000 UM.E 20190506-01...

  • Page 15: Configuration

    - IEC: 61162 series - IEC: 61097-6 [2012] - IEC: 611620 serial 2.2 Configuration NVX-3000 system consists of the main unit, antenna amplifier and whip antenna, power supply unit (Option), etc. [Figure 2-1] System configuration of NAVTEX receiver NVX-3000 UM.E 20190506-01...

  • Page 16: Supply Scope

    NVX-3000 USER MANUAL 2.3 Supply scope Table 2-1 Supply scope of NVX-3000 Standard Supply Scope Description Name Quantity NVX-3000 Main Unit NVX-1070F/Antenna Ampli- 20 meters RG58 cable, TNC connector fier NVA100//Whip Antenna Installation materials Steel Tie Screws M5X20mm Rubber Tape...

  • Page 17: Specifications

    NVX-3000 will not store messages if the received character error rate > 33%. 3.1.7 Alarms The receipt of search and rescue information (B2 = D) will give an alarm from NVX-3000. It is only be possible to reset this alarm manually.

  • Page 18: Hardware Specifications

    NVX-3000 USER MANUAL 3.2 Hardware Specifications 1）RF receiving part • Receiving Frequencies： 518kHz, 490kHz & 4209.5kHz, Two channels at the same time to receive • Sensitivity： Better than -107dBm • Selectivity： ≧300Hz （6dB bandwidth） ≦2kHz （60dB bandwidth） • Leakage emission：...

  • Page 19: How To Operate

    [Figure 4-1] NVX-3000 can operated by touch-screen or key & knob on panel. 4.1.2 Power On / Off By pressing PWR key to switch on the NVX-3000 receiver. The start-up window [MSG LIST] will appear on the screen. [Figure 4-2] If it’s the first time to power on or the power has been switched off more than 72 hours, no messages...

  • Page 20: The Default Screen And Control Keys

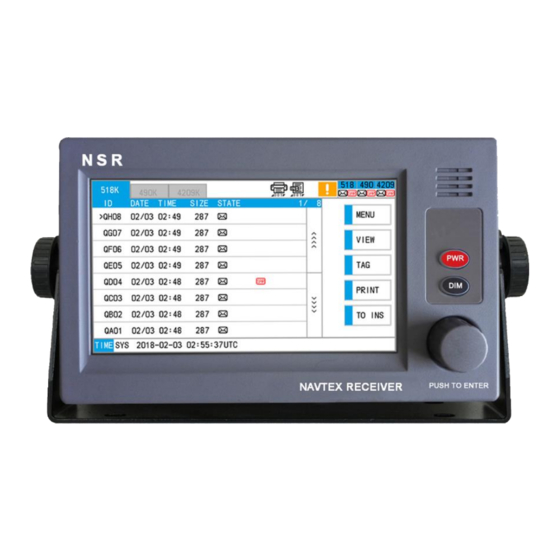

    NVX-3000 USER MANUAL 4.1.3 The default screen and control keys The default display is [MSG List], as below. ② ③ ④ ⑤ ⑥ ⑦ ① ⑧ ⑪ ⑭ ⑮ ⑫ ⑯ ⑨ ⑰ ⑬ ⑱ ⑩ [Figure 4-3] ① 518K NAVTEX receiving frequency ②...

  • Page 21: Main Menu Structure

    NVX-3000 USER MANUAL sequence number / Message quantity ⑪ Page up ⑫ Page down ⑬ To [MAIN MENU] ⑭ MENU To [MSG VIEW] ⑮ VIEW To tag the selected message ⑯ To print the selected message ⑰ PRING TO INS To INS the selected message ⑱...
  • Page 22 NVX-3000 USER MANUAL STATION SETTING MESSAGE PRINT SETTING ADVANCED TASK FUNCTION FREQUENCY SYSTEM BUZZER PORT SET SYSTEM SETTING DATE/TIME SET LANGUAGE MAIN MENU PRINTER SET DISPLAY PROGRAM VERSION HARDWARE TEST DIAGNOSTICS RECEIVER TEST ALARM LIST Menu Structure COM MONITOR ADVANCED...

  • Page 23: Message Operation

    4.2 Message operation 4.2.1 Message list NVX-3000 receives the maritime safety information on 518kHz, international NAVTEX frequency 490kHz and 4209.5kHz, national NAVTEX frequencies. When a message is received and stored, a message line will be added into the message list.

  • Page 24: Message Print

    NVX-3000 USER MANUAL a message permanently. click the TAG again to release the lock of message. In NVX-3000, after 72 hours since a message was received (including the shutdown time), the mes- sage will be automatically deleted. Even within 72 hours, the message will also be deleted if the total memory is overloaded, maximum 200 messages for a single frequency.

  • Page 25: Main Menu Setting

    NVX-3000 USER MANUAL 4.3 Main Menu setting Main Menu From the default screen [MSG List], click the MENU, [ ] will be displayed. There are six function items in the [MAIN MENU]. [Figure4-8] the default screen [MSG List] 4.3.1 Station Setting It’s to select certain stations to reject the messages broadcasted.

  • Page 26: Message Setting

    By clicking to select or cancel the character, when the character turn grey and the bottom change from [ON] to [OFF], it means the setting is completed. In the message type, A/B/D/L can not be rejected. It’s compulsory for NVX-3000 to store A/B/D/L messages.

  • Page 27: Advanced Function

    NVX-3000 USER MANUAL The default setting is like that all message types are not rejected to store while all automatic printing and output to INS are disabled. 4.3.3 Advanced function Click [ADVANCED FUNCTION] at [MAIN MENU] to enter the following screen.
  • Page 28 NVX-3000 USER MANUAL [Figure4-15] Click PRINT, CONFIRM window will appear, select it. [Figure4-16] Click TASK to enter, it is to display all the PRINT and TO INS task list. [Figure4-17] NVX-3000 UM.E 20190506-01...

  • Page 29: System Setting

    NVX-3000 USER MANUAL Click LOG to enter, it is to display NAVTEX LOG. [Figure4-18] 4.3.4 System Setting NVX-3000 contains six system setting items as follows: The CH2 FREQUENCY 490 is to display CH2 frequency, it cannot set. [Figure4-19] NVX-3000 UM.E 20190506-01...
  • Page 30 NVX-3000 USER MANUAL A/B/L MESSAGE ON/OFF ALARM NEW MESSAGE ON/OFF SYSTEM BUZZER SYSTEM ALARM ON/OFF KEY BZER ON/OFF 4800/9600/19200/ INS PORT 38400/115200 PORT SET 4800/9600/19200/ GPS PORT 38400/115200 MODE UTC/LMT DATE-UTC INPUT DATE/TIME SET TIME-UTC INPUT ZONE INPUT LANGUAGE ENG/中文...

  • Page 31: Diagnostics

    11 INS PORT 4800/96//38400/115200 12 GPS PORT 4800/96//38400/115200 13 MESSAGE FONT LARGE/SMALL 14 LCD/KEY DIMMER 1-13 15 TIME DISPLAY MODE UTC/LMT 16 TIME DATE 17 TIME ZONE 4.3.5 Diagnostics NVX-3000 diagnostics include 5 items as follows: [Figure4-21] NVX-3000 UM.E 20190506-01...
  • Page 32 NVX-3000 USER MANUAL 4.3.5.1 PROGRAM VERSION Click [PROGRAM VERSION] to enter the following view. [Figure4-22] 4.3.5.2 HARDWARE TEST Click [HARDWARE TEST] to enter the following view. [Figure4-23] ➢ LCD TEST LCD TEST is designed to test whether the LCD is working or not.
  • Page 33 NVX-3000 USER MANUAL [Figure4-24] ➢ BUZZER&ALARM TEST BUZZER&ALARM TEST is designed to test whether the buzzer is working or not. Built-in buzzer will sound when new message is received or an alarm is occurred. Click [BUZZER&ALARM TEST] to enter the following view.
  • Page 34 NVX-3000 USER MANUAL [Figure4-26] ➢ MEMORY TEST [MEMORY TEST]is designed to test whether the memory is working or not. Click [MEMORY TEST] to enter the following view. when the STATE column appear OK, it means the memory is good. [Figure4-27] 4.3.5.3 RECEIVER TEST...
  • Page 35 NVX-3000 USER MANUAL [Figure4-28] 4.3.5.4 ALARM LIST Click [ALARM LIST] to enter the following view. [ALARM LIST] is to to check alarms In the [ALARM LIST], there is three sub item: to view the alarm, acknowledge and check the log.

  • Page 36: Service

    NVX-3000 USER MANUAL [Figure4-31] 4.3.5.5 COM MONITOR Click [COM MONITOR] to enter the following view. It’s to check the sentence from INS and NMEA [Figure4-32] 4.3.6 Service Click SERVICE item at [MAIN MENU].input the password to enter the [SERVICE] screen [Figure4-33] NVX-3000 UM.E 20190506-01...
  • Page 37 NVX-3000 USER MANUAL [Figure4-34] ADVANCED MENU LOCK-ENG B-SIGNAL Y-SIGNAL RF SIGNAL TEST DOT PATTERN PHASING SEQUENCE SYSTEM SETTING MESSAGE 518K FACTROY SET MESSAGE 490K REBOOT MESSAGE 4209K MESSAGE ALL [Figure4-35] NVX-3000 UM.E 20190506-01...

  • Page 38: Installation

    5.2 Main Unit NVX-3000 could be mounted on the table, on the wall, the bulkhead using the bracket supplied. For flush-type mount, refer to cutting drawing in this manual. Select proper place to install the receiver to avoid sea water and don’t be exposed to direct sunlight.

  • Page 39: Printer Connection

    NVX-3000 USER MANUAL [Figure 5-1] Connection wiring diagram 5.5 Printer connection As an optional device, NPT-100 is recommended as the printer used for NVX-3000. - Model No. : NPT-100 - Rating : DC6.5V 15W NVX-3000 NPT-100 plug （RS232，9 pins） Description Pin No.

  • Page 40: Digital Interface

    3000, the acceptable rate includes 4800, 9600, 19200, 38400, 57600, 115200 bps. The default rate for NVX-3000 is 4800bps. If other rate except 4800bps is set for the printer, NVX-3000 has to be set for the same rate in [SERVICE] menu.

  • Page 41: Appedix Alarm Solution

    NVX-3000 USER MANUAL APPEDIX ALARM SOLUTION ALARM SOLUTION Navigation alarm NAVTEX MESSAGE notification, non-product fail- ure, no need to dispose Weather warning NAVTEX MESSAGE notification, non-product fail- ure, no need to dispose Search and rescue alarm NAVTEX MESSAGE notification, non-product fail-...

  • Page 42: Appedix Digital Interface

    NVX-3000 USER MANUAL APPEDIX DIGITAL INTERFACE Input sentences of NMEA IN port : ZDA, RMC Input sentences of INS port : NRM, CQR, ACK, ACN Output sentences of INS port : ALR, NRX, NRM, ACN, ACK, ALF, ALC, ARC, HBT...

  • Page 43: Appedix Drawing

    NVX-3000 USER MANUAL APPEDIX DRAWING NVX-3000 UM.E 20190506-01...
