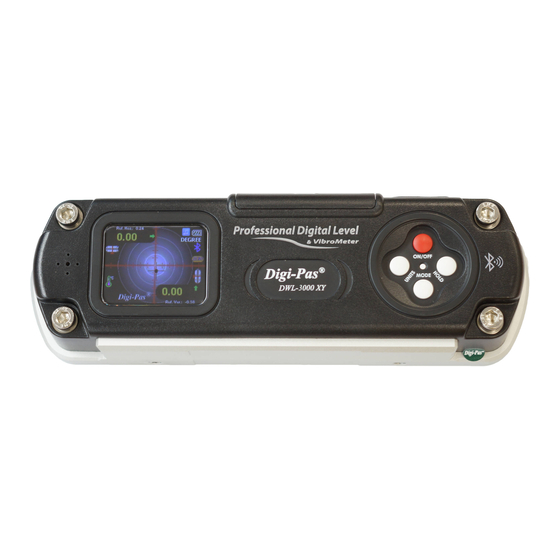

- Page 1 Digi-Pas ® Installation and Operation Guidelines for DWL3000XY and DWL3500XY 2-Axis High Precision Digital Machinist Level www.digipas.com version 1.11 Note: Contents in this instruction manual are continuously updated, please check Digi-Pas website for the latest version.
- Page 2 Digi-Pas DWL-3000XY & DWL-3500XY Instruction Manual ® www.digipas.com INTELLECTUAL PROPERTY This manual contains propriety information, which is protected by copyrights. All rights are reserved. No part of this manual may be photocopied, reproduced, redistributed, or translated to another language without the prior written consent of Digipas Technologies Inc.
-
Page 3: Table Of Contents
Digi-Pas DWL-3000XY & DWL-3500XY Instruction Manual ® www.digipas.com CONTENTS 1. DEVICE OVERVIEW ........................1 1.1. Technical Specification ..................... 1 1.2. Device Overview ....................... 2 1.3. LCD Display Overview ....................... 2 1.4. List of items ...........................5 2. OPERATION PROCEDURE ......................6 2.1. Initialization ..........................6 2.2. -
Page 4: Device Overview
Professional Edition (Optional) Vibrometer 2.0g User Self Calibration Table 1. Technical specification of DWL3000XY & DWL3500XY Notes: Product specification and appearance are subject to change for product improvement without prior notice. *Alternative power can be obtained from External USB Power Source. -
Page 5: Device Overview
Digi-Pas DWL-3000XY & DWL-3500XY Instruction Manual ® www.digipas.com 1.2. Device Overview Figure 1. Overview of the Machinist Level Buzzer sound alert MODE: LCD Colour graphic digital display CAL / Activate calibration mode Battery Compartment of 4 x “AAA” size 1.5V batteries... - Page 6 Battery Level Vertical (Y) Axis Digital Reading 1.3.3. Dual Axis Mode Figure 4. Main menu display DWL3000XY & DWL3500XY Bluetooth version 1.3.4. Main Menu Icon Features ABSOLUTE LEVEL Enable user to ensure each measurement reading is in accordance with the maximum device accuracy specified.
- Page 7 Digi-Pas DWL-3000XY & DWL-3500XY Instruction Manual ® www.digipas.com ALTERNATE ZERO Enable user to measure relative angles at a common plane with respect to a reference angle. Set any angle to 0.00 as a reference. ° SETTING MENU Enable user to modify various parameters of the device.
-
Page 8: List Of Items
Digi-Pas DWL-3000XY & DWL-3500XY Instruction Manual ® www.digipas.com 1.4. List of Items Item No. Description Quantity DWL 3000XY Precision Digital Level 1 Unit Certificate of calibration 1 Set AAA batteries 4 Pcs USB 2.0 cable (3 Meters) 1 Pc Quick Guide... - Page 9 Digi-Pas DWL-3000XY & DWL-3500XY Instruction Manual ® www.digipas.com Figure 5. Power source of the device 2. Initial Setup screen pops up. Press ON/OFF button to scroll up or MODE button to scroll down for selecting ‘’Default Units’’. For DWL-3500XY it is required to select ‘’Cur- rent Device Location’’, Select the nearest option when your location is not avail-...
-
Page 10: Mounting Device On Fixture Or Work Piece
Digi-Pas DWL-3000XY & DWL-3500XY Instruction Manual ® www.digipas.com 2.2. Mounting Device On Fixture or Work Piece 1. The two threaded holes are provided for mounting the device onto user-defined fixtures/machinery. Figure 7. M5 screw location for mounting 2. To mount the device onto user’s defined fixture or work piece. Remove both the set screw (M5), then replace with appropriate type of screws specified by user. -
Page 11: Alternate Zero Mode
Digi-Pas DWL-3000XY & DWL-3500XY Instruction Manual ® www.digipas.com Figure 8. Absolute level setting position 1 display 2. Turn the device 180° and press MODE button again to start the measurement. Figure 9. Absolute level setting position 2 display 3. Turn the device 180° and press MODE button again to start the measurement. - Page 12 Digi-Pas DWL-3000XY & DWL-3500XY Instruction Manual ® www.digipas.com Figure 11. Alternate zero mode display Single Axis Position : The logo is shown to indicate that the device is in Alternate Zero mode. A reference line is displayed to indicate the angle.
- Page 13 Digi-Pas DWL-3000XY & DWL-3500XY Instruction Manual ® www.digipas.com 2.6. SYNC Menu Mode 14. The status bar indicates current selected mode as Bluetooth then press “MODE” but- ton. To change to USB mode, scroll the ‘Left’ button. Bluetooth only available on Bluetooth version device.
-
Page 14: Angle Meter Mode
Digi-Pas DWL-3000XY & DWL-3500XY Instruction Manual ® www.digipas.com 2.7. Angle Meter Mode Place the digital level on the surface to be measured. Please ensure the contact surfaces of the device and measuring plane are clean and free from dust particles. -
Page 15: Vibro Meter Mode
Digi-Pas DWL-3000XY & DWL-3500XY Instruction Manual ® www.digipas.com 2.8. Vibro Meter Mode Place the device on the surface to be measured. Press Auto Set button to set the line graph to the centre of display. Please ensure the contact surfaces of the device and measuring plane are clean and free from dust particles. -
Page 16: Setting Menu
Digi-Pas DWL-3000XY & DWL-3500XY Instruction Manual ® www.digipas.com 2.9. Setting Menu Figure 23. Setting menu display DWL3000XY & DWL3500XY Menu Description Auto Off To set automatic power off according to user defined time period. Auto Dim To set automatic dim according to user defined time period. -
Page 17: Warranty
5. WARRANTY Digi-Pas® 2-Axis High Precision Digital level is warranted to the original purchaser to be free from defects in workmanship and material. JSB Tech will, at its option, repair or re- place any defective part which may malfunction under normal and proper use within a period of 2 (two) years from the date of purchase. - Page 18 DWL-3000XY & DWL-3500XY Instruction Manual ® www.digipas.com APPENDIX : USER CALIBRATION Calibration Instruments: Master Square Granite Table DWL3000XY DWL3500XY Granite Table Grade AA (Levelled to ≤10 arcsec) Grade AA (Levelled to ≤1.0 arcsec) Master Square Flatness : ≤ 2.0μm Not Required Perpendicularity: ≤...
- Page 19 Digi-Pas DWL-3000XY & DWL-3500XY Instruction Manual ® www.digipas.com Calibration Procedure: For DWL-3500XY model you only need to perfrom step 1 to step 4. Calibration tutorial video available on Digipas website, please visit the following link: https://www.digipas.com/support/video.php 1. Power off the device. Press and hold the CAL button while concurrently press the ON/OFF button to get into calibration mode.
- Page 20 Digi-Pas DWL-3000XY & DWL-3500XY Instruction Manual ® www.digipas.com 5. Rotate the device 180° as shown Position 5. Hold the device firmly and do not move the device during each count down period. Press the MODE button again to start the calibration and wait until the countdown reach “0”, the LCD screen displays...
- Page 21 Bluetooth mobile connectivity for various Digi-Pas® 2-Axis High Precision Digital Levelling Devices to gain high productivity and quality alignment work. This app has a FREE version (Digi-Pas Level) and a PAID version (Digi-Pas Level PAID). It instantly empowers machine installer to perform remote 2-Axis simultaneous levelling task, angle measurement, &...
