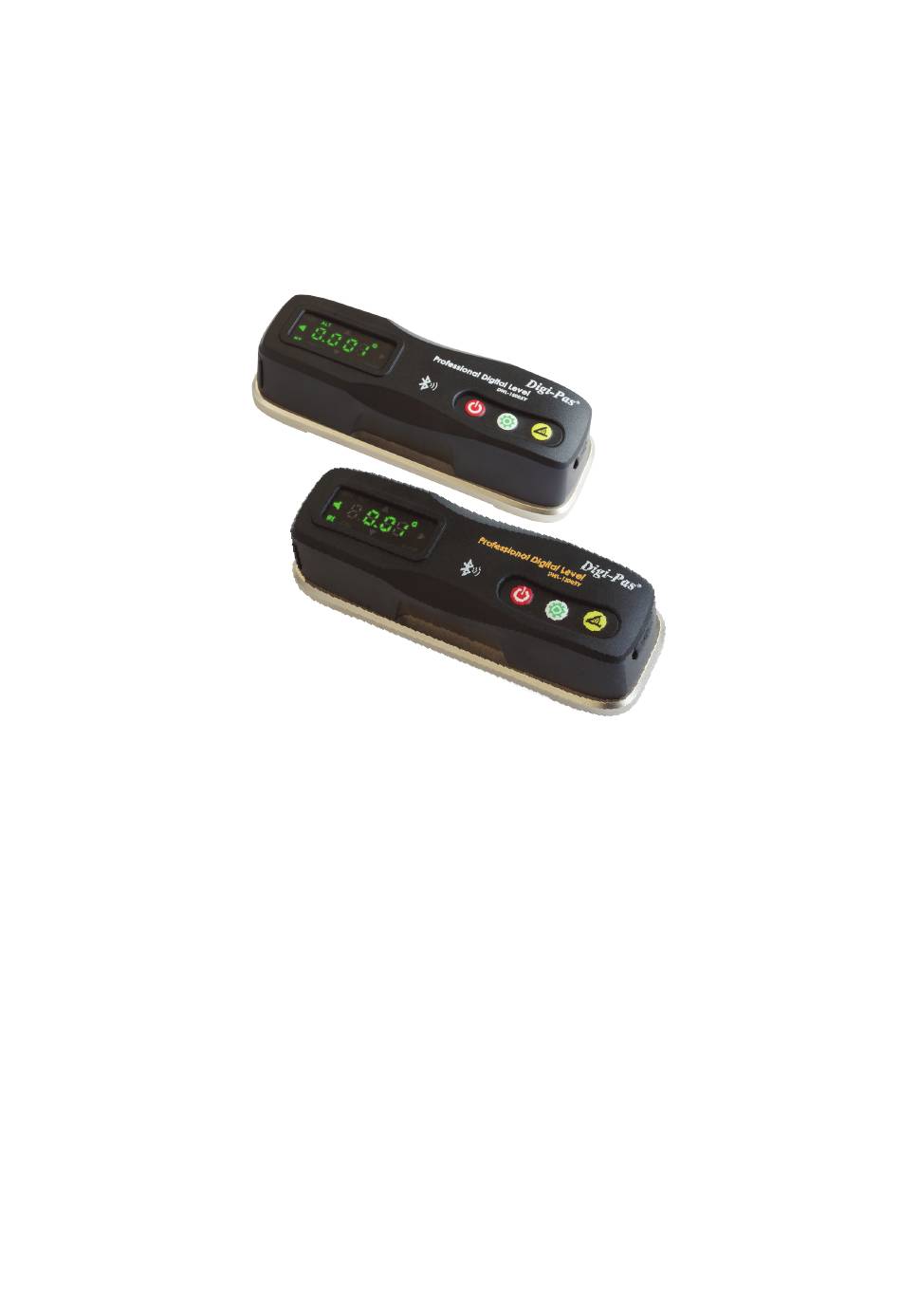

- Page 1 Digi-Pas ® USER MANUAL 2-Axis Precision Digital Machinist Level Model: DWL-1300XY & DWL1500XY www.digipas.com version 1.0 Note: Contents in this instruction manual is continuously updated, please check Digi-Pas website for latest version.
- Page 2 Digi-Pas DWL-1300XY & DWL-1500XY Instruction Manual ® www.digipas.com INTELLECTUAL PROPERTY This manual contains propriety information, which is protected by copyrights. All rights are reserved. No part of this manual may be photocopied, reproduced, redistributed or trans- lated to another language without the prior written consent of JSB TECH Company.
-
Page 3: Table Of Contents
Digi-Pas DWL-1300XY & DWL-1500XY Instruction Manual ® www.digipas.com CONTENTS 1. DEVICE OVERVIEW ........................1 1.1. Technical Specification ..................... 1 1.2. List of items ...........................3 2. OPERATION PROCEDURE ......................4 2.1. Initialization ..........................4 2.2. Switching Axis reading ......................4 2.3. Absolute Level mode ......................4 2.4. -
Page 4: Device Overview

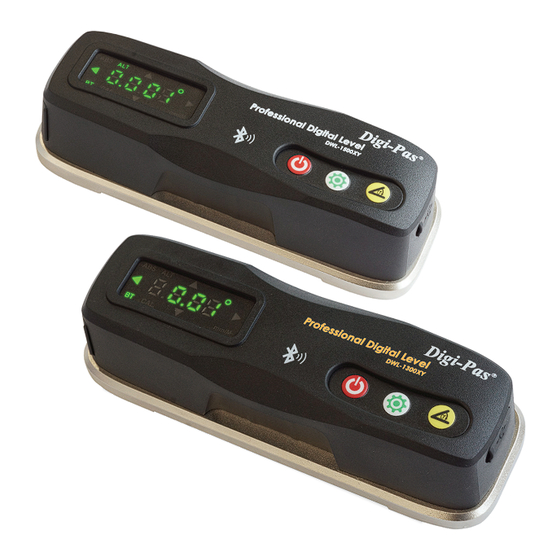

Digi-Pas DWL-1300XY & DWL-1500XY Instruction Manual ® www.digipas.com 1. DEVICE OVERVIEW 1.1. Technical Specification DWL-1300XY DWL-1500XY 0° ~ ±90.00° (Single-Axis) Measuring Range 0° ~ ±15.00° (Dual-Axis) Resolution 0.002”/ft. or 40-second or 0.01° 0.0002”/ft. or 5-second or 0.001° ±0.004”/ft. or ±0.02° from 0° ~ 0.5°... - Page 5 Digi-Pas DWL-1300XY & DWL-1500XY Instruction Manual ® www.digipas.com 1.2. Device Overview of machinist level Figure 1. Overview of the Machinist Level 1. USB Port for alternate power supply 6. Alternate Zero button: 2. Zinc Alloy base - Press for Alternate Zero mode 3.
-
Page 6: List Of Items
2. The blinking “BT” indicator means the device is haven’t been initialized. Users need to initialize the leveling instrument using the Digi-Pas® Machinist Level App from Google Play Store or Apple App Store through Bluetooth. The guide on how to pair will show on the Digi-Pas Machinist Level App. -
Page 7: Switching Axis Reading
Digi-Pas DWL-1300XY & DWL-1500XY Instruction Manual ® www.digipas.com 2.2. Switching Axis reading To change the reading value to X or Y axis, press “MODE” button, the display green arrow on the left or right screen indicated X-axis measurement direction & top & bottom indicated Y-axis measurement direction. -
Page 8: Alternate Zero Mode
Digi-Pas DWL-1300XY & DWL-1500XY Instruction Manual ® www.digipas.com 2.4. Alternate zero mode To use Alternate zero mode, place the device on the surface to be measured & press “ALTERNATE ZERO” button, the “ALT” indicator display will show on the LED display & meas- urement value will display 0.000. -
Page 9: Warranty
Digi-Pas DWL-1300XY & DWL-1500XY Instruction Manual ® www.digipas.com Figure 7. Calibration mode display in LED screen (a) Calibration Step 1, (b) Calibration Step 2, (c) Calibration countdown 4. Verify your calibration result by comparing value of current position with the device after turn 180°.
