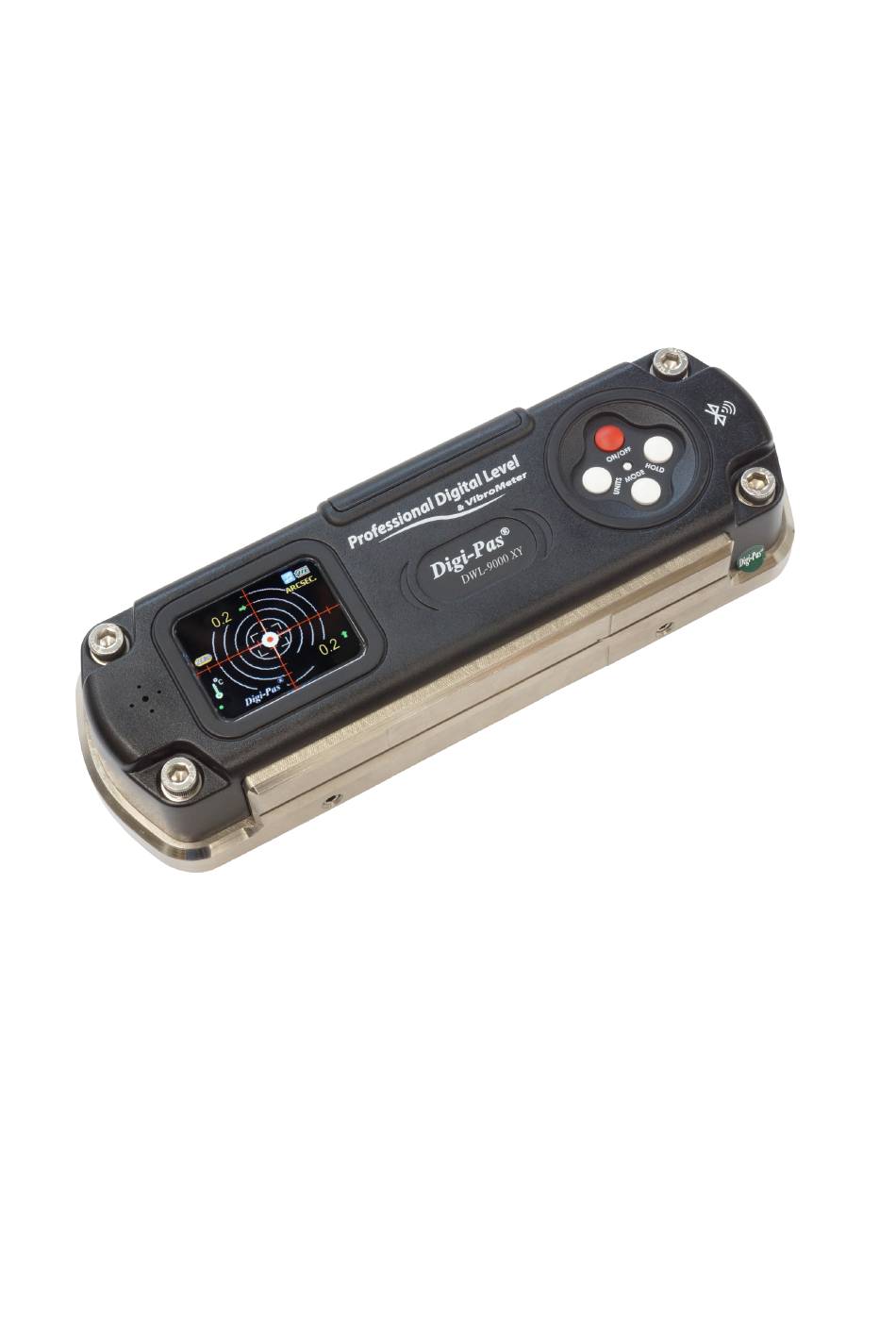

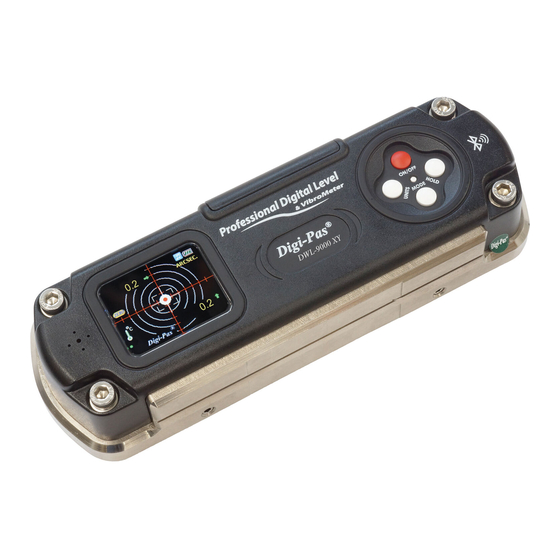

- Page 1 Digi-Pas ® USER MANUAL 2-Axis Ultra Precision Inclinometer Model: DWL9000XY Rev. 1.11 www.digipas.com Note: Contents in this instruction manual is continuously updated, please check Digi-Pas website for latest version.
-
Page 2: Table Of Contents
Digi-Pas DWL-9000XY Instruction Manual ® www.digipas.com CONTENT 1. Device Overview........................1 1.1. Technical Specification ......................1 1.2. Dimension of the Tilt Sensor Module .................2 1.3. Overview ..........................3 1.4. List of items included in DWL-9000XY product package ..........4 2. Setting Up ............................4 2.1. - Page 3 Digi-Pas DWL-9000XY Instruction Manual ® www.digipas.com © 2021 Digipas Technologies Inc. All Rights Reserved. TOC 2...
- Page 4 Digi-Pas® Products were manufactured under ISO9001 & ISO14001 standards, tested to comply by the followings certification bodies: © 2021 Digipas Technologies Inc. All Rights Reserved.
-
Page 5: Device Overview
Digi-Pas DWL-9000XY Instruction Manual ® www.digipas.com 1. DEVICE OVERVIEW 1.1. Technical Specification Measuring Range 0 to 7200 arcsec. (Single Axis Mode) (0.0000° to ± 2.0000°) Measuring Range 0 to 3600 arcsec. (2-Axis Mode) (0.0000° to ± 1.0000°) Resolution 0.2 arcsec. (≤ 1μm/M) ±... -
Page 6: Dimension Of The Tilt Sensor Module
Digi-Pas DWL-9000XY Instruction Manual ® www.digipas.com 1.2. Dimension of the Tilt Sensor Module 36.9 M5 X 7mm X 3 holes 188.4 60.5 M5 X 16mmx 2 holes Figure 1. DWL-9000XY Device Dimension © 2021 Digipas Technologies Inc. All Rights Reserved. -
Page 7: Overview
Digi-Pas DWL-9000XY Instruction Manual ® www.digipas.com 1.3. Overview © 2021 Digipas Technologies Inc. All Rights Reserved. Page 3... -
Page 8: List Of Items Included In Dwl-9000Xy Product Package
Digi-Pas DWL-9000XY Instruction Manual ® www.digipas.com 1.4. List of items included in DWL-9000XY product package Item No. Description Quantity DWL 9000XY Ultra Precision Inclinom- 1 unit eter Certificate of Calibration 1 set AAA batteries 4 pcs USB 2.0 cable (3 Meters) -
Page 9: User Interface
Digi-Pas DWL-9000XY Instruction Manual ® www.digipas.com To mount the device onto user’s defined fixture or workpiece. Remove both the set screw (M5), then replace with the appropriate type of screws specified by the user. 3. USER INTERFACE 3.1. Single Axis Mode Interface 3.2. -
Page 10: Single Axis Mode Operation
Digi-Pas DWL-9000XY Instruction Manual ® www.digipas.com The green arrow sign on display indicates the higher side. User may “freeze” the screen by pressing the HOLD button. The icon pops up to indicate the screen is paused. To resume operation, press the hold button once. -
Page 11: Main Menu Icon Screen Display And Button Function
Digi-Pas DWL-9000XY Instruction Manual ® www.digipas.com Place the digital level on the surface to be measured. Please ensure the contact surfaces of the device and measuring plane are clean and free from dust particles. The “Target Ball” or “Bull Eye” move towards the measured position similar to traditional “Bubble”... -
Page 12: Features & Setting
Digi-Pas DWL-9000XY Instruction Manual ® www.digipas.com SYNC MENU Enables user to select the connectivity (USB/Bluetooth) with a computer installed with PC Sync Software. ANGLE METER Enables user to obtain real-time continuous angle measurements displayed in line graph. VIBRO METER Enables user to obtain real-time continuous vibration measurements displayed in line graph. -
Page 13: Alternate Zero Screen Display And Button Function
Digi-Pas DWL-9000XY Instruction Manual ® www.digipas.com Turn the device 180° and press MODE button again to start the measure- ment. When completed the above settings, the ‘ABS’ logo is shown to indicate that the device is in the Absolute Level mode. -
Page 14: Sync Menu Screen Display And Button Function
Digi-Pas DWL-9000XY Instruction Manual ® www.digipas.com User may “freeze” the screen by pressing the HOLD button. The icon pops up to indicate the screen is paused. To resume operation, press the hold button once. SYNC Menu Screen Display and Button Function The status bar indicates current selected mode as USB. -
Page 15: Angle Meter Screen Display And Button Function
Digi-Pas DWL-9000XY Instruction Manual ® www.digipas.com Angle Meter Screen Display and Button Function Place the digital level on the surface to be measured. Please ensure the contact surfaces of the device and measuring plane are clean and free from dust particles. -
Page 16: Setting Menu Display Screen And Button Function
Digi-Pas DWL-9000XY Instruction Manual ® www.digipas.com Place the device on the surface to be measured. Press Auto Set button to set the line graph to the centre of display. Please ensure the contact surfaces of the device and measuring plane are clean and free from dust particles. -
Page 17: Storage & Cleaning
2. Do not submerge device in liquid while cleaning. 6. WARRANTY Digi-Pas® 2-Axis Ultra Precision Inclinometer is warranted to the original purchaser to be free from defects in workmanship and material. Digipas Technologies Inc. will, at its option, repair or replace any defective part which may malfunction under normal and proper use period of 2 (two) of pur- chase. - Page 18 Digi-Pas DWL-9000XY Instruction Manual ® www.digipas.com Disdtribute by: Manufactured by: JSB TECH PTE LTD Email:info@digipas.com www.digipas.com © 2021 Digipas Technologies Inc. All Rights Reserved. Page 14...
-
Page 19: Appendix 1: User Calibration
Grade AA (Levelled to ≤0.5 arcsec.) Master Square Granite Table Calibration Procedure: Ensure the DWL9000XY device is in power OFF condition. Press and hold the CAL button by using a small pin and simultaneously press the ON/OFF button. The LCD screen displays “Calibration 1”. - Page 20 Digi-Pas DWL-9000XY Instruction Manual ® www.digipas.com Turn the device 180° to Position 2. Press the MODE button again to start the calibration at “Position 2” and wait until the countdown reach “0”, the LCD screen displays “Cali- bration 3”. Place the device to Position 3. Press the MODE button once and wait until the countdown reach “0”, the LCD...
