Digi-Pas

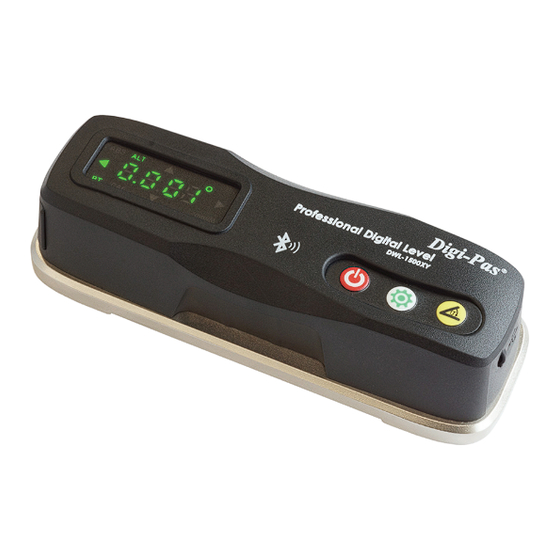

2-Axis Smart Precision Machinist Level
www.digipas.com
Note: Contents in this instruction manual are continuously updated, please check Digi-Pas website for the latest version.
®
USER MANUAL
DWL-1500XY
Model: DWL-1500XY & DWL-1300XY

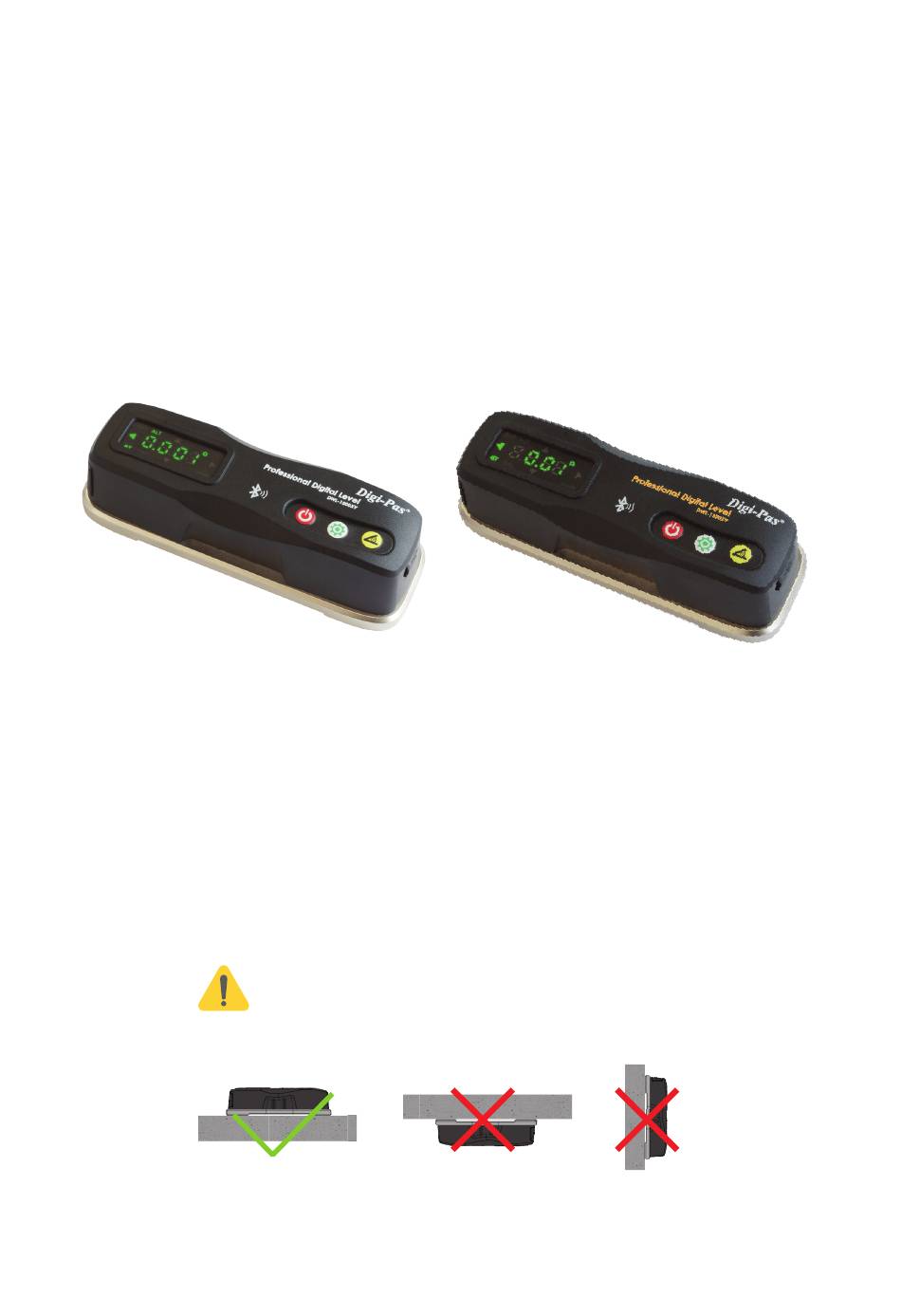

Caution
Device is operable on up-right positions only
DWL-1300XY
version 1.11
Advertisement
Table of Contents
Related Manuals for Digi-Pas DWL-1500XY
Summary of Contents for Digi-Pas DWL-1500XY
- Page 1 USER MANUAL DWL-1500XY DWL-1300XY 2-Axis Smart Precision Machinist Level Model: DWL-1500XY & DWL-1300XY Caution Device is operable on up-right positions only www.digipas.com version 1.11 Note: Contents in this instruction manual are continuously updated, please check Digi-Pas website for the latest version.
- Page 2 Digi-Pas DWL-1300XY & DWL-1500XY Instruction Manual ® www.digipas.com INTELLECTUAL PROPERTY This manual contains propriety information, which is protected by copyrights. All rights are reserved. No part of this manual may be photocopied, reproduced, redistributed or trans- lated to another language without the prior written consent of Digipas Technologies Inc.
-
Page 3: Table Of Contents
Digi-Pas DWL-1300XY & DWL-1500XY Instruction Manual ® www.digipas.com CONTENTS 1. DEVICE OVERVIEW ........................1 1.1. Technical Specification ..................... 1 1.2. List of items ...........................3 2. OPERATION PROCEDURE ......................3 2.1. Initialization ..........................3 2.2. Switching Axis reading ......................4 2.3. Absolute Level mode ......................4 2.4. -
Page 4: Device Overview
Digi-Pas DWL-1300XY & DWL-1500XY Instruction Manual ® www.digipas.com 1. DEVICE OVERVIEW 1.1. Technical Specification DWL-1300XY DWL-1500XY Measuring Range 0° ~ ±5.00° (Dual-Axis) 0° ~ ±2.000° (Dual-Axis) Resolution 0.002”/ft. or 40-second or 0.01° 0.0002”/ft. or 5-second or 0.001° ±0.004”/ft. or ±0.02° from 0° ~ 0.5°... - Page 5 Digi-Pas DWL-1300XY & DWL-1500XY Instruction Manual ® www.digipas.com 1.2. Device Overview Figure 1. Overview of the Machinist Level 1. USB Port for alternate power supply 6. Alternate Zero button: 2. Zinc Alloy base - Press for Alternate Zero mode 3. LED Display - Press &...
-
Page 6: List Of Items
Machinist Level” App on your smart- ® phone through Bluetooth connection. Guide on how to pair and initialize the device with your smartphone is in the App. “Digi-Pas Machinist Level” app must be first ® downloaded to your smartphone from Google Play Store or Apple App Store. -
Page 7: Switching Axis Reading
Digi-Pas DWL-1300XY & DWL-1500XY Instruction Manual ® www.digipas.com 2.2. Switching Axis reading To change display reading value from X to Y axis or vice versa, press “MODE” button, the green arrow-head signs on left/right screen indicate X-axis measurement while top & bot- tom arrow-head signs indicate Y-axis measurement. -
Page 8: Alternate Zero Mode
Digi-Pas DWL-1300XY & DWL-1500XY Instruction Manual ® www.digipas.com 2.4. Alternate Zero mode To operate in “Alternate Zero” mode, place device on the surface to be measured & “ALTERNATE ZERO” button, “ALT” icon show up on LED display and measurement press value should indicate 0. -
Page 9: Question And Answer
Digi-Pas DWL-1300XY & DWL-1500XY Instruction Manual ® www.digipas.com Figure 7. Calibration mode display in LED screen (a) Calibration Step 1, (b) Calibration Step 2, (c) Calibration countdown 4. Verify your calibration result by comparing the measurement value of current posi- tion with the device after turning 180°... - Page 10 Your precision digital level may have been subjected to extreme physical or tem- perature shocks during usage, transportation or storage that affected its accuracy. An offset value of reading may have been present in the device. Digi-Pas precision ®...
-
Page 11: Warranty
Digi-Pas DWL-1300XY & DWL-1500XY Instruction Manual ® www.digipas.com 4. WARRANTY Digi-Pas 2-Axis High Precision Digital level is warranted to the original purchaser to be free ® from defects in workmanship and material. Digipas Technologies Inc. will, at its option, re- pair or replace any defective part which may malfunction under normal and proper use period of 2 (two) of purchase.
