Digi-Pas
Innovation & Technology Driven
www.digipas.com
Note: Contents in this instruction manual is continuously updated, please check Digi-Pas website for latest version.
®
™
USER MANUAL

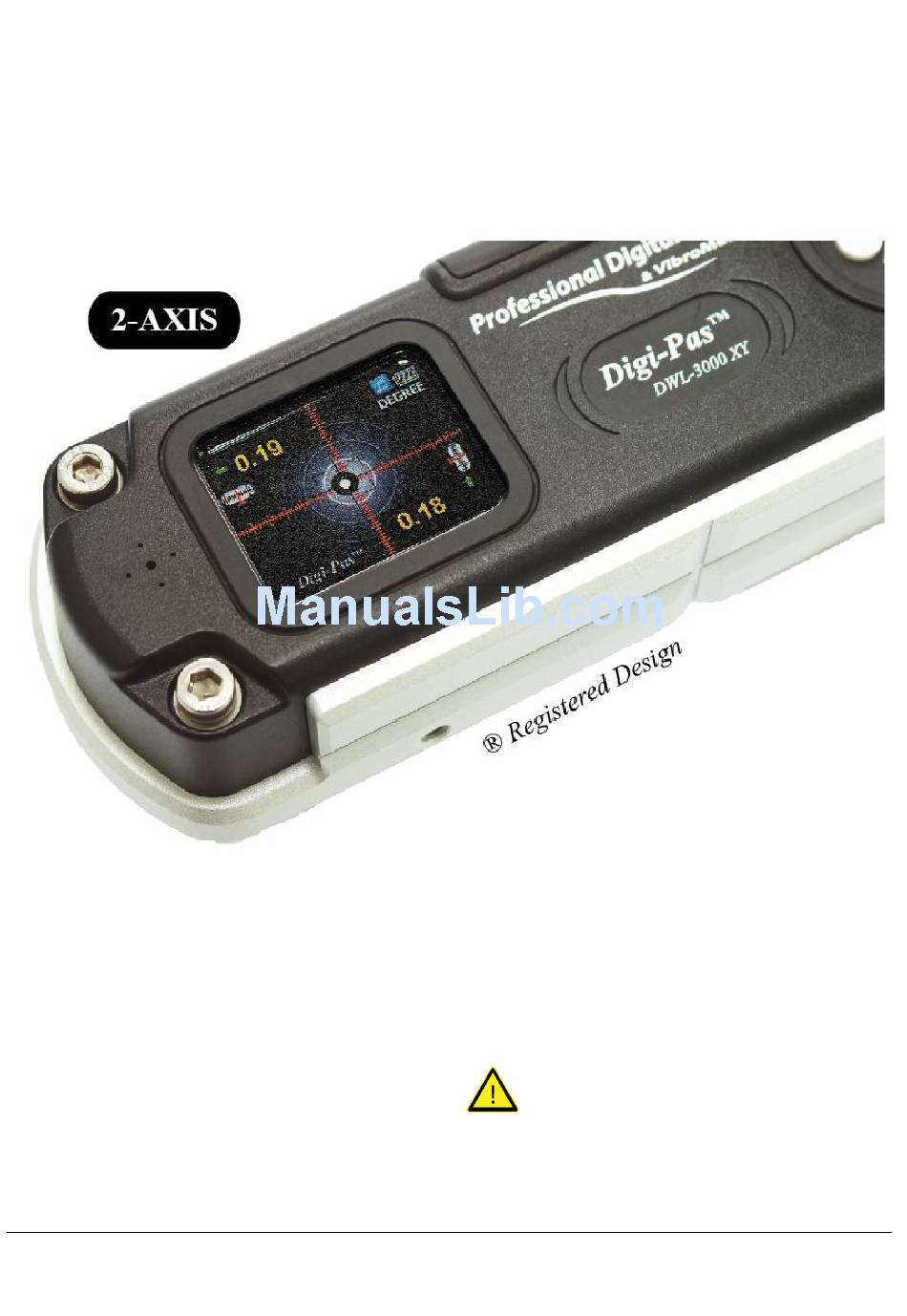

2-Axis Precision Digital Level
Model: DWL3000XY
Please take note that the device contains
STRONG MAGNET!
REVISION 4.40
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Digi-Pas DWL3000XY
Summary of Contents for Digi-Pas DWL3000XY
- Page 1 Innovation & Technology Driven USER MANUAL 2-Axis Precision Digital Level Model: DWL3000XY Please take note that the device contains STRONG MAGNET! www.digipas.com REVISION 4.40 Note: Contents in this instruction manual is continuously updated, please check Digi-Pas website for latest version.
- Page 2 ® Digi-Pas Products were manufactured under ISO9001 & ISO14001 standards, tested to comply by the followings certification bodies: ® © 2015 DIGIPAS USA LLC. All Rights Reserved. Digi-Pas logo is registered trademarks of JSB TECH Pte Ltd.
-
Page 3: Table Of Contents
CONTENTS CHAPTER 1: DEVICE OVERVIEW - Technical Specification - Overview - List of Items CHAPTER 2: SETTING UP - Operating Procedure - Mounting Device on Fixture CHAPTER 3: USER INTERFACE - Single Axis Mode Interface - Dual Axis Mode Interface - Main Menu Icon Functions CHAPTER 4: FEATURES AND SETTING - Absolute Level... -
Page 4: Chapter 1: Device Overview
CHAPTER 1: DEVICE OVERVIEW Technical Specification DWL3000XY Measurement Range 0.00° to ± 90.00° (Single Axis Mode) Measurement Range 0.00° to ± 15.00° ( 2-Axis Mode) Resolution 0.01° (175µm/M) (0.002 in/ft) ± 0.01° at 0.00° ~ ± 10.00° (175µm/M) Accuracy (0.002 in/ft) (36 arcsec.) ±... - Page 5 Device Overview Battery Compartment of 4 x “AAA” size 1.5V batteries. -Observe the polarity of the batteries indicated on the top of the battery cover USB Port: LCD Colour graphic digital display - USB power supply - PC Synchronization - Firmware update ON/OFF: Power On/Off - Escape from Mode function CAL: Activate calibration mode...
-
Page 6: List Of Items
List of Items i. List of items included in DWL-3000XY product package Item No. Description Quantity DWL 3000XY Precision Digital Level with 1 unit Vibrometer Certificate of Calibration 1 set AAA batteries 4 pcs USB 2.0 cable (3 Meters) 1 pc Basic PC Sync Software 1 pc M5 Domed screw... -
Page 7: Chapter 2: Setting Up
CHAPTER 2: SETTING UP Operation Procedure 1. Insert 4 pieces of "AAA" batteries into the battery compartment and press ON/OFF button. Alternatively, insert USB power source to the USB Port to power up the device. Take note that the device performance might be affected when poorly regulated USB power source is used. -
Page 8: Chapter 3: User Interface
CHAPTER 3: USER INTERFACE Single Axis Mode Interface Single Axis Mode Display Screen and Button Function SOUND BATTERY ALERT LEVEL MEASUREMENT HOLD UNITS DIGITAL MEASUREMENT READING UNITS MAIN MENU Single Axis Mode Operation Place the digital level on the surface to be measured. Please ensure the contact surfaces of the device and measuring plane are clean and free from dust particles. - Page 9 Dual-Axis Mode Interface Dual-Axis Mode Display Screen and Button Function SOUND ALERT BATTERY LEVEL HORIZONTAL (X) AXIS MEASUREMENT DIGITAL READING UNITS MEASUREMENT HOLD UNITS MICROMETER VERTICAL (Y) AXIS DIGITAL READING MAIN MENU Dual-Axis Mode Operation Place the digital level on the surface to be measured. Please ensure the contact surfaces of the device and measuring plane are clean and free from dust particles.
-
Page 10: Absolute Level
Main Menu Icon Screen Display and Button Function TITLES TITLES ICONS ICONS CURSOR CURSOR DWL3000XY Device DWL3000XY Bluetooth Device EXIT MAIN MENU SCROLL LEFT SCROLL RIGHT SELECT / ENTER Main Menu Icon Features ABSOLUTE LEVEL SETTING Enable user to ensure each measurement reading is in accordance to maximum device accuracy specified. -
Page 11: Sync Menu
SYNC MENU Enables user to select the connectivity (USB/Bluetooth) with a computer installed with PC Sync Software. This feature is only applicable to DWL3000XY Bluetooth device. ANGLE METER Enables user to obtain real-time continuous angle measurements displayed in line graph. - Page 12 CHAPTER 4: FEATURES AND SETTING Absolute Level Screen Display and Button Function BACK TO MAIN MENU INSTRUCTION MEASUREMNT INDICATOR HOLD UNIT LOADING BAR SELECT / ENTER Absolute Level Setting Place the device on the surface to be measured. Press MODE button to start the measurement and wait until the loading bar is full.
- Page 13 Alternate Zero Screen Display and Button Function BACK TO MAIN MENU INSTRUCTION HOLD MEASUREMNT INDICATOR UNIT SELECT / ENTER SINGLE OR Dual-AXIS INDICATOR Alternate Zero Setting Place the digital level on the surface to be measured. Press MODE button to set the angle to 0⁰ as a reference. Please ensure the contact surfaces of the device and measuring plane are clean and free from dust particles.
- Page 14 SYNC Menu Screen Display and Button Function BACK TO MAIN MENU MOVE TO RIGHT MOVE TO LEFT SYNC via Cursor SELECT / ENTER Status: USB Active SYNC via Current Status Bluetooth SYNC Menu Setting The status bar indicates current selected mode as USB. To change to Bluetooth mode, scroll the 'right' button and then press MODE button.
- Page 15 Angle Meter Screen Display and Button Function BATTERY LEVEL BACK TO MAIN MENU Angle (⁰) MEASUREMNT Time HOLD UNIT (Second) SELECT / ENTER HORIZONTAL DIGITAL READING Angle Meter Setting Place the digital level on the surface to be measured. Please ensure the contact surfaces of the device and measuring plane are clean and free from dust particles.
- Page 16 Vibro Meter Screen Display and Button Function BATTERY BACK TO PREVIOUS MENU LEVEL Magnitude AUTO SET / SPEED HOLD /SCALE SELECTION SELECTION Time (ZOOM MENU) (ZOOM MENU) (Second) ZOOM MENU TO SCALE MAGNITUDE & TIME(S) ( ZOOM IN / ZOOM OUT) SPEED OF DATA ACQUISITION Vibro Meter Setting Place the device on the surface to be measured.
- Page 17 Setting Menu Display Screen and Button Function MAIN MENU RIGHT LEFT SELECTION SELECTION DOWN SETTING PARAMETERS AutoOff To set automatic power off according to user defined time period. Auto Dim To set automatic dim according to user defined time period. Units To change the measuring unit (Degree, mm/M, In/FT).
-
Page 18: Chapter 5: Storage And Cleaning
CHAPTER 5: STORAGE AND CLEANING Storage Keep the device in the equipment box and maintain the storage temperature within -20°C to 60°C or -4°F to 140°F. When the device is not in used, the batteries are to be removed from the device. -
Page 19: Chapter 6: Warranty
CHAPTER 6: WARRANTY ® Digi-Pas 2-Axis High Precision Digital level is warranted to the original purchaser to be free from defects in workmanship and material. JSB Tech will, at its option, repair or replace any defective part which may malfunction under normal and proper use within a period of 2 (two) years from the date of purchase. The forgoing warranty shall not apply to defects resulting from misuse, abuse, assignment, or transfer by the Buyer. -
Page 20: Appendix: User Calibration
Master Square Parallelism: ≤ 2.0µm Granite Table Calibration Procedures: Ensure the DWL3000XY device is in power OFF condition. Press and hold the CAL button by using a small pin and simultaneously press the ON/OFF button. The LCD screen displays “Calibration 1”. - Page 21 4. Turn the device 180° and place on the opposite side of the master square as shown in Position 4. Hold the device firmly and do not move the device during each count down period. Press the MODE button again to start the calibration and wait until the countdown reach “0”, the LCD screen displays “Calibration 5”...
