OPERATION AND ADJUSTMENT

STEERING WHEEL Position Can Be Adjusted
(Triple Adjustment Steering Column)

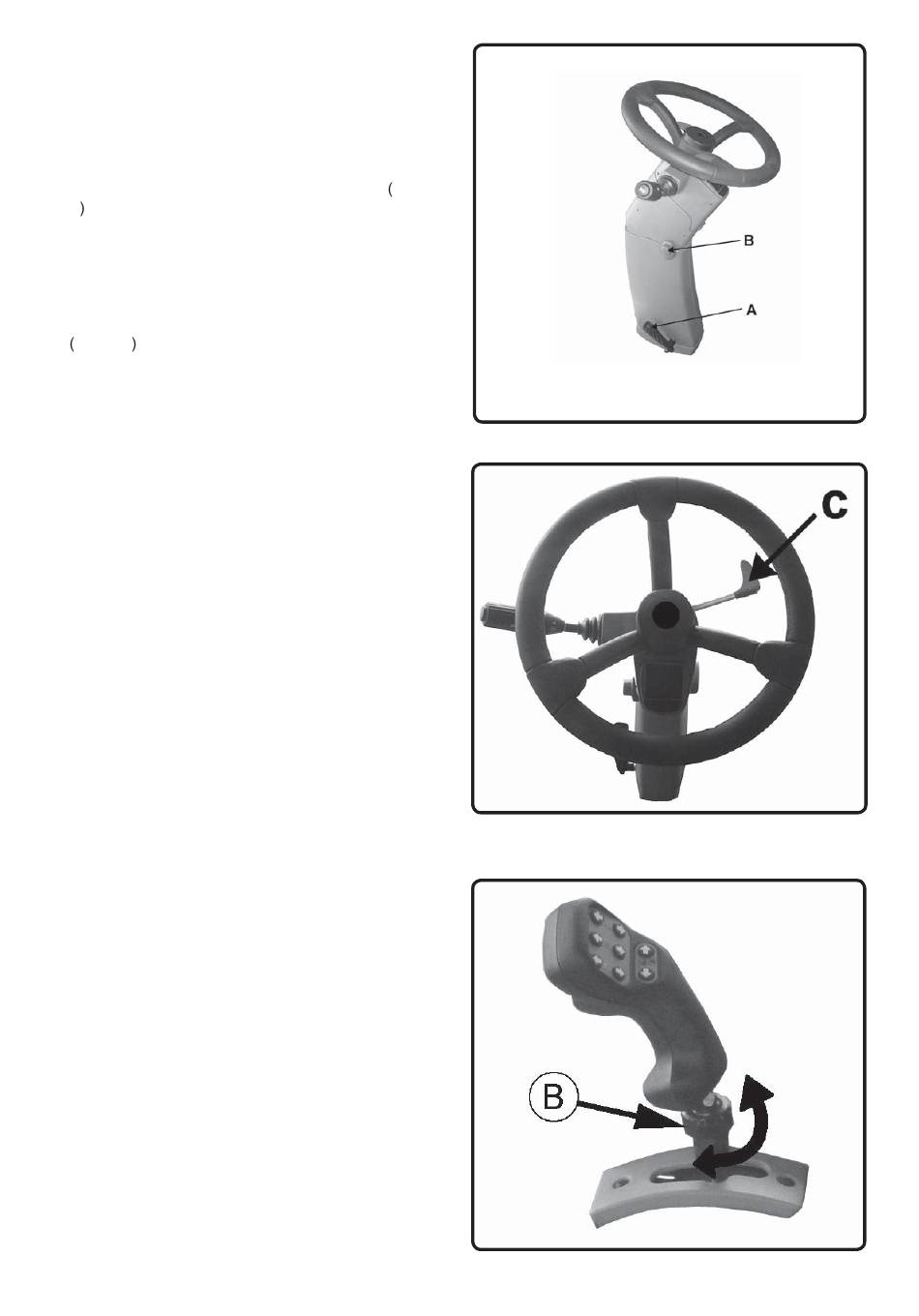

To adjust the steering column angle, depress pedal A
and tilt the whole column forward or backward Fig.
K1b .
The steering column folds in the middle. Lift the lever
B up and adjust the steering wheel to the desired
position.
To adjust the height of the steering wheel, lift the lever
C Fig. K1c up and adjust the steering wheel to the
desired position
K1b
K1c
Drive Lever (K1d)
On combines with hydrostatic transmission traction
speed and direction is controlled with a drive lever.
Lever handle position can be adjusted to suit the
driver.
To adjust the lever position, slacken nut B and turn the
lever in the ball-and-socket joint.
Tighten the screws and the nut after adjustment to en-
sure the lever will not move while driving.
K1d
