OPERATOR´S CONTROLS AND
INSTRUMENTS

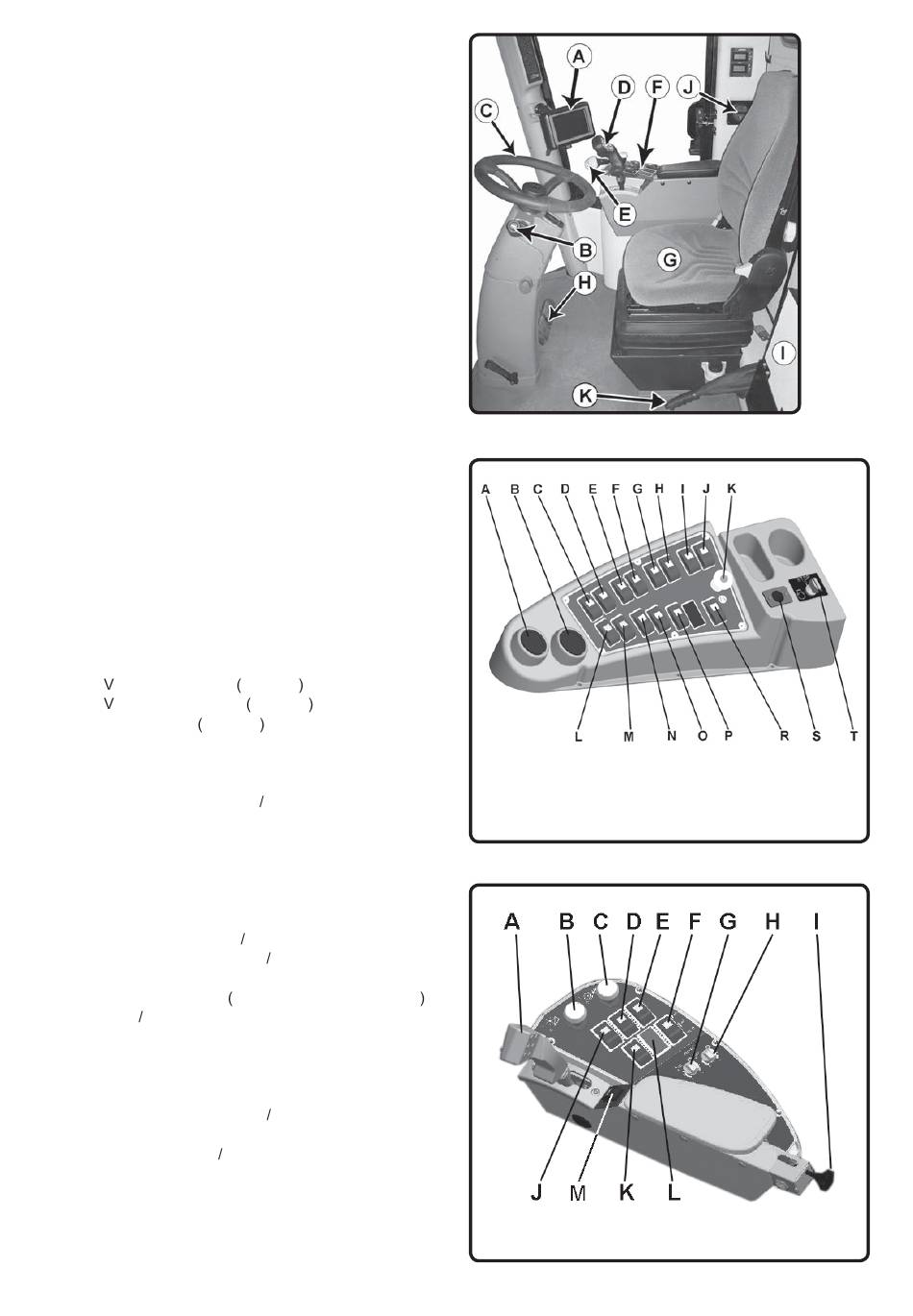

Operator's Platform / Cab (fig. B1c)
A Comvision- display
B Multi-function Lever
C Steering Wheel
H Brake Pedals
F Instrument Panel
E Gear Lever
D Traction Speed Control Lever
G Seat
I Buddy Seat
J Concave Clearance Indicator
K Handbrake
Instrument Panel (fig. B2c)
A Thermometer
B Fuel Gauge
C Differential Lock
D Reversing of Cutting Table and Feeding Mech.
E Concave Clearance Adjustment
F Concave Clearance Adjustment
G Direction of Straw Chopper Spray
H Direction of Straw Chopper Spray
I Working Lights
J Working Lights
K Safety Switch
L Emergency Flasher
M Rotating Flasher
N ertical Knife, left optional
O ertical Knife, right optional
P 4WD Switch optional
Q Engine faulty code
R Main switch
S Electric Outlet
T Ignition Lock, Starter Stopper
Switches (fig. B3c)
A Traction Speed Control Lever
B Cutting Table Start Stop
C Threshing Mech. Start Stop
D Fan Speed Adjustment
E Electric accelerator depending on the engine type
F AHC DHC
G AHC Pre-setting height
H AHC Automatic height
I Armrest angle adjustment
J Cylinder Speed Adjustment
K Reel Speed Automatic Manual
L Cover
M Unloading Start Stop
B1c
B2c
B3c
