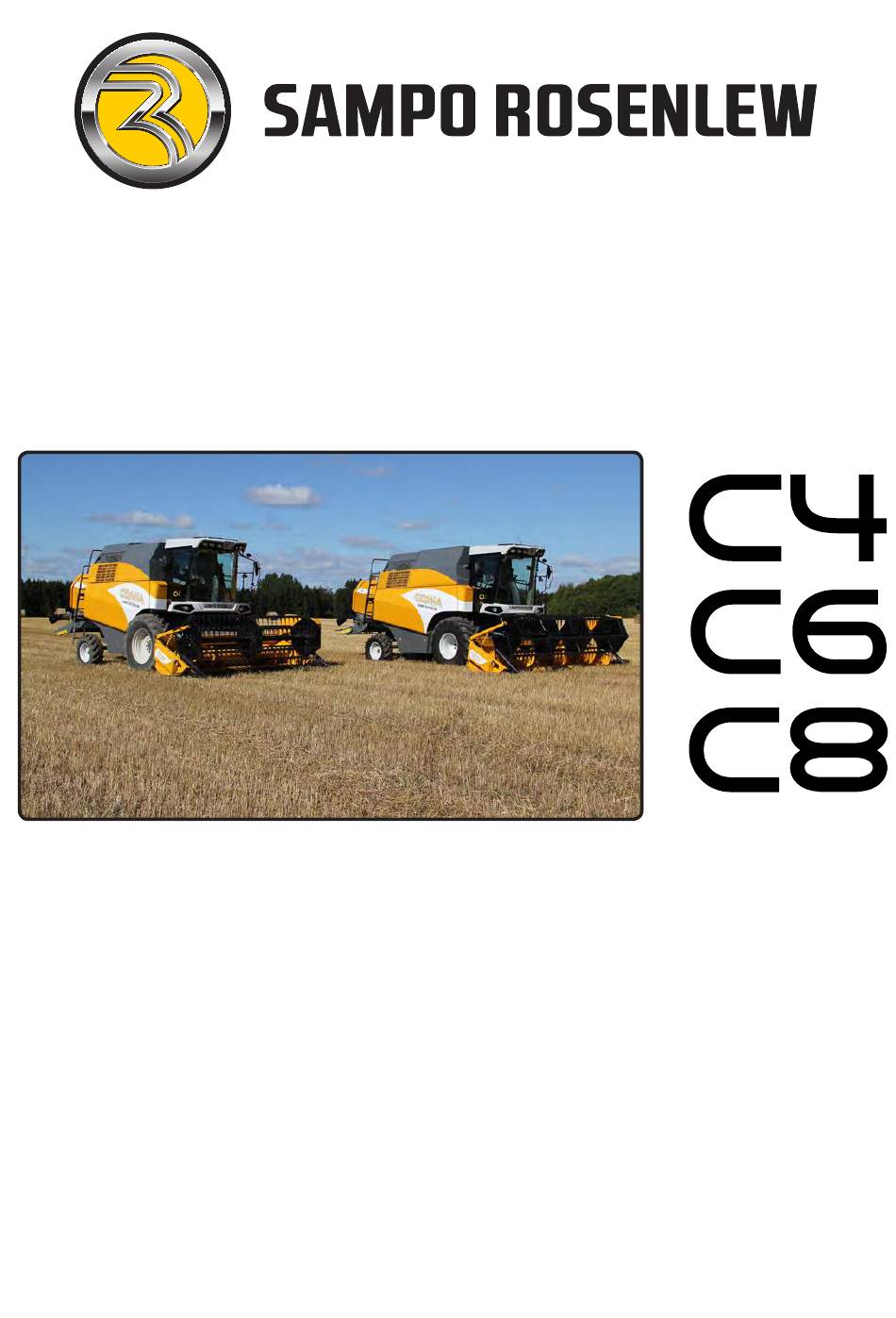

- Page 1 Comia Combine Harvester Instruction Book Sampo Rosenlew Ltd P. O. Box 50 FIN-28101 PORI FINLAND 0814374 01/2017 Englanti...
-
Page 3: This Book
It does, however, not include retro-fitted accessories. The Manufacturer reserves the right to modify the structure, adjustments or accessories of the combine as well as the service and maintenance instructions without further notice. SAMPO ROSENLEW LTD – 1 –... -
Page 4: Table Of Contents
CONTENTS This book Safety Precautions Marking the danger points Type Marking Technical Specifications Conformity to EU Regulations Acceptance Inspection and Getting Started Opening the Guards Structure and Functions of the Combine 20 and 22 Cut-away Picture of the Combine 21 and 23 Operator Controls and Instruments Key to the Symbols Operation and Adjustment... -
Page 5: Safety Precautions
SAFETY PRECAUTIONS Read carefully these instructions on safety and use before starting to operate the combine. Time spent in becom- ing familiar with the instructions now, will save you money or may even spare you from injury. Before accepting the delivery of the combine, make sure it conforms to the delivery contract. Do not fit the combine with any accessories not approved of by the Manufacturer. - Page 6 Never use the combine for anything but threshing. Manual feeding of crops onto the cutting table is pro- hibited. Before starting, particularly reversing, make sure that everybody nearby is aware of your intentions. Test the brakes as soon as you start, and stop immedi- ately if the brakes or steering operate defectively.
- Page 7 In Case of an Accident If there is an accident despite all precautions, keep calm and consider carefully what to do. First try to re- verse the combine away from the power line. If there are other people near, ask them to check that the com- bine is not stuck in the line.
- Page 8 4. REPAIR AND SERVICE Always keep the combine in good condition. Check the condition of fast moving parts daily. Pay special attention to the transmission mechanism and the rotating chopper knives. Replace defective parts before they become dangerous. Clean, repair and service the combine with the trans- mission and engine off, the ignition key off the ignition switch and the master switch in its off position.
- Page 9 This symbol in the manual refers to a special risk involved in taking a certain measure, due to which extra caution shall be practised. 6. FIRE SAFETY Two factors are needed to start a fire: flammable material and ignition; oxygen is always available. Threshing generates a lot of light and highly flammable dust.
-
Page 10: Marking The Danger Points
MARKING THE DANGER POINTS Although an effort has been made to build the combine as safe to use as possible, there are certain risks involved in its use. These are to be kept in mind when operating the combine. The danger points have been marked on the combine using hazard pictorials. On the following page you will find the locations of and the key to these symbols. - Page 11 HAZARD PICTORIALS Symbol Danger How to avoid it Subject to danger due to Read the manual before starting the com- insufficient information bine A raised part may fall down Support raised parts before going under them Gap in belt drive Stop the engine and remove the ignition key before removing any guards Getting entangled in mov-...
-
Page 12: Type Marking
TYPE MARKING When ordering spare parts or service, always quote the type marking and number shown on he machine plate of the combine. When ordering parts for the cutting table, also quote the type marking and number shown on the cutting table. -
Page 13: Technical Specifications
TECHNICAL SPECIFICATION COMIA (ISO 6689 standard has been used in measuring) Cutting table Cutting width (m) 3,45 Cutting height (m) -0,20…+1,20 Knife, Number of Strokes 1020 cycles/min Reel Diameter (m) 1,05 Speed range (rpm) 16...51 WobbleBox (WB) 15...49 Crank-driven knife (CK) Threshing Cylinder Width (m) 1,11... - Page 14 Driving speed (km/h)* Final drive Hydrostatic Traction Drive 0... 4,7 0... 4,1 DANA 0... 7,0 0... 5,6 0... 18,4 0… 6,4 0... 5,6 0… 9,5 0... 7,6 0… 25 * Speeds may vary depending on the size of the tyres Turning radius (m) (6,2 C8) Tyres / Air pressure (bar)
- Page 15 Volumes (See manual, LUBRICATION) Fuel tank (litres) Cooling system (litres) (4 cyl.= 29) (6 cyl =33 ) Urea (litres) Weight (kg) Without cutting table and chopper 7700 7950 8740 Cutting table (m) 3,45 Weight (kg) 790 CK 1005 1055 1110 1160 1200 890 WB Chopper weight (kg) Maize table.
-
Page 16: Conformity To Eu Regulations
– 14 –... -
Page 17: Acceptance Inspection And Getting Started
ACCEPTANCE INSPECTION AND GETTING STARTED The combine leaves the factory packaged in an appropriate way to ensure undamaged delivery. Before start-up the following steps shall be taken: • Read the Operating Manual carefully before start-up. • Remove all loose parts stored in the grain tank during transportation. •... -
Page 18: Opening The Guards
OPENING THE GUARDS To ensure safety, the movable guards in the combine have been equipped with a locking device. They can- not be opened without the appropriate tool supplied with every combine, hanging on a hook on the back wall of the cab. The guards are locked automati- cally when closed. - Page 19 • The rear guard of the chopper (straw spreader) is released by levering the locking pivot to the right with the tool. The guard also gets locked in the upper position and is released correspondingly. • Choppers belt guard is opened by loosening the bolt on the guard and turning the cover open.The guard is secured in the upper position with a rub- ber strip.
- Page 20 Engine Compartment To open the cover on the engine compartment To unlock the grain tank cover, turn the lock shaft with the key. The cover can also be opened from the inside. Clean, repair and service the combine with the trans- mission and engine off, the ignition key off the ignition switch and the master switch disconnected.
- Page 21 Windscreen cleaning and adjusting mirrors When cleaning the windscreen, climb on top of the crop elevator and hold on of the top arms of the mirrors B (Figure B9.) When adjusting rear view mirrors climb on the platform C and hold on of the top arms of the mirrors B. (Figures B9 &...
-
Page 22: Structure And Functions Of The Combine 20 And
STRUCTURE AND FUNCTIONS OF THE COMBINE Standard Threshing Mechanism The cutting and feeding equipment takes the crops in for threshing. The straw dividers limit the crop to be cut and bring it within reach of the reel. The reel, together with the crop lifters, lift the laid-down crop up and take it from the cutting knife onto the table auger. - Page 23 – 21 –...
- Page 24 STRUCTURE AND FUNCTIONS OF THE COMBINE The TS Threshing Mechanism The cutting and feeding equipment takes the crops in for threshing. The straw dividers limit the crop to be cut and bring it within reach of the reel. The reel, together with the crop lifters, lift the laid-down crop up and take it from the cutting knife onto the table auger.
-
Page 25: Cut-Away Picture Of The Combine 21 And
– 23 –... -
Page 26: Operator Controls And Instruments
OPERATOR´S CONTROLS AND INSTRUMENTS Operator’s Platform / Cab (fig. B1c) Comvision- display Multi-function Lever Steering Wheel Brake Pedals Instrument Panel Gear Lever Traction Speed Control Lever Seat Buddy Seat Concave Clearance Indicator Handbrake Instrument Panel (fig. B2c) Thermometer Fuel Gauge Differential Lock Reversing of Cutting Table and Feeding Mech. -
Page 27: Key To The Symbols
SIGNALS AND SYMBOLS Cylinder Speed Ignition Switch Concave Clearance Master Switch (electric) Reel Fore & Aft Control Ignition Signal STOP Stop Control Lever Reel Speed Control Air Volume Control Oil Warning Light Alternator Warning Light Air Direction Control Lever Engine Revolutions, lever control UmkehReversing Switch of Cutting Table Engine Revolutions, electric control Four-wheel Drive... -
Page 28: Operation And Adjustment
OPERATION AND ADJUSTMENT STEERING WHEEL Position Can Be Adjusted (Triple Adjustment Steering Column) To adjust the steering column angle, depress pedal A and tilt the whole column forward or backward (Fig. K1b). The steering column folds in the middle. Lift the lever B up and adjust the steering wheel to the desired position. - Page 29 OPERATOR’S SEAT Adjustments Spring Suspended Grammer Seat (fig. K2a) To adjust the fore and aft position, release lever A under the seat and move the seat to the required position. Adjust the height by raising the seat manually. There are three alternative heights at 20 mm intervals.
- Page 30 BRAKES (Fig. K3a) While Driving and Turning The mechanical outer shoe brakes operate on the front wheels through the drive shafts. They may be used separately as steering brakes by releasing lock- ing pin A. When driving on the road, the brake pedals must be latched together.
