Summary of Contents for TOPMAQ GFW 5012-2

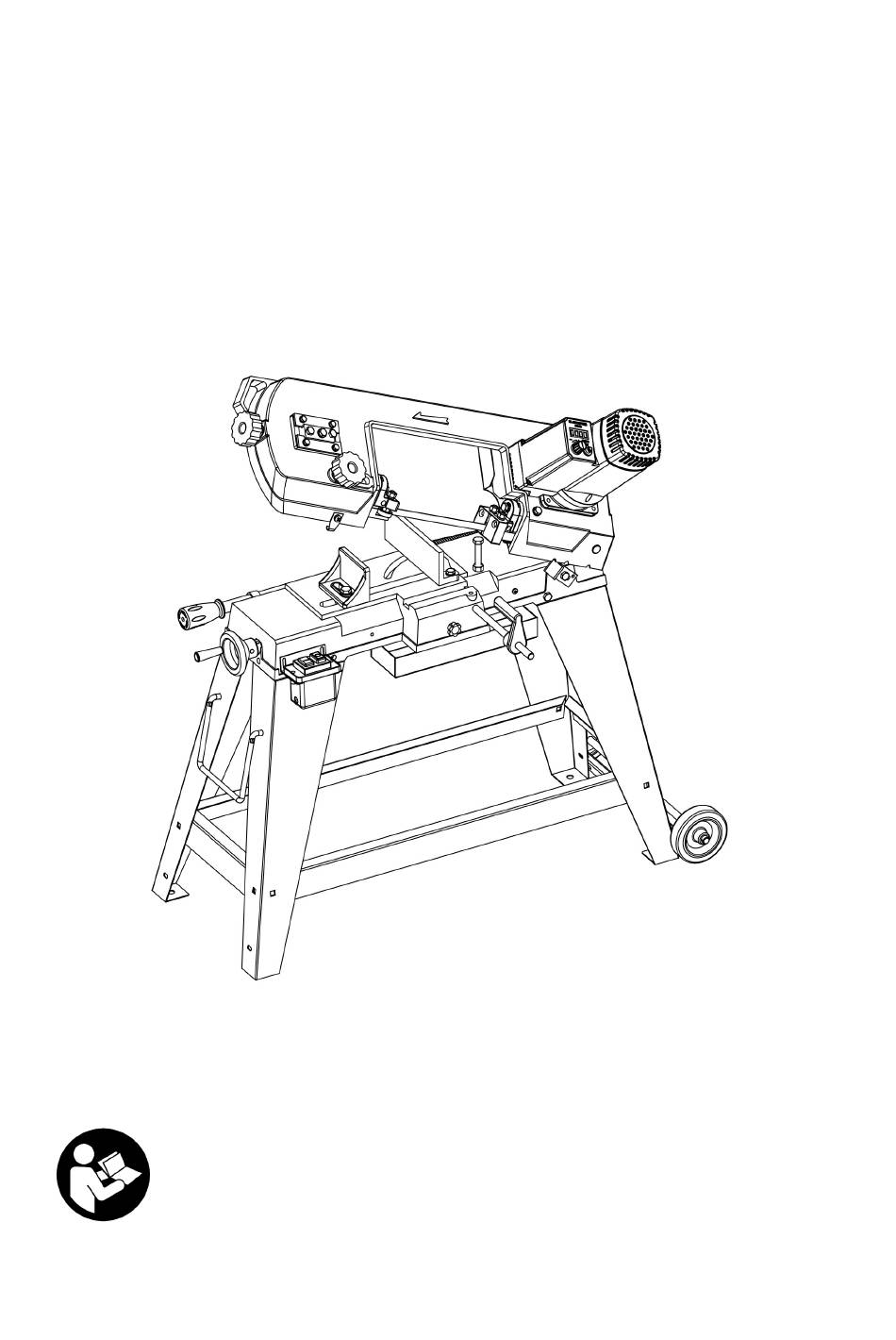

- Page 1 Operator’s Manual Metal band saw CAUTION: Read and follow all Safety Rules and operating Instructions before First Use of this Product. Keep this manual with tool. 2020-04 GFW5012/2...
-
Page 2: Technical Specification
Technical Specification Attention: Please choose proper power source, voltage and frequency that are shown in the label for your metal band saw. Metal band saw GFW 5012-2 Motor 550W S6 40% Saw Blade 1642X12.7mm 90 º 100X140mm Cutting Capacity at Square Material 45 º... -
Page 3: Electrical Requirements
carefully checked to determine that it will operate properly and perform its intended function – check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced. 16. -
Page 4: Accessories And Attachments
Refer to nether picture: Properly Ground Outlet Grounding Prong 3-Prong Plug WARNING: Improper connection of equipment grounding conductor can result in the risk of electrical shock. Equipment should be grounded while in use to protect operator from electrical shock. WARNING: This machine is for indoor use only. - Page 5 TABLE OF LOOSE PARTS Unpack carton; check you machine to see parts listed below: A. Band saw G. Short brace B. Sawdust box with knob H. Wheel Mounting Bracket C. Work Stop rod I. Shaft D. Work Stop J. Stand legs A E.
- Page 6 ASSEMBLY To assemble the band saw: 1. With the help of an assistant, lift the band saw onto a suitable support. 2. Attach the legs to the band saw with the M8-1.25 x 25 hex bolts, 8mm flat washers, 8mm lock washers, and M8-1.25 hex nuts.
- Page 7 7. Attach the switch box assembly to the body by using two pan head screws, adjusting the position of the switch box assembly and tighten the two pan head screws. This step is only for the 230V model. 8. On the other side legs, insert the handle into the pre-drilled holes and secure it with the cotter pins.
-
Page 8: Vise Adjustment
11. Install the sawdust box to base and fix it with the knob. Knob Sawdust box ADJUSTMENTS Warning: Turn off the machine and disconnect from the power supply before doing any adjustment. 1. Vise adjustment To use the vise: Loosen the two hex bolts. ... -
Page 9: Feed Rate Adjustment
3. Feed rate adjustment The feed rate is controlled by the spring and handle To adjust the feed rate: Slower: twist the handle clockwise to add tension to the spring. Faster: twist the handle counterclockwise to remove tension from the spring. Spring Handle 4. -
Page 10: Operation
OPERATION Use the work stop to quickly and accurately cut multiple pieces of stock to the same length Clamp the material firmly in the vise jaws to ensure a straight cut through the material. Let the blade reach full speed before engaging the workpiece. Never start a cut with the blade in contact with the workpiece. -
Page 11: Machine Care
2、 Remove the screw and washer and open the frame cover 3、 Remove the screw and washer (A), Remove the rear blade guard. 4、 Remove the screw (B), Remove the front blade guard. 5、 Loosen the blade tension knob and remove the old blade from the wheels. 6、... -
Page 12: Troubleshoothing
TROUBLESHOOTHING PROBLEM CAUSE SOLUTION The motor does not work Defective motor, power cable or Specialized personnel should plug check the machine Overload protector is tripped Reset the overload protector Machine stalls or is Wrong blade for the workpiece ... -
Page 13: Assembly Diagram
ASSEMBLY DIAGRAM...
