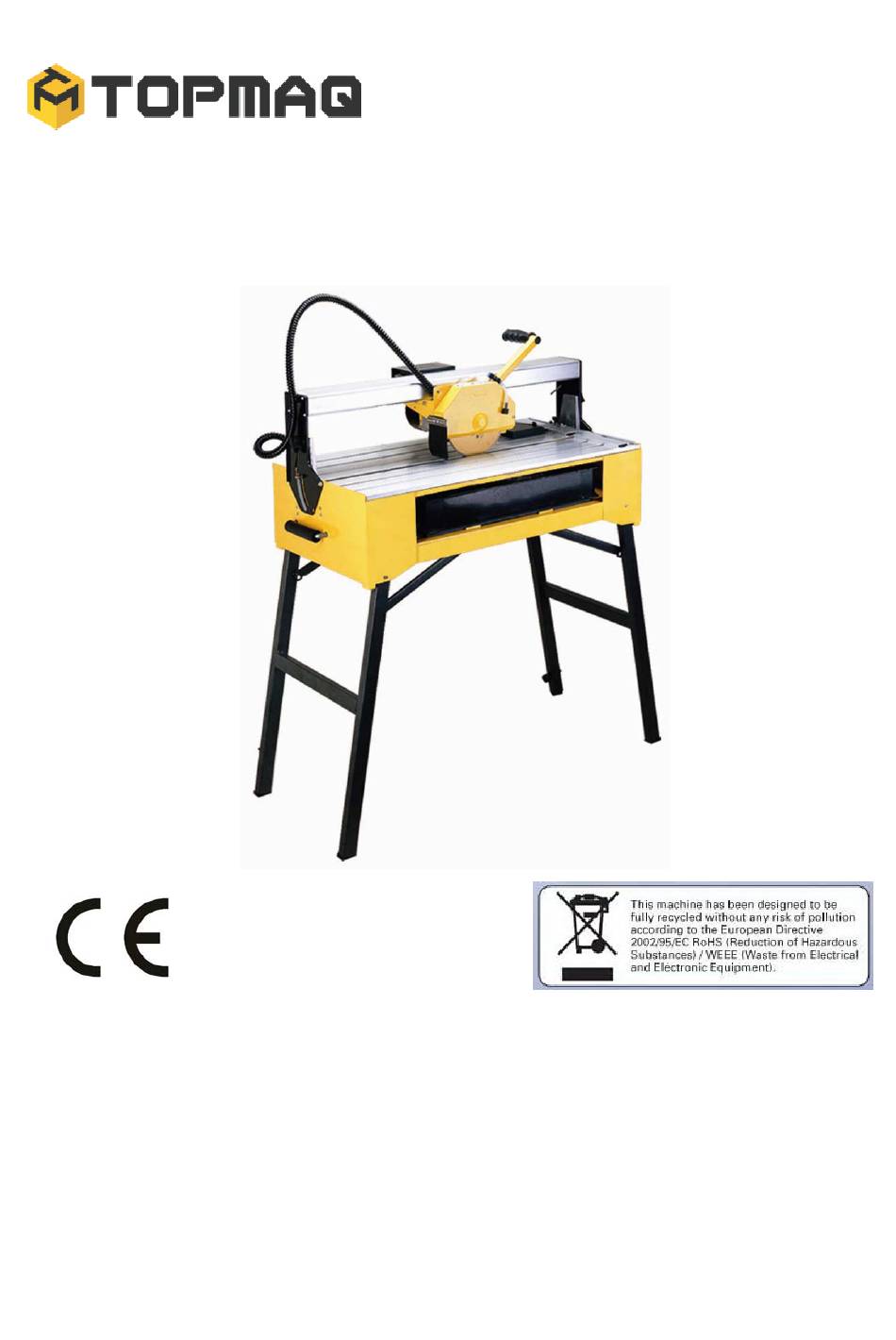

TILE CUTTING SAW
FTC200
Operating/user manual
NOTE: Before you use the machine, carefully read instructions properly. Before attempting to operate the machine
properly, familiarize yourself with the controls and make sure you know how to stop it quickly in an emergency. Save this
user's manual and the other documents supplied with this machine for future reference.
TOPMAQ: 32 Hammersmith Drive, Wigram, Christchurch 8042.
TEL: (03) 366 6143. E-mail:info@topmaq.co.nz
http://www.topmaq.co.nz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FTC200 and is the answer not in the manual?

Questions and answers

Related Manuals for TOPMAQ FTC200

Summary of Contents for TOPMAQ FTC200

  • Page 1 Save this user's manual and the other documents supplied with this machine for future reference. TOPMAQ: 32 Hammersmith Drive, Wigram, Christchurch 8042. TEL: (03) 366 6143. E-mail:info@topmaq.co.nz...

  • Page 2: Table Of Contents

    CONTENTS PAGE I. SPECIFICATION----------------------------------------------------------------------------3 II.OPERATOR’S INSTRUCTIONS--------------------------------------------------------4 RANGE OF APPLICATIONS AND PROPER USE----------------------------------------------4 KNOW YOUR PRODUCT-----------------------------------------------------------------------------4 GENERAL SAFETY RULES --------------------------------------------------------------------------4 TRANSPORTATION-------------------------------------------------------------------------------------7 III.SPECIFIC SAFETY RULES--------------------------------------------------------------7 IV. SPECIAL SAFETY INSTRUCTIONS--------------------------------------------------8 V. INSTALLATION AND OPERATING-----------------------------------------------------9 A. STARTING AND STOPPING THE SAW------------------------------------------------------- 9 B. ASSEMBLY-------------------------------------------------------------------------------------------- 9 C.

  • Page 3: Specification

    Read operator’s instructions Dear customer, thanks for your choice of stone cutter FTC200. Please read this manual carefully before installation and operation, and follow it. Please keep this manual in a safety place for future reference. Ⅰ SPECIFICATION Mains voltage (Volt):...

  • Page 4: Ii.operator's Instructions

    Ⅱ OPERATOR’S INSTRUCTIONS RANGE OF APPLICATIONS AND PROPER USE This cutting saw is developed for the cutting of small and moderate size ceramic, marble, granite, and masonry sheet. This saw has the possibility to tilt the diamond blade to cut on the bias (45-90 degree). The diamond blade is cooled by water pump.

  • Page 5: General Safety Rules

    GENERAL SAFETY RULES WARNING! When using electric tools basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury including the following. Read all these instructions before attempting to operate this product and save these instructions. 1 –Keep work area clear Cluttered areas and benches invite injuries.
  • Page 6 Keep cutting tools sharp and clean for better and safer performance. Follow instruction for lubricating and changing accessories. Inspect tool cords periodically and if damaged have them repaired by an authorized service facility. Inspect extension cords periodically and replace if damaged. Keep handles dry, clean and free from oil and grease.

  • Page 7: Transportation

    TRANSPORTATION ● Before transportation, first to lock the cut unit by the lock system. ● This machine is equipped with one set of wheel systems for one person transports it easily from car to job site and for mobility once on the job site. Please refer to part of Moving the saw. Note: Before moving the saw, the water should be drained out of the water tray.

  • Page 8: Special Safety Instructions

    first.  Before switching on, check that all spanners and setting tools have been removed.  When leaving the workplace, switch off the motor and pull out the plug.  After carrying out repair or maintenance work all safety and security fixtures must be replaced immediately.

  • Page 9: Installation And Operating

    ● Avoid using long extension cables. ● Always place the cutting machine on a flat surface to prevent instability. ● While using the machine 1. Never use-cracked diamond blade, replace them. 2. Be sure that the switch is in the OFF-position before connecting the machine to the mains voltage. 3.

  • Page 10: Filling The Water Tray And Draining

    7. To mount the handle, position the handle on the trolley and secure it using the 2 screws (Fig 7). 8. The motor trolley is secured during shipment, please loosen knob before using (Fig.8). Warning: To fix the motor trolley against the rail stand by the knob again before any maintenance. Fig.5 Attach the brackets to the legs Fig.4 pull out right stand Fig.3 Lay the saw on its side on the...

  • Page 11: Making A Straight Cut

    Fig.12 pull motor Fig.13 Making diagonal cut Fig.14 Loosen the knob Fig.15 Tilt the bridge trolley E. MAKING A DIAGONAL CUT 1. Follow the same procedure for a straight cut. 2. Loosen the nut on the squaring tool, and position the tile diagonally (Fig.13). 3.

  • Page 12: Replacing The Diamond Blade

    Fig.19 Fig.20 Fig.21 ALTERNATIVE WHEEL MOUNTING 1. The wheels may also be mounted at the bottom of the support legs, for easier transport on the job site (Fig. 20). 2. Once the wheels are in place, lift the saw with the opposite handle to move the saw (Fig.21). H.
  • Page 13 clean the water and dust on the machine. ● Keep the ventilation slots of the tile machine clean to prevent overheating of the motor. ● Dry the cutting machine as much as possible after using. ● All maintenance must be performed by a competent person. PUMP MAITENENCE 1.

  • Page 14: Vii.trouble Shooting

    Fig.26-4 Fig.26-5 Fig.26-6 Fig.26-7 Fig.26-8 Fig.26-9 Fig.26-10 Fig.26-11 VII TROUBLE SHOOTING Below we have listed a number of possible causes and corresponding solutions in case the machine dose not function as it should: ● The motor gets hot. 1. The ventilation slots in the motor are blocked with dirt: -Clean the cool ventilation slots;...

  • Page 15: Service

    4. Handle. IX SERVICE AND ADDRESS: TOPMAQ: 32 Hammersmith Drive, Wigram, Christchurch 8042. TEL: (03) 366 6143. E-mail:info@topmaq.co.nz http://www.topmaq.co.nz - 15 -...
