Summary of Contents for hivolt HAR12S

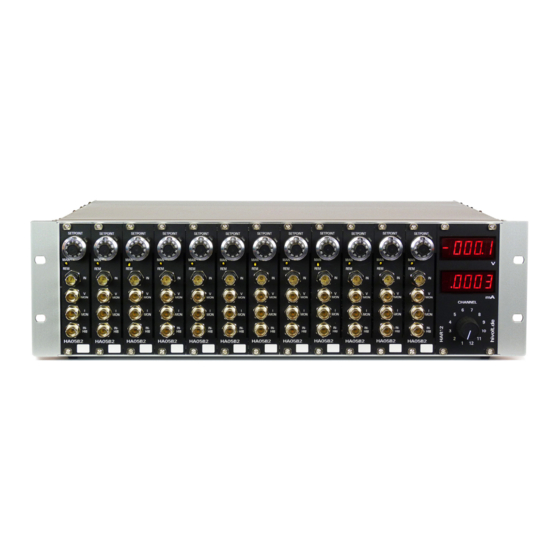

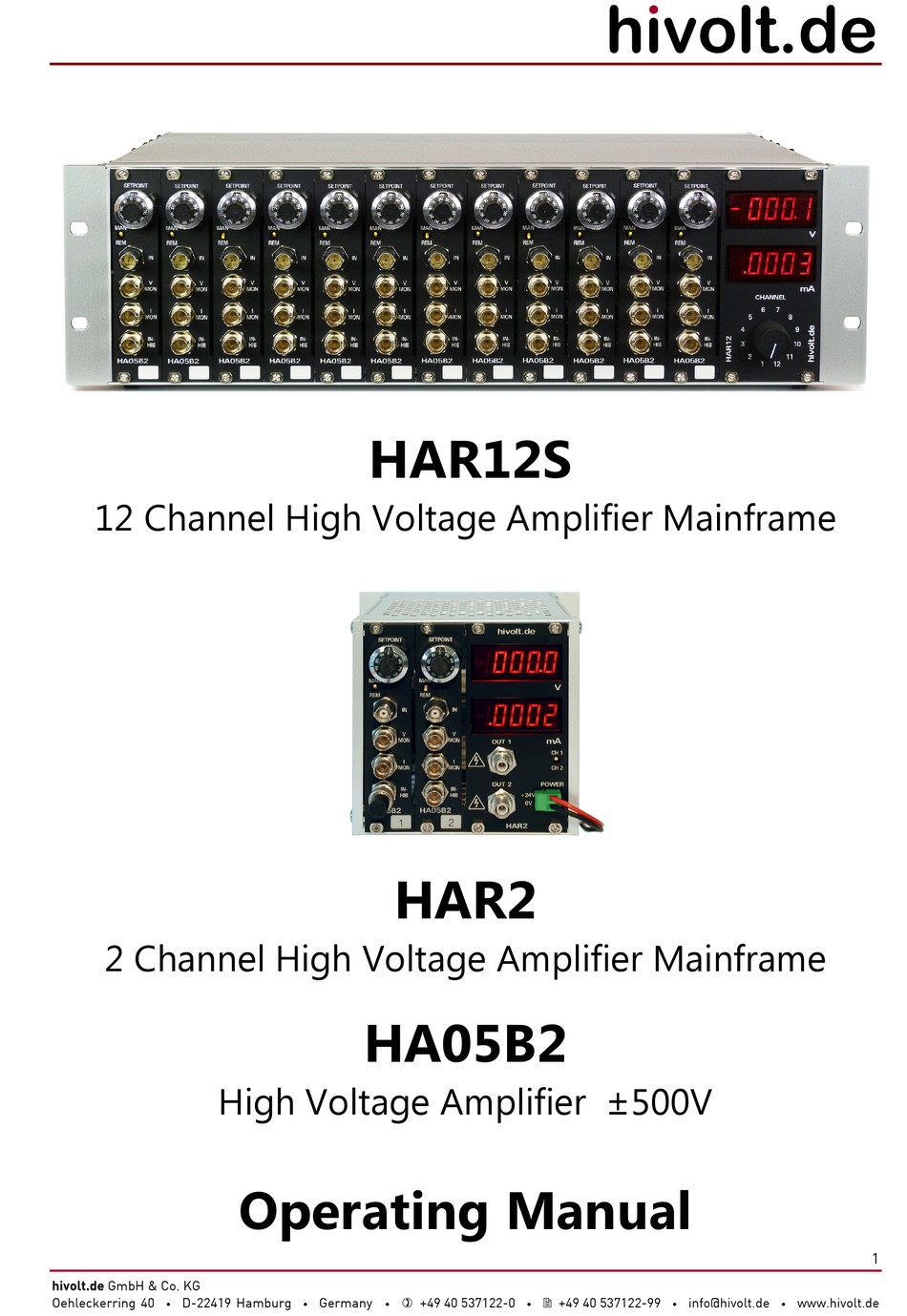

- Page 1 HAR12S 12 Channel High Voltage Amplifier Mainframe HAR2 2 Channel High Voltage Amplifier Mainframe HA05B2 High Voltage Amplifier ±500V Operating Manual hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de www.hivolt.de...
-
Page 2: Table Of Contents
External Connectors 5.12 Internal Connectors 5.13 Grounding 5.14 Troubleshooting 5.15 Maintenance 5.16 Cleaning DECLARATION OF CONFORMITY hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de www.hivolt.de ∙ ∙ ∙ ∙... -
Page 3: Warnings
Fuses have to be replaced by types as rated on the nameplate on the rear of the unit. Personal safety must be given the highest priority! hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 ... - Page 4 Sollte ein Ersatz der Netzsicherungen erforderlich sein, so ist sicherzustellen, dass nur Sicherungen der angegebenen Nennstromstärke und Nennspannung als Ersatz verwendet werden. Der Personensicherheit ist höchste Priorität einzuräumen! hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 ...
-
Page 5: Overview
A switch (CHANNEL) is provided for selection of the channel to be measured. The HAR12 is supplied by mains voltage. The HAR2 models are supplied by an external 24V Customized and full custom models are available on request. hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany ... -
Page 6: Block Diagram
I NHIB -540V I-MON 10R0 49R9 OFFSET V-MON INHI B INHIB The block diagram shows one amplifier channel. hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de www.hivolt.de ∙ ∙... -
Page 7: Control Voltage Input
The frequency response of V-MON is linear up to well above the upper cut-off frequency of the amplifiers. The monitor outputs are buffered and short-circuit-proof. They are able to drive capacitive loads (coaxial cables), but are not designed to drive cables with a low-impedance termination. hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany ... -
Page 8: Inhibit
This occurs if the final value of the desired output voltage can not be reached periodically. No damage to the amplifier modules will result from the different conditions mentioned. hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany ... -
Page 9: Interlock
Mating connector: Phoenix Mini-Combicon, 5 circuits, FK-MCP1.5_ 5-ST-3.81 Signal Direction Function +24V_IL 24V output for interlock circuit; protected against overload Interlock / bridge to +24V_IL Supply voltage GND hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de www.hivolt.de... -
Page 10: Technical Data
4 Technical Data Mainframe HAR12S – equipped with 12x HA05B2 Parameter Conditions Mains voltage 95 – 265VAC Mains frequency 47 – 63Hz Input current =115V , full load 1.0A Line =230V , full load 0.5A Line Mains fuses F1, F2 T3.15A, 250V, IEC127-2/V... -
Page 11: Ambient Conditions
Ambient temperature - Operation °C - Storage and Transportation °C Relative humidity Not condensing - Operation - Storage and Transportation hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de www.hivolt.de ∙... -
Page 12: Mechanical Specifications
Height Weight without amplifier modules Amplifier module HA05B2 / HA05B2_BA Parameter Unit Depth overall Width Height Weight 0.27 hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de www.hivolt.de ∙ ∙... -
Page 13: Operation
This symbol on the output terminals warns of the risk of electric shock. Temperature Compensation To avoid condensation within the device, it should be allowed to reach the room temperature. Please unpack the product at least two hours prior to power-up. hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany ... -
Page 14: Power Supply
1A output current minimum. Ventilation The HAR12S amplifier subrack may be used in rack mounted or bench top applications. In either case, sufficient space must be allowed for cooling air to reach the ventilation inputs on the front panels and for the fan exhaust air to exit from the rear of the unit. -
Page 15: Rack Mounting Har12
Set all of the SETPOINT potentiometers to 10.0. Set all input selector switches to REM. Connect the unit to a grounded power outlet and turn the unit on (HAR12S); connect the unit to a 24V power supply (HAR2) Connect a 50Ω BNC-termination to the INHIB input at channel 1. -
Page 16: External Connectors
D32 B32 Z32 5.13 Grounding The M4 ground bolt on the back panel of the device must be connected to the central grounding point of the test setup and to protective earth (HAR12S). hivolt.de GmbH & Co. KG Oehleckerring 40... -
Page 17: Troubleshooting
In that case the accumulated dust has to be removed by taking out the amplifier modules and blowing out the unit and the modules cautiously. The manufacturer specified lifetime of the HAR12S fans is >50000h. After about 6 years of continuous operation the fans might be replaced. -
Page 18: Declaration Of Conformity
EN 61326-1:2013 Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 1: General requirements Classification: Group 1, Class B Manufacturer: hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg 2016-10-04 Wulf Müller Managing Director hivolt.de GmbH & Co. KG...
