- Page 1 HA61-3B30 High Voltage Amplifier ±3000V Operating Manual hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de www.hivolt.de ∙ ∙ ∙ ∙ ∙ ∙...
- Page 2 COMMAND INTERFACE Command Structure Examples Error Numbers Command List Model-Specific Parameter Ranges Service Commands Status Word 1 Status Word 2 hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de www.hivolt.de ∙ ∙...
- Page 3 Status Word 3 SIGNAL GENERATOR SCPI PROTOCOL OPERATION / MAINTENANCE Troubleshooting Maintenance Cleaning Software Updates DECLARATION OF CONFORMITY hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de www.hivolt.de ∙ ∙ ∙ ∙...
- Page 4 Fuses have to be replaced by types indicated on the nameplate on the rear of the unit and in this • documentation. Personal safety must be given the highest priority! hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany...
- Page 5 Sollte ein Ersatz der Netzsicherungen erforderlich sein, so ist sicherzustellen, dass nur • Sicherungen der angegebenen Nennstromstärke und Nennspannung als Ersatz verwendet werden. Der Personensicherheit ist höchste Priorität einzuräumen! hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de...

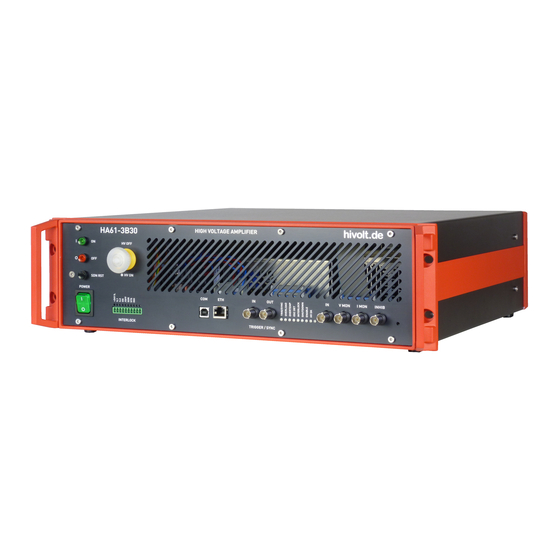

- Page 6 SCPI based command interface via USB and Ethernet 3 Description The HA61-3B30 is a fast precision high voltage amplifier with an optionally integrated signal generator in a 19" rack mountable case. This single channel amplifier provides output voltages of -3000V to +3000V at ±30mA (static) and >50mA peak (dynamic).
-
Page 7: Block Diagram
An implemented DDS/ARB signal generator is optionally provided (model HA61-3B30-G) to generate standard waveforms like sine wave, trapezoid, square wave, pulse, sawtooth and noise as well as fully arbitrary wave shapes. Parameters like waveform, amplitude, frequency, duty cycle, rise/fall time, offset, DC value, current limit and further functional parameters are controllable via the command interface. -
Page 8: Slew-Rate Limiter
PID I-component; seven discrete steps; 0 switches off the I-part of the PID controller; PIDI_L: PID I-limit; limits the influence of the I-component; PIDP_SP: PID P-component; typically below 20; hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de... -
Page 9: Current Limit
The Inhibit functions are not suitable to achieve a safe state at the amplifier output. They must not be used for safety relevant purposes. hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg... -
Page 10: Loading Conditions
(no shutdown yet) blink: shutdown due to overload OVERTEMP blink: shutdown due to overtemperature pulsed: temperature warning (no shutdown yet) hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de www.hivolt.de ∙... - Page 11 The HV OFF button on the front panel is internally looped into signals IL1 and IL2. If only one interlock / emergency stop path is used, route the signal to both inputs (IL1 and IL2). hivolt.de GmbH & Co. KG Oehleckerring 40...
- Page 12 The signal must not be used as source for safety-relevant functions! Operation using ON/OFF control EMERGENCY STOP INTERLOCK +24V_IL /OFF STS_HV STS_HV hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de www.hivolt.de ∙...
- Page 13 /OFF STS_HV STS_HV The device must be disconnected from the power supply before carrying out any operations on the test setup or before touching the output terminals. hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de...
-
Page 14: Technical Data
Increasing the load capacitance reduces output noise. # in the current version the slew-rate is limited to 30V/μs maximum. This results in a power bandwidth of 1.6kHz at 6000VPP output volage. hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg... -
Page 15: Ambient Conditions
Mechanical Specifications Parameter Unit Depth overall Depth case Width overall Width case Height 130.5 Weight without amplifier modules 14.5 hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de www.hivolt.de ∙ ∙ ∙... -
Page 16: Operation
This symbol on the output terminals warns of the risk of electric shock. Temperature Compensation To avoid condensation within the device, it should be allowed to reach the room temperature. Please unpack the product at least two hours prior to power-up. hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany... -
Page 17: Installation
This is especially important if the amplifier is mounted in a 19" rack. No wires or similar objects may project into the device through the ventilation slots. hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg... - Page 18 Mating connector: Phoenix Mini-Combicon, 10 circuits, FK-MCP 1,5/10-ST-3,81 / 1851122 Pin assignment: see 3.11 5.10 Ethernet (ETH) X3 Connector type: RJ45 The Ethernet port ETH is provided for the command interface hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de www.hivolt.de...
- Page 19 Otherwise, there is a risk of an electric shock. 5.15 Grounding The M4 ground nut on the back panel of the device must be connected to the central grounding point of the test setup and to protective earth. hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany...
-
Page 20: Command Interface
35.7°C (HV1), 42.3°C (HV2), 61.5°C (PA1), 64.3°C (PA2), 67.5°C (PA3) Request: $1XYZ<cr> invalid command; id=1 Response: $91<cr><lf> unknown command; id=1 hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de www.hivolt.de ∙... -
Page 21: Error Numbers
2 output stage 0…200.0; VT_PA3 [°C]: temperature 3 output stage Read output current momentary value -IO_M…IO_M IOAV [μA]: output current, actual value hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de www.hivolt.de ∙... - Page 22 0…65535 Read status word HV1 16 status bits (for service purpose only) 0…65535 Read status word HV2 16 status bits (for service purpose only) hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de...
- Page 23 1: digital setpoint VONVD 2: internal ARB/DDS signal generator (if implemented) Default: 0 Set static output voltage setpoint -VO_NOM…VO_NOM VONVD [V]: digital setpoint VONVD; Default: 0 hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de...
-
Page 24: Service Commands
Response Function Param. Parameter Start bootloader for main application; see 9.4. Start flash operation for high voltage generator code; see 9.4. hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de www.hivolt.de ∙... - Page 25 (IHVN_OVR_HV) STW_HVON 1 ≡ HV Generation Active (Signal HVON_HV & EN_HVON_HV & !SUM_SDN_HV) STW_HV_OK 1 ≡ +/-HV within HV Setpoint +/-10% (HV_OK_HV) hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de www.hivolt.de ∙...
-
Page 26: Status Word
1 ≡ Communication Error Cmd Interface (CMD_COMM_ERR) STW_SYS_ERR_HV 1 ≡ System Error HV (latched / HV) (SYS_ERR_SDN_HV) STW_VERSION_ERR 1 ≡ SW-Version does not match HW-Version hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de www.hivolt.de... -
Page 27: Troubleshooting
- Static load current exceeded (see section 3.8 for load conditions) Amplifier switches off, the - Poor ventilation OVERTEMP indicator lights up - Total load too large (see section 3.8 for load conditions) hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de... -
Page 28: Maintenance
Caution: disconnect the unit from the power supply before removing any modules or opening any covers. Further regular maintenance is not required. Cleaning If necessary, wipe the device with a slightly damp cloth. Do not use abrasive detergents or solvents. hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de... -
Page 29: Software Updates
7. on the left hand side select the 2nd green icon from the top, “Erasing and Programming”. 8. File Path: browse to the *.HEX file that should be programmed into the HA61 unit hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg... - Page 30 16. the flashing process will show up on the terminal; end message: " # resetting HV " 17. enter command $ RID to check the new software version number of the HV generator 18. the software update process is finished © hivolt.de GmbH&Co. KG, Hamburg, Germany As of 07/2020 Document History:...
-
Page 31: Declaration Of Conformity
EN 61326-1:2013 Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 1: General requirements Classification: Group 1, Class B Manufacturer: hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg 2020-06-21 Wulf Müller Managing Director hivolt.de GmbH & Co. KG...
