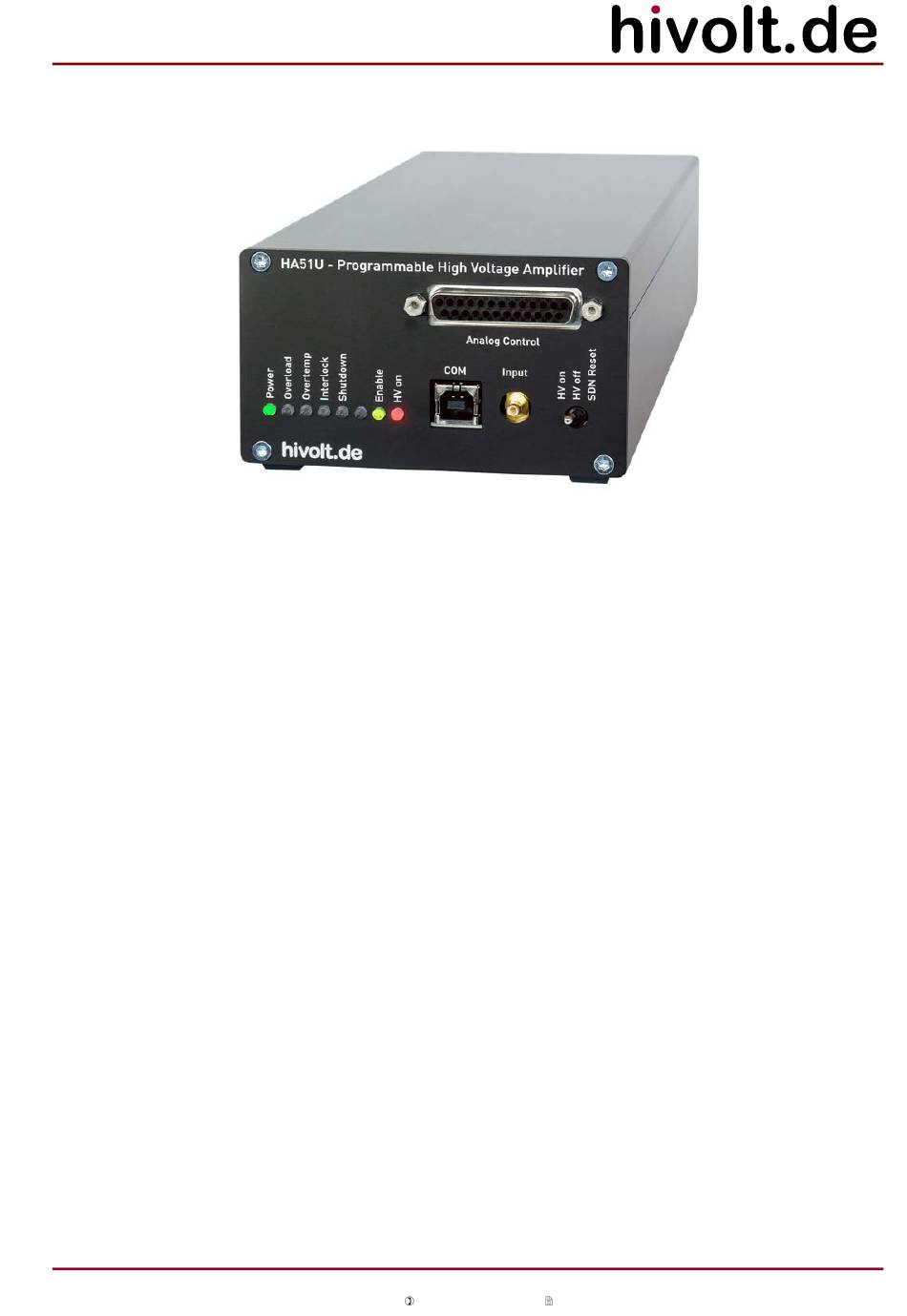

- Page 1 HA51U-3B2 High Voltage Amplifier ±3000V Operating Manual hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de www.hivolt.de ∙ ∙ ∙ ∙ ∙ ∙...
- Page 2 DIP Switch S3 4.15 LEDs HANDLING / MAINTENANCE Configuration Command Interface COM Port Programming Troubleshooting Maintenance Cleaning DECLARATION OF CONFORMITY hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de www.hivolt.de ∙ ∙ ∙ ∙...
- Page 3 The device may only be operated as a component of an overall structure that fully complies with • the regulations for working with high voltage systems. Personal safety must be given the highest priority! hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany...

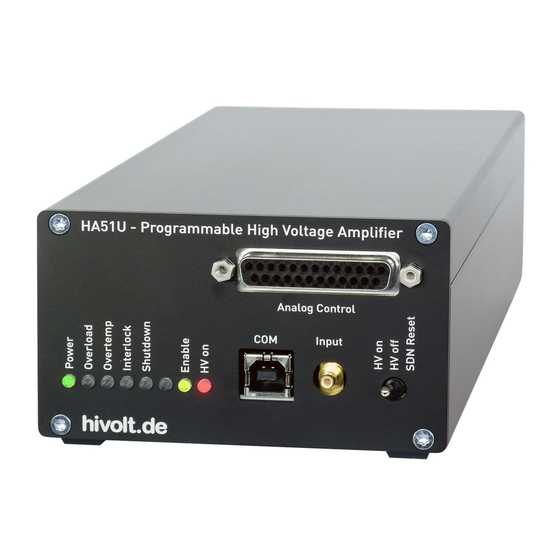

- Page 4 2 Description The single-channel high voltage amplifier HA51U-3B2 with bipolar output voltage is designed to drive capacitive and ohmic-capacitive loads. The amplifier is characterized by high speed, good stability and low noise. Piezo elements, electroactive polymers, electrorheological fluids, electrostatic deflecting electrodes and many other loads can be driven by this amplifier easily.
-
Page 5: Block Diagram
(coaxial cables), but are not designed to drive cables with a low-impedance termination. They are short-circuit proof. The monitor values can also be read using the commands $ RC, $ RP, $ RV. hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg... -
Page 6: Loading Conditions
Overtemp. It is important to ensure that the amplifier is well ventilated. The internal temperatures can be observed using the command $ RT. The switch-off threshold is around 80°C. hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg... -
Page 7: Technical Data
Scaling monitor output I 10mA ±1% Bandwidth monitor output I DC – ≥ 2kHz - Signal ground and high voltage ground are connected to the chassis ground / earth terminal. hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de... -
Page 8: Ambient Conditions
Typ. Unit Depth overall * Depth case Width Height 59.3 Weight * Depth overall without connection cables plugged in. 105.0 hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de www.hivolt.de ∙ ∙... -
Page 9: Warning Notices
This symbol on the case warns of potentially hot surfaces. Temperature Compensation To avoid condensation within the device, it should be allowed to reach the room temperature. Please unpack the product at least two hours prior to power-up. hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany... -
Page 10: Installation
If built into a device housing, the thermal losses can be removed through the structure of the housing, if its design allows for this. Otherwise, active ventilation is required. hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg... -
Page 11: Functional Test
The analog control signal can be fed via the SMB connector X2 or the D-Sub connector X1. The input differential amplifier can be adapted to signal sources with 50Ω output impedance or low output impedance. The characteristic can be changed using the command $ SS. hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg... - Page 12 Switching the output off via the ENABLE control input must not be used as a safety-relevant function! ENABLE OFF -> ENABLE ON may not be switched faster than 5 s in each level, otherwise shutdown will be triggered. hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany...
- Page 13 Otherwise, there is a risk of electric shock. 4.13 Earthing The M4 earth bolt on the back panel of the device must be connected to the central earthing point of the test set-up and to protective earth. hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany...
-
Page 14: Dip Switch S3
Arduino standard LED, Arduino "Pin 13" Enable output stage is enabled by signal X1.ENABLE or command $ EN1 HV on HV sources on hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de www.hivolt.de... - Page 15 Configuration, control, set value generation, shutdown states reset and measuring functions run through the command interface. Control and monitor signals are available at X1 for functional extension. The analog set value input can be used as a universal analog input. hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany...
-
Page 16: Command Interface
Response: $91<cr><lf> unknown command; id=1 Error numbers: unknown command wrong number format parameter too high parameter too low no error hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de www.hivolt.de ∙ ∙... - Page 17 Read Output Voltage and Output Current 3000…3000; VOAV [V]: Actual value of output voltage -10000… IOAV [μA]: Actual value of output current 10000 hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de www.hivolt.de ∙...
- Page 18 U5_ERR Neg HV Error The status bits AXPWFAIL, IL, IHV_OVR, T_OVR, SUM_SDN, U4_ERR, U5_ERR are set when the corresponding shutdown condition is present or has led to the shutdown. hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de...
- Page 19 The entire application software of the amplifier is available for free usage. The amplifier’s protection functions are independent of the controller and of the operation of the application program. hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg...
-
Page 20: Troubleshooting
Cleaning If necessary, wipe the device with a slightly damp cloth. Do not use abrasive detergents or solvents. © hivolt.de GmbH&Co. KG and WME Power Systems GmbH, Hamburg, Germany Arduino is a protected trademark of Arduino LLC. As of 10/2016... -
Page 21: Declaration Of Conformity
EMC requirements - Part 1: General requirements Classification: Group 1, Class B Manufacturer: WME Power Systems GmbH Oehleckerring 40 D-22419 Hamburg 2016-10-04 Wulf Müller Managing Director hivolt.de GmbH & Co. KG Oehleckerring 40 D-22419 Hamburg Germany +49 40 537122-0 +49 40 537122-99 info@hivolt.de www.hivolt.de ∙...
