SO N D ER
L I V I N G
Thank you for choosing this quality product. Be sure to check all packaging materials carefully for small parts that may have become
loose during shipment and place all parts on a non-abrasive surface.
IMPORTANT :These parts can be cumbersome and heavy to some people, therefore the assistance of two or more people is
recommended in order to prevent personal injury and ensure the furniture is not damaged during the assembly Process.
CARE INSTRUCTIONS
Dust often using a clean, soft, dry and lint-free cloth.
1.
Blot spills immediately and wipe with a clean, damp, cloth.
2.
We do not recommend the use of chemical cleansers,
3.
abrasives or furniture polish on our lacquered finish.
IMPORTANT SAFETY INSTRUCTIONS
Please read all instructions carefully before assembling.
1.
For your safety, assembly by two or more adults is strongly recommended.
2.
Keep instructions for future use.
3.
Use only vendor supplied hardware to assemble. Using unauthorized hardware could jeopardize the structural integrity of the item.
4.
PART LIST
A [ 1 ] TABLE TOP
B [ 2] EXTENDER SHELF
C [ 2] BASE
INSTRUCTIONS
1 .
Gently, lay the table top (A) upside down on a soft flat
surface. Attach the table base into the table top, align
and insert Allen bolt (1 ) together with lock washer (2)
and flat washer (3) to each fixed nuts under top through
the hole on the top of the base. Tighten all the bolts by
using wrench (4). DO NOT OVER TIGHTEN . See
FIGURE 01.
2.
After assembly, turn the table upright on a flat surface.
C

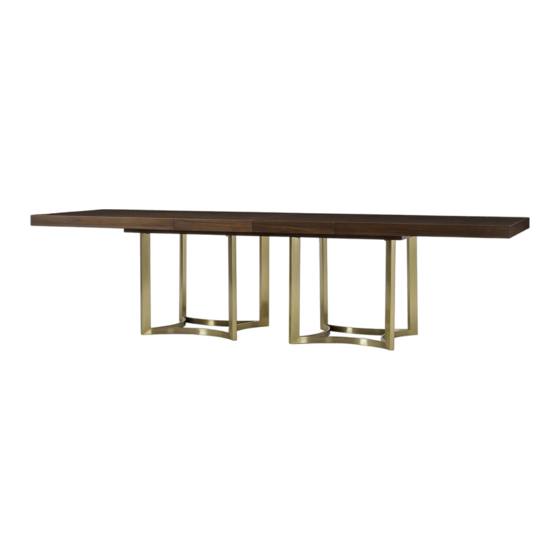

CHESTER EXTENDING DINING TABLE
HARDWARE LIST
NO
D ESC RI PT I O N
1
2
3
4
FIGURE 01
C
A
QTY
ALLEN HEAD BOLT
LOCK WASHER
PLAIN WASHER
ALLEN WRENCH
4
1
2
3
1 6
1 6
1 6
1
1 3 /
Advertisement
Table of Contents
Related Manuals for Sonder CHESTER FG0801380
Summary of Contents for Sonder CHESTER FG0801380
- Page 1 SO N D ER CHESTER EXTENDING DINING TABLE L I V I N G Thank you for choosing this quality product. Be sure to check all packaging materials carefully for small parts that may have become loose during shipment and place all parts on a non-abrasive surface. IMPORTANT :These parts can be cumbersome and heavy to some people, therefore the assistance of two or more people is recommended in order to prevent personal injury and ensure the furniture is not damaged during the assembly Process.
- Page 2 Unlock the metal locks under Table top , open the top panel, put the Table leaves (B) at the middle of table top. Make sure the exposed tennon on the side edge of panels align with pre-drilled holes on the side edge of panels.
- Page 3 OPTION: THE TABLE WITHOUT EXTENDER SHELF Unlock the metal locks under Table top, open the top panel maximum, then gently bring the extender shelf and remove from the table top. See FIGURE A. Step by step bring the each of extender shelf and place them into the inside of the table top as in FIGURE B .
