Thank you for choosing this quality product. Be sure to check all packaging materials carefully for small parts that may have become
loose during shipment and place all parts on a non-abrasive surface.
IMPORTANT :These parts can be cumbersome and heavy to some people, therefore the assistance of two or more people is
recommended in order to prevent personal injury and ensure the furniture is not damaged during the assembly Process.
PART LIST
A [ 1 ] TABLE TOP
B [ 2] TABLE LEAVES
C [ 2] BASES
INSTRUCTIONS
1.

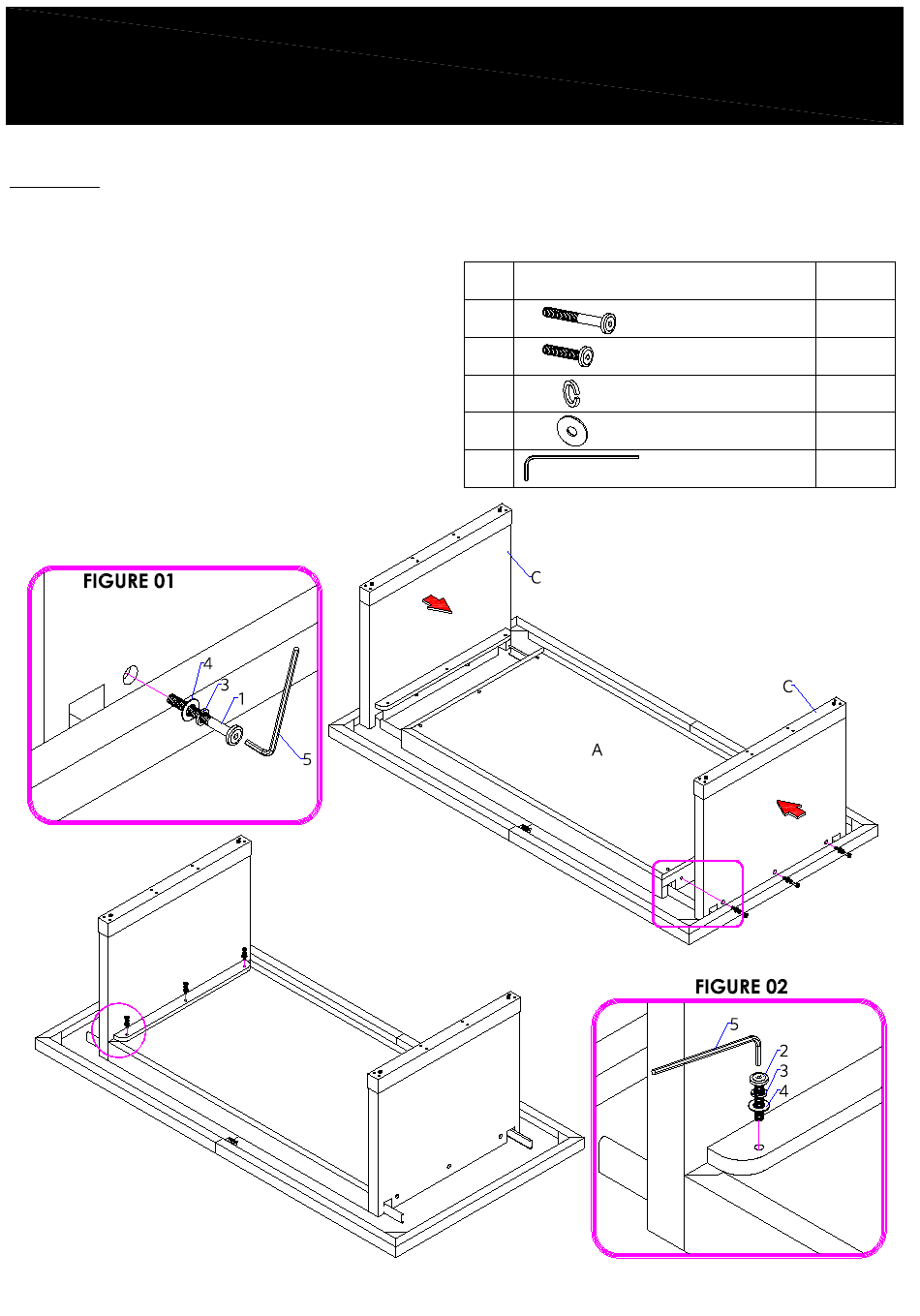

Gently, lay the table top (A) upside down on a soft
flat surface. Attach the table base into the table top,
align and insert Allen bolt (1 ) together with lock
washer (3) and flat washer (4) to each hole under
top through the hole on the stretcher of the base.
Tighten all the bolts by using wrench (5). DO NOT
OVER TIGHTEN. See FIGURE 01.
2.
At the support rail installed on the bases, insert the
Allen bolts (2) together with lock washer (3) and flat
washer (4). Tighten all the bolts by using wrench (5).
DO NOT OVER TIGHTEN. See FIGURE 02.
RAFFLES DINING TABLE
HARDWARE LIST
NO
D ESC RI PT I O N
1
2
3
4
5
QTY
ALLEN HEAD BOLT
M8x70MM
ALLEN HEAD BOLT
M8x40MM
LOCK WASHER
PLAIN WASHER
ALLEN WRENCH
6
6
12
12
1
1 2 /
Advertisement
Table of Contents
Related Manuals for Sonder RAFFLES
Summary of Contents for Sonder RAFFLES
- Page 1 SO N D ER RAFFLES DINING TABLE L I V I N G Thank you for choosing this quality product. Be sure to check all packaging materials carefully for small parts that may have become loose during shipment and place all parts on a non-abrasive surface.
- Page 2 Unlock the locker under Table top , open the top panel, put the Table leaves (B) at the middle of table top. Make sure the exposed tennon on the side edge of panels align with pre-drilled holes on the side edge of panels.
