SO N D ER
L I V I N G
Thank you for choosing this quality product. Be sure to check all packaging materials carefully for small parts that may have become loose during shipment and
place all parts on a non-abrasive surface.
IMPORTANT :These parts can be cumbersome and heavy to some people, therefore the assistance of two or more people is recommended in order to prevent
personal injury and ensure the furniture is not damaged during the assembly Process.
PART LIST
A. [ 1] TABLE TOP
B. [ 2] BASE
C. [ 1] MOUNTING FRAME
D. [ 1] STRETCHER FRAME
INSTRUCTIONS
1.
Assembly base frame by using Allen bolt (4) with lock washer (5) and
flat washer (6). Refer FIGURE 1 .
B
C
B
D

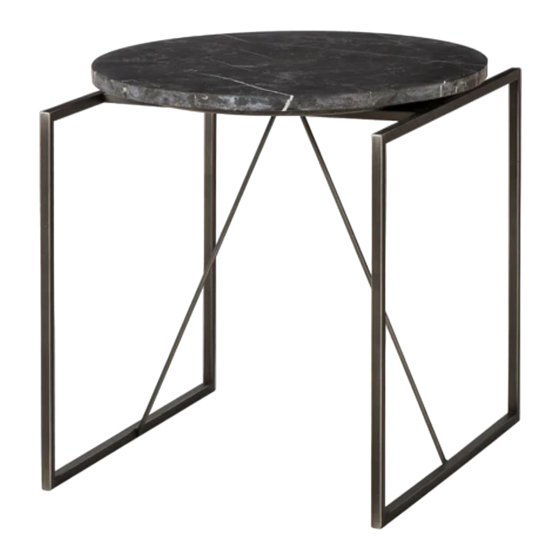

GEORGINA SIDE TABLE / NATURAL
HARDWARE LIST
NO
D ESC RI PT I O N
1
2
3
4
5
6
7
7
ALLEN HEAD BOLT
M8 x 20mm
LOCK WASHER
Ø1 4
PLAIN WASHER
Ø1 9
ALLEN HEAD BOLT
M6 x 1 5mm
LOCK WASHER
Ø1 0
PLAIN WASHER
Ø1 2
ALLEN WRENCH
5 6
4
FIGURE 1-A
7
4
5
6
FIGURE 1-B
QTY
4
4
4
6
6
6
2
1 2 /
Advertisement
Table of Contents
Related Manuals for Sonder GEORGINA FG0701305
Summary of Contents for Sonder GEORGINA FG0701305
- Page 1 SO N D ER GEORGINA SIDE TABLE / NATURAL L I V I N G Thank you for choosing this quality product. Be sure to check all packaging materials carefully for small parts that may have become loose during shipment and place all parts on a non-abrasive surface.
- Page 2 Gently, place the table top (A) upside down on the soft and flat surface then attach the assembled base frame to the top by using Allen bolt (1) with lock washer (2) and flat washer (3). See FIGURE 2 . Turn the table up.
