Sonder CHARLIE FG0801340 Assembly Instructions

SO N D ER
L I V I N G
Thank you for choosing this quality product. Be sure to check all packaging materials carefully for small parts that may have become
loose during shipment and place all parts on a non-abrasive surface.
IMPORTANT :These parts can be cumbersome and heavy to some people, therefore the assistance of two or more people is
recommended in order to prevent personal injury and ensure the furniture is not damaged during the assembly Process.
PART LIST
A [ 1 ] TABLE TOP
B [ 2] LEGS
C [ 1] STRETCHER
INSTRUCTIONS
1 . Place the leg (B) upright. Secure the threaded rod (1 ) to
the fixed nut in the leg (B) by simply turning it manually.
Gently, lay the table top (A) upside down on a soft flat
surface. Place the leg upright and align the leg with the
rails underneath of the table top. Put the leg (B) up
against the top (A) so the threaded rods (1 ) go through
the bore holes. Insert curved washer (2), lock washer (3)
and place hex nuts (4) on threaded rod (1 ) then tighten
the hex nuts (4) with wrench (5) provided, as illustrated
in FIGURE 01 .
2. Repeat the above procedure with the other leg (B) to
attach it to the top (A).
HARDWARE LIST
FIGURE 01

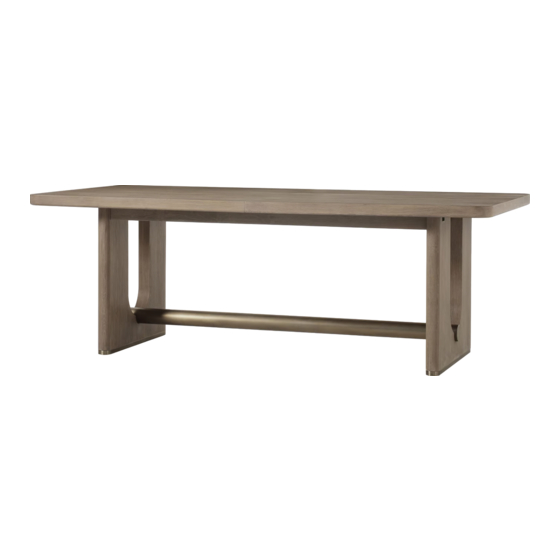

CHARLIE DINING TABLE
NO D ESC RI PT I O N
1
2
3
4
5
6
7
8
2
3
4
THREADED ROD
CURVED WASHER
LOCK WASHER
HEXAGONAL NUT
SPANNER WRENCH
ALLEN HEAD BOLT
PLAIN WASHER
ALLEN WRENCH
QTY
4
4
6
4
1
2
2
1
1 2 /
