PO841
Check out easy
mounting of your kitchen
Front with integrated handle
L01460,prato
L01480,prato
L01440,prato
L01450,prato
L02640,prato
L02680,prato
L02650,prato
L02660,prato
L03851,prato
L03881,prato
L03841,prato
L03861,prato
50 cm
60 cm
80 cm
40 cm
24-02-2020 1a
/
1 /
9
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kvik PO841
Summary of Contents for Kvik PO841

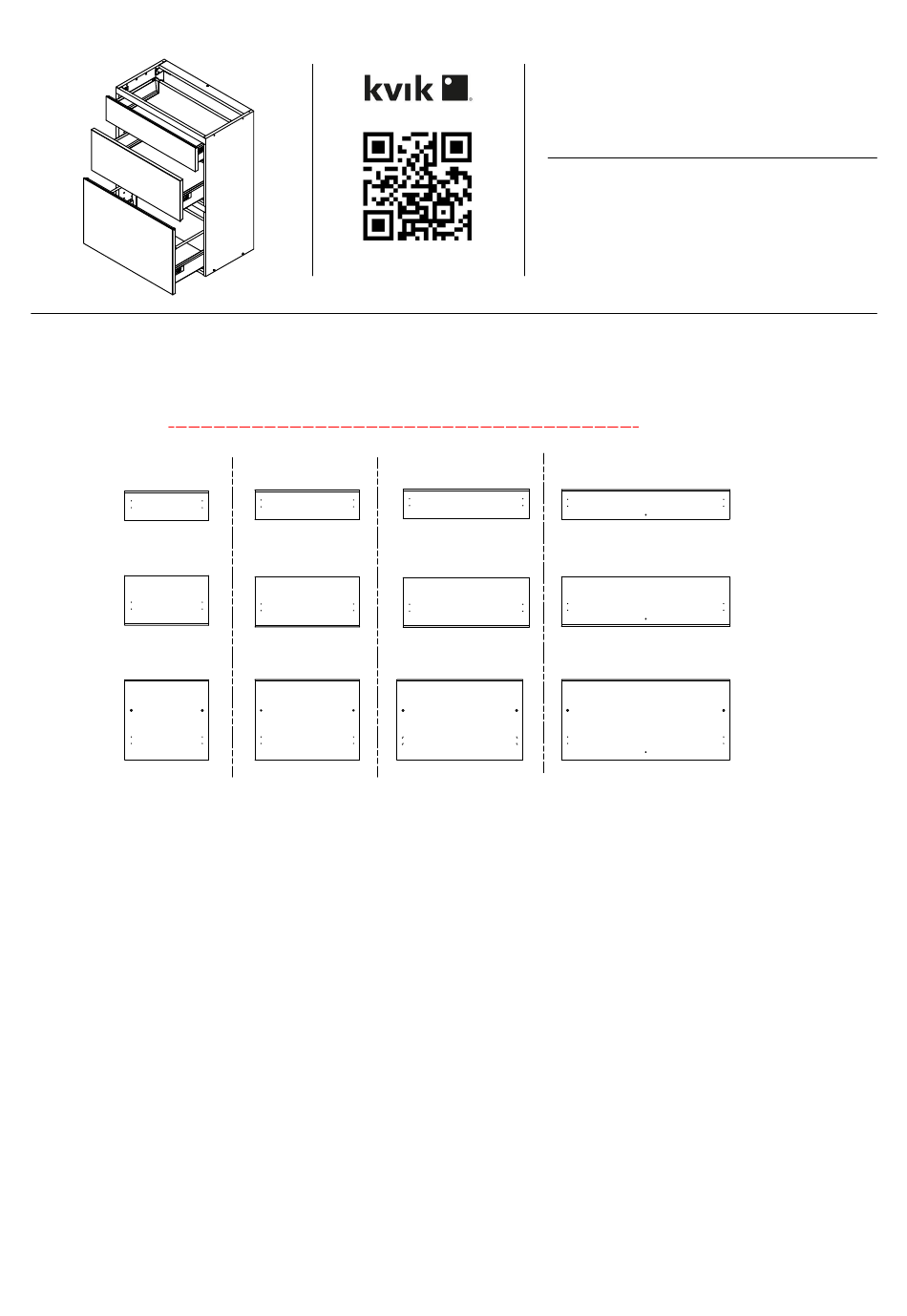

- Page 1 PO841 Check out easy mounting of your kitchen Front with integrated handle L01460,prato L01480,prato L01440,prato L01450,prato L02640,prato L02680,prato L02650,prato L02660,prato L03851,prato L03881,prato L03841,prato L03861,prato 50 cm 60 cm 80 cm 40 cm 24-02-2020 1a...
- Page 2 PO841 Check out easy mounting of your kitchen DO80,***,000 / 176 (Suspension list) 1 pcs (Side) (Base-top) (Back panel) 1 pcs (Suspension list) 2 pcs 1 pcs 1 pcs (List back) 1 pcs BP21XXX Drawer slide left Drawer slide right...
-
Page 3: Side Left
PO841 FIG. Side Left Screw flh 3,5x15 mm 4 pcs Euro screw 6,3x11 mm 4 pcs Screw flh 3,5x15 mm (Side) Screw flh 3,5x15 mm 6 pcs Euro screw 6,3x11 mm Drawer slide left 3 pcs FIG. Side Right Screw flh... - Page 4 PO841 FIG. (List back) (Suspension list) (Suspension list) NB!!! (Side) (Base-top) FIG. (Back panel) 24-02-2020 1a...
- Page 5 PO841 FIG. Screw flh 3,5x45 mm 2 pcs (Side) FIG. Screw flh 3,5x45 mm 3 pcs Screw flh 3,5x45 mm 24-02-2020 1a...
- Page 6 PO841 FIG. Euro screw 6,3x11 mm 4 pcs Angle 46x43 mm 2 pcs BP21XXX Alu profil FIG. BP21XXX Alu profil Flush Screw flh 3,5x15 mm 4 pcs 24-02-2020 1a...
- Page 7 PO841 FIG. Angle Screw flh 45x55x30x2 mm 3,5x15 mm 2 pcs 4 pcs FIG. Euroscrew 4,2x9,5 4 pcs BP01907 R 48,5x30 mm 1 pcs Always use # 2 in right side Euroscrew 4,2x9,5 BP01907 L 48,5x30 mm 1 pcs BP21XXX...
- Page 8 PO841 FIG. NB: Always use # 1 in Left side Euro screw 5,8x15 2 pcs Screw flh 3,5x15 mm BP21XXX 2 pcs Alu profil FIG. Drawer with L014*0,prato front Drawer with L026*0,prato front Drawer with L038**,prato front 24-02-2020 1a...
- Page 9 PO841 Installation, please read instruction SV12224 SV12224 How to wall mount a cabinet 19-12-2019 1a 24-02-2020 1a...
