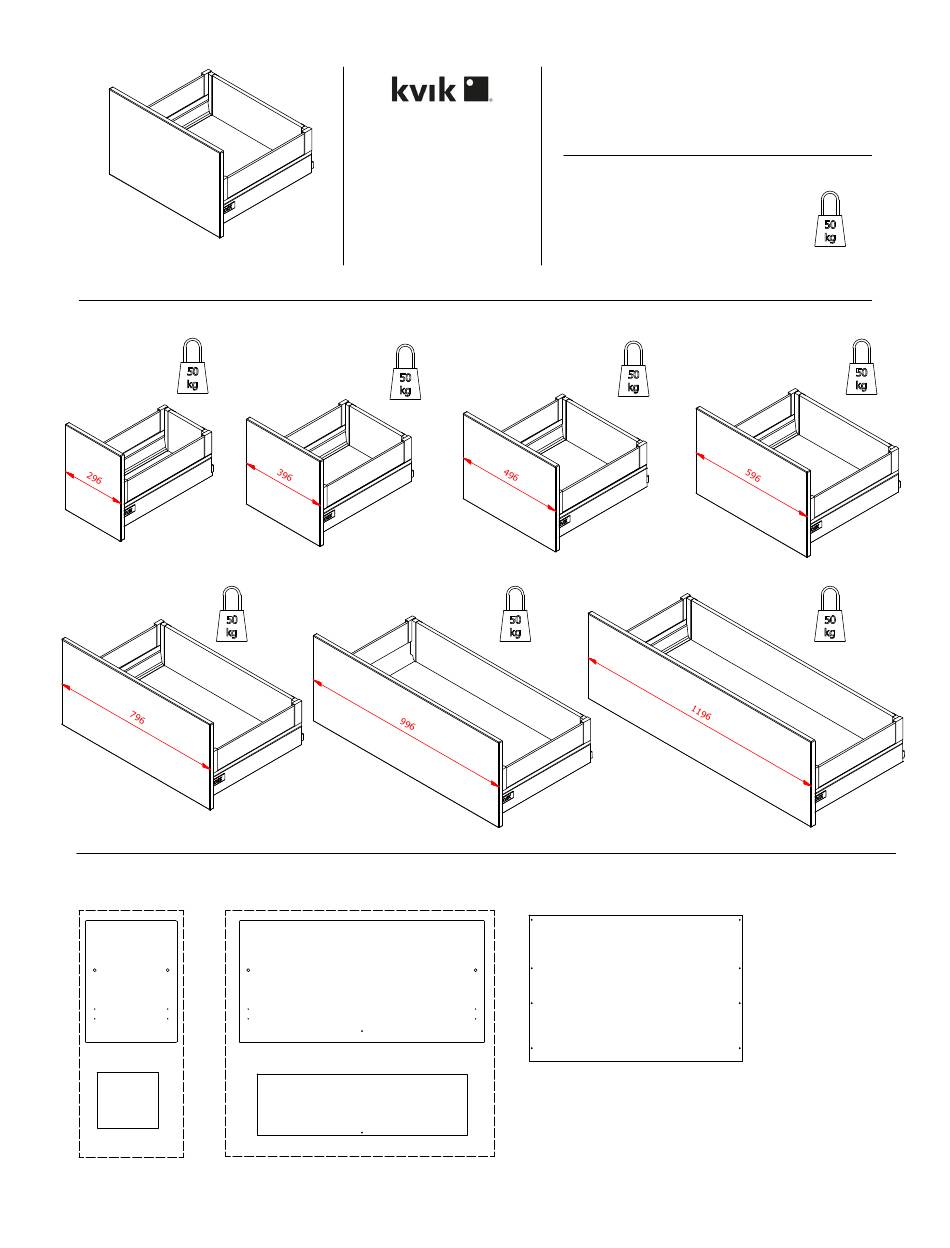

- Page 1 Senti drawer with glass sides P15675-P15685 P15705-P15715 50 cm 40 cm 60 cm 30 cm 80 cm 100 cm 120 cm 30-60 cm 80-120 cm Drawer front Drawer front Drawer base 1 pcs 1 pcs 1 pcs Drawer back Drawer back 1 pcs 1 pcs 07-04-2016 2...
- Page 2 Senti drawer with glass sides P15675-P15685 P15705-P15715 P15675+P15685-P15705-P15715 Fitting for Drawer side Right Tip on Drawer side Left Tip on drawer front 73,7x28x1,2 mm (Glass) blumotion unit (Glass) blumotion unit 2 pcs 2 pcs 1 pcs Right Left 1 pcs 1 pcs 1 pcs Fitting for...
- Page 3 Senti drawer with glass sides FIG. Tip on blumotion cabinet profile L / R Trigger L / R FIG. Drawer side L / R (Glass) Tip on blumotion unit L / R 07-04-2016 2...
- Page 4 Senti drawer with glass sides FIG. Drawer side Left (Glass) Click Fitting for drawer back Left Drawer side Right Fitting for (Glass) drawer back Right Click FIG. Start with these Drawer base Euro screw 6,3x11 mm 4~8 pcs 07-04-2016 2...
- Page 5 Senti drawer with glass sides FIG. 60-120 cm Synchronizing Click FIG. 60-120 cm Screw flh 3,5x15 mm 2 pcs Clamp 1 pcs 07-04-2016 2...
- Page 6 Senti drawer with glass sides FIG. 30-60 cm Flush Drawer back Screw flh 3,5x15 mm 6 pcs FIG. 80-120 cm Flush Screw flh 3,5x15 mm 6 pcs Drawer back Screw flh 3,5x45 mm 1 pcs 07-04-2016 2...
- Page 7 Senti drawer with glass sides FIG. 30-60 cm OBS!!! No bumpers Drawer front Screw flh 3,5x15 mm 8 pcs Fitting for drawer front (glass) 2 pcs FIG. 80-120 cm OBS!!! No bumpers Drawer front Screw flh 3,5x15 mm 8 pcs Leaf screw 5,2x50 mm 1 pcs...
- Page 8 Senti drawer with glass sides FIG. A / B Drawer front Click Click FIG. Fitting for drawer front 2 pcs Click Click 07-04-2016 2...
- Page 9 Senti drawer with glass sides FIG. Glass side 2 pcs PUSH Fitting for drawer back Left Click Fitting for Click drawer back Right 07-04-2016 2...
- Page 10 Senti drawer with glass sides Adjustment 07-04-2016 2 10 /...
- Page 11 Senti drawer with glass sides 80-120 cm Screw flh 3,5x15 mm 2 pcs 73,7x28x1,2 mm 73,7x28x1,2 mm 07-04-2016 2 11 /...
- Page 12 Senti drawer with glass sides Dismounting Fig 1 Fig 2 Fig 4 Fig 3 07-04-2016 2 12 /...
