Drawer front
KS03256
KS03256,76
OR
Side
Side
2 pcs
L03260,355-359
Drawer front
1 pcs
Aventos
Aventos
Cap left
Flip up L/R
2 pcs
1 pcs
BP00011-BP00250
Bumper
Screw flh
7x1,5 mm
3,5x45 mm
1 pcs
14 pcs
30-08-2018 0a
/
Check out easy
mounting of your kitchen
DT32,060,000 / 176
K71157
Base-top
OR
K11155,76
Base top
2 pcs
Aventos
Aventos mounting plate
Cap right
1 pcs
2 pcs
Screw flh
45x55x30x2 mm
3,5x15 mm
4 pcs
PT530,060
K13532
Back panel
1 pcs
ID21564
Cap
Screw flh
10x5
4x35
6 pcs
2 pcs
Angle
2 pcs
Aventos
ID21564
Push open
Plate for magnet
w magnet
1 pcs
1 pcs
Euro screw
6,3x11 mm
2 pcs
1 /
10
Advertisement
Related Manuals for Kvik PT530.060
Summary of Contents for Kvik PT530.060

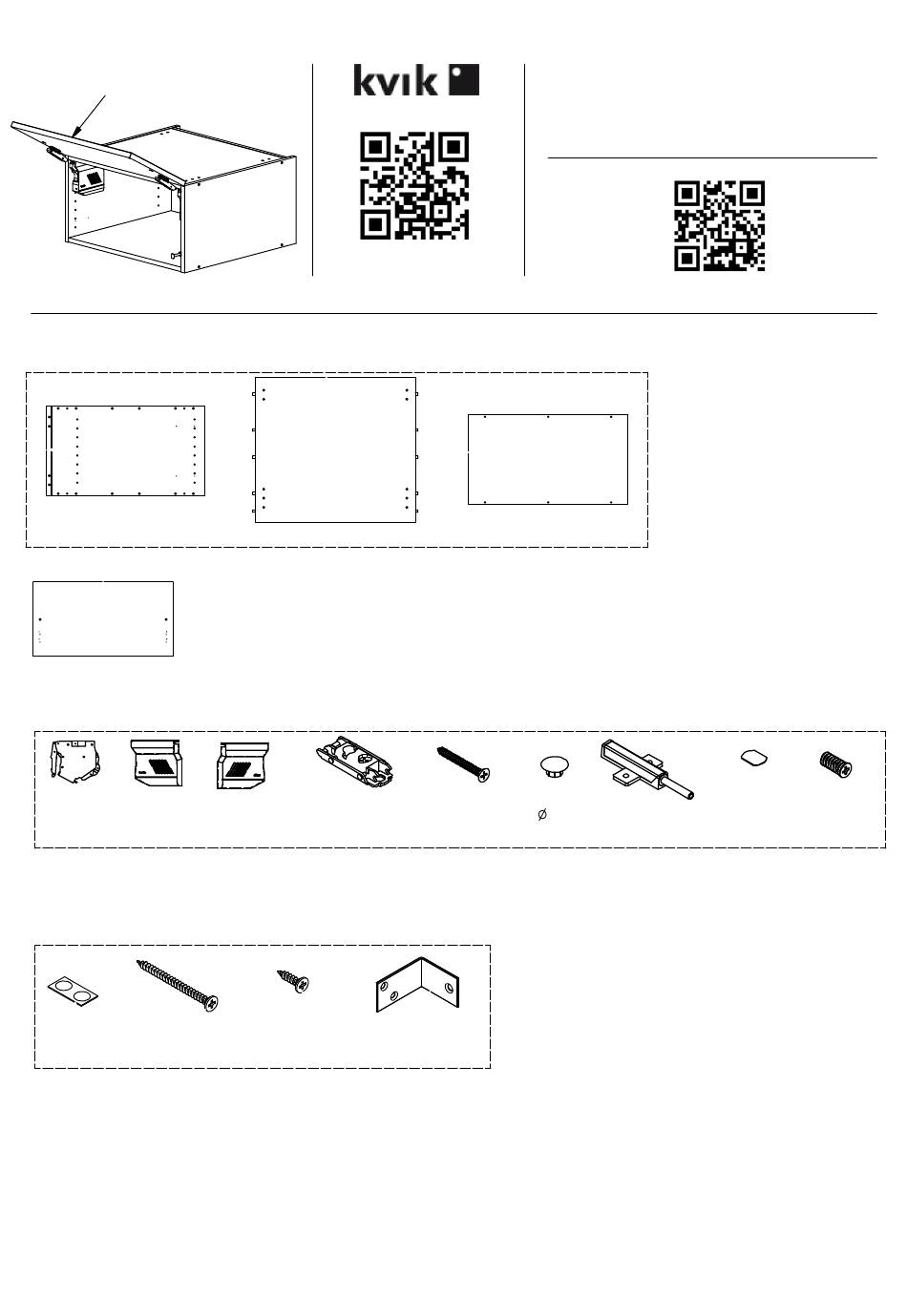

- Page 1 L03260,355-359 PT530,060 Drawer front Check out easy mounting of your kitchen Aventos DT32,060,000 / 176 K71157 Base-top KS03256 KS03256,76 K13532 Side Side Back panel K11155,76 Base top 2 pcs 1 pcs 2 pcs L03260,355-359 Drawer front 1 pcs ID21564 Euro screw Aventos ID21564 Aventos...
- Page 2 PT530,060 FIG. Side Left Hole dept Min 5mm Max 10mm KS03256,76 Side KS03256 Side FIG. Side Left Aventos Flip up R/L 1 pcs KS03256,** Side KS03256 Side 30-08-2018 0a...
- Page 3 PT530,060 FIG. Side Left Screw flh 4x35 3 pcs KS03256,76 Side KS03256 Side FIG. Side Rihgt KS03256 Side Hole dept Min 5mm Max 10mm KS03256,76 Side 30-08-2018 0a...
- Page 4 PT530,060 FIG. Side Rihgt Aventos Flip up R/L 1 pcs KS03256 Side KS03256,76 Side FIG. Side Rihgt Screw flh 4x35 3 pcs KS03256 Side KS03256,76 Side 30-08-2018 0a...
- Page 5 PT530,060 FIG. K11155,76 Base top K71155 Base-top K11155,76 Base top K71155 Base-top KS03256,76 Side KS03256 Side FIG. KS03256,76 Screw flh Side 3,5x45 mm 4 pcs KS03256 Side 30-08-2018 0a...
- Page 6 PT530,060 FIG. Screw flh 3,5x45 mm 4 pcs FIG. K13532 Screw flh Back panel 3,5x45 mm 6 pcs 30-08-2018 0a...
- Page 7 PT530,060 FIG. Screw flh 3,5x15 mm 4 pcs Angle 45x55x30x2 mm 2 pcs FIG. Push -openw-magnet 1 pcs Euro screw 6,3x11 mm 2 pcs Adjustment 30-08-2018 0a...
- Page 8 PT530,060 FIG. Screw flh 3,5x15 mm 4 pcs Aventos mounting plate Bumper 10x5 2 pcs 7x1,5 mm 2 pcs L03260,355-359 Drawer front Bumper 7x1,5 mm L03260,355-359 Drawer front Click 30-08-2018 0a...
- Page 9 PT530,060 Adjustment Click / Aventos Aventos Cap Left Cap right 30-08-2018 0a...
- Page 10 PT530,060 Close the door and press Place plate for magnet on the magnet Remove the protection paper 30-08-2018 0a 10 /...
