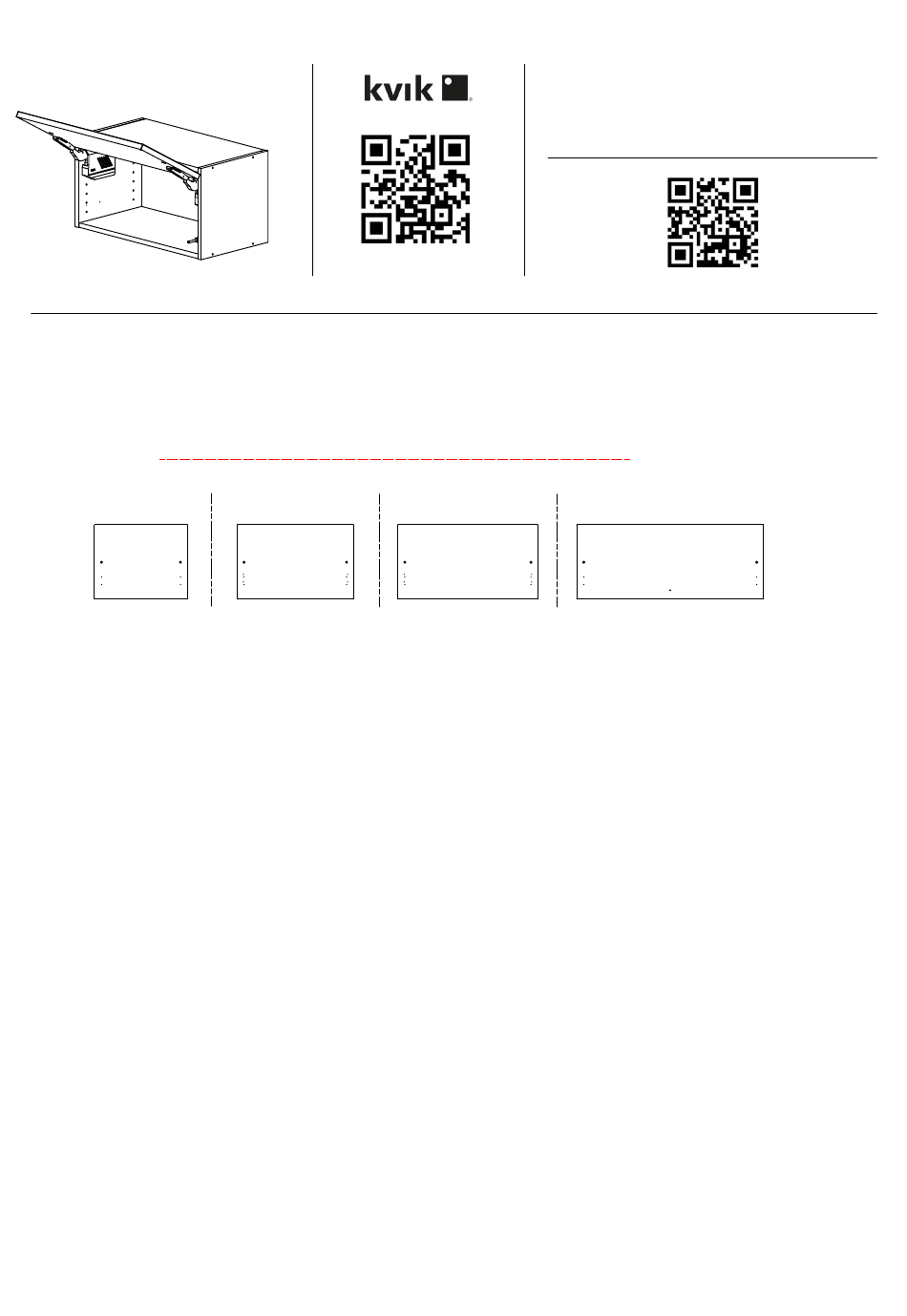

- Page 1 PT130 Check out easy Aventos mounting of your kitchen Front without integrated handle L03240,prato L03250,prato L03260,prato L03280,prato 50 cm 60 cm 40 cm 80 cm 28-01-2021 1b...
- Page 2 PT130 Check out easy Aventos mounting of your kitchen FR032,***,000 / 176 (Suspension list) (Suspension list) (Back panel) (Base-top) (Side) 1 pcs 1 pcs 1 pcs 2 pcs 2 pcs ID21563 / ID21564 Aventos Aventos Aventos Screw flh Flip up L/R...
- Page 3 PT130 FIG. Side Left 6-5mm deep (Side) FIG. Side Left Aventos Flip up R/L Screw flh 4x35 3 pcs (Side) 28-01-2021 1b...
- Page 4 PT130 FIG. Side Right 6-5mm deep (Side) FIG. Side Right Aventos Flip up R/L Screw flh 4x35 3 pcs (Side) 28-01-2021 1b...
- Page 5 PT130 FIG. (Base-top) (Suspension list) (Base-top) NB!!! Glue 15 gr Glue 15 gr (Side) FIG. (Back panel) 28-01-2021 1b...
- Page 6 PT130 FIG. Drying Min: 20 min (Side) FIG. Screw flh Angle 3,5x15 mm 45x55x30x2 mm 4 pcs 2 pcs 28-01-2021 1b...
- Page 7 PT130 FIG. Push-open w-magnet 1 pcs Euro screw 6.3x11mm 2 pcs Adjustment FIG. Screw flh 3,5x15 mm 4 pcs Bumper Aventos mounting plate 7x1,5 mm 2 pcs 10x5 2 pcs 10x5 2 pcs L032*0,prato Drawer front Bumper 7x1,5 mm 28-01-2021 1b...
- Page 8 PT130 FIG. L032*0,prato Drawer front Click Adjustment 28-01-2021 1b...
- Page 9 PT130 FIG. Click Aventos Cap left FIG. Close the door and press Place plate for magnet on the magnet Remove the protection paper 28-01-2021 1b...
- Page 10 PT130 Installation, please read instruction SV12224 SV12224 How to wall mount a cabinet 19-12-2019 1a 28-01-2021 1b 10 /...
