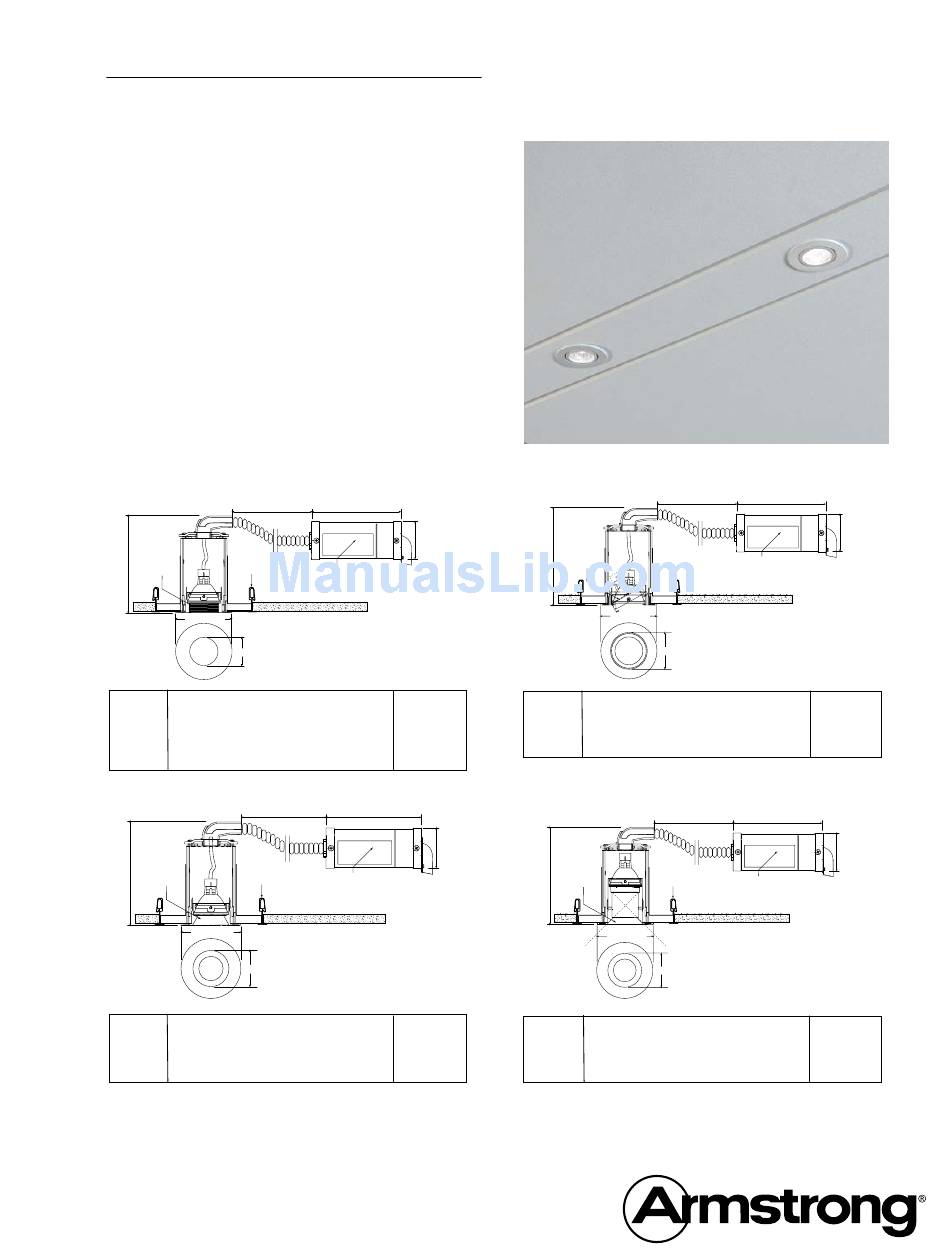

TECHZONE Ceiling System
™
R e c e s s e d D o w n l i g h t F i x t u r e s
Lynx
Lynx small aperture recessed MR16 downlights boast a small
3.5≤ round trim and a 1.7≤ to 2.3 round aperture (depending
on model).
Four models are offered: Fixed downlight with
internal black baffle, adjustable gimbal trim with 30 degree tilt,
smooth splayed regress trim, and smooth splayed regress trim
with 45 degree cut-off. All
models include a housing and electronic transformer with a
cylindrical metal enclosure and separate wiring compartment.
The enclosure is connected to the housing via 18≤ of flexible
conduit.
The small size of the Lynx fixtures ensure a clean, unobtrusive
presence in the ceiling while maintaining a high level of down-
lighting performance.
18.00˝
Flexible Conduit
Ribbed
6.00˝ Baffle Acoustical Tee
Flat Black Mounting Brackets
3.50˝ dia.
1.70˝ dia.
Item No. Description
TZ3001 3.5≤ Round Fixed Downlight Trim with
Internal Black Baffle – Includes Housing with
Integral Electronic Transformer and J-box –
Trim face has Armstrong White finish with
flat black internal finish
18.00˝
Flexible Conduit
Smooth
Splayed Acoustical Tee
6.00˝
Mounting Brackets
Regress
3.50˝ dia.
2.30˝ dia.
Item No. Description
TZ3003 3.5≤ Round Smooth Splayed Regress Trim –
Includes Housing with Integral Electronic
Transformer and J-box – Trim face has
Armstrong White finish
RSA Lighting
7945 Orion Avenue
Van Nuys, CA 91406
818-349-3030
www.cooperlighting.com/common/techzone/
CS-3811-910
6.00˝
2.00˝
Integral Electronic Low Voltage
Transformer with Thermal Protection
and Wiring Compartment in
Cylindrical Enclosure
Lamp
12V MR16
37W Max
6.00˝
2.00˝
Integral Electronic Low Voltage
Transformer with Thermal Protection
and Wiring Compartment in
Cylindrical Enclosure
Lamp
12V MR16
37W Max
Lynx - Item Number TZ3002
18.00˝
Flexible Conduit
30° Tilt Acoustical Tee
6.00˝
Adjustment Mounting Brackets
3.50˝ dia.
2.10˝ dia.
Item No. Description
TZ3002 3.5≤ Round Adjustable Gimbal Trim –
Includes Housing with Integral Electronic
Transformer and J-box – Trim face has
Armstrong White finish
18.00˝
Flexible Conduit
Smooth
Splayed
Regress with Acoustical Tee
6.00˝
45° Cut-Off Mounting Brackets
3.50˝ dia.
2.30˝ dia.
Item No. Description
TZ3004 3.5≤ Round Smooth Splayed Regress Trim
with 45 degree cut-off – Includes Housing with
Integral Electronic Transformer and J-box –
Trim face has Armstrong White finish
6.00˝
2.00˝
Integral Electronic Low Voltage
Transformer with Thermal Protection
and Wiring Compartment in
Cylindrical Enclosure
Lamp
12V MR16
37W Max
6.00˝
2.00˝
Integral Electronic Low Voltage
Transformer with Thermal Protection
and Wiring Compartment in
Cylindrical Enclosure
Lamp
12V MR16/
MR16 IRC
37W Max
