TECHZONE Ceiling System
™
R e c e s s e d D o w n l i g h t F i x t u r e s
Ar mst ro ng T ech Zon e
®

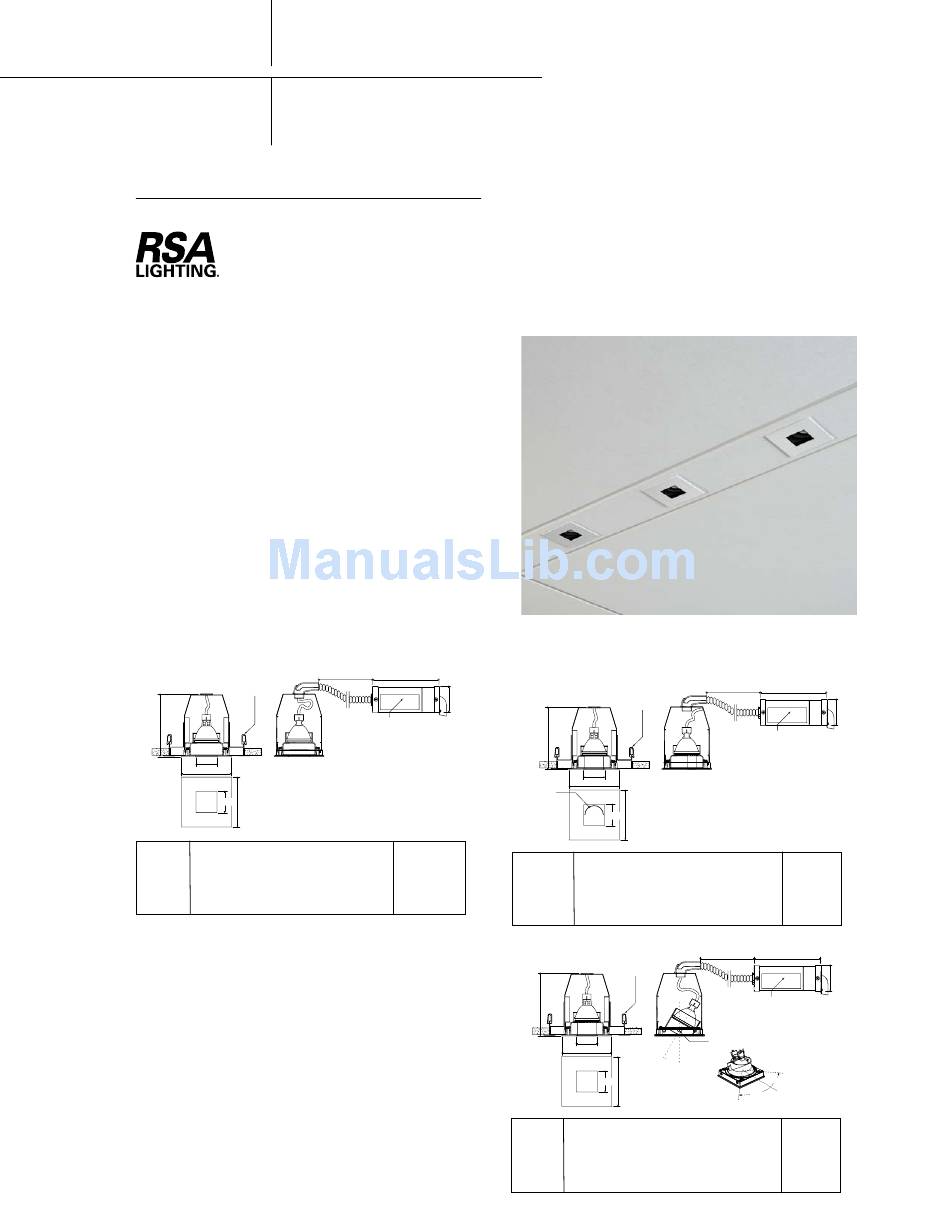

Mini Accurus
Mini Accurus small aperture recessed MR16
downlights boast a small 3.9≤ square trim and
a 1.7≤ square aperture.
Three models are offered: Fixed downlight, Wall
Wash with integral aluminum kicker reflector, and
an adjustable accent trim with 30 degree tilt X 90
degree rotation. All models include a housing and
electronic transformer with a cylindrical metal
enclosure and separate wiring compartment.
The enclosure is connected to the housing via
18≤ of flexible conduit.
The small size of the Mini Accurus fixtures ensure
a clean, unobtrusive presence in the ceiling while
maintaining a high level of downlighting performance.
Acoustical Tee
Mounting Brackets
5.25˝
1.70˝
3.90˝
1.70˝ 3.90˝
Item No. Description
TZ5101 3.9≤ Square Fixed Downlight Trim with 1.7≤
Square Opening – Includes Housing with
Integral Electronic Transformer and J-box –
Trim face has Armstrong White finish with
flat black internal finish
RSA Lighting
7945 Orion Avenue
Van Nuys, CA 91406
818-349-3030
www.cooperlighting.com/common/techzone/
Comp atibl e
™
18.00˝
Flexible Conduit
6.00˝
2.00˝
Integral Electronic
Low Voltage Transformer
with Thermal Protection
and Wiring Compartment
in Cylindrical Enclosure
Lamp
12V MR16
50W Max
™
Mini Accurus - Item Number TZ5101
Acoustical Tee
Mounting Brackets
5.25˝
1.70˝
3.90˝
Integral
Kicker
Reflector
1.70˝ 3.90˝
Item No. Description
TZ5102 3.9≤ Square Wall Washer Trim with 1.7≤ Square
Opening – Includes Internal Aluminum Kicker
Reflector Housing with Integral Electronic
Transformer and J-box – Trim face has Armstrong
White finish with flat black internal finish
Acoustical Tee
Mounting Brackets
5.25˝
3.90˝
30°
1.70˝ 3.90˝
Item No. Description
TZ5103 3.9≤ Square Adjustable Accent Trim with 1.7≤
Square Opening – Includes Housing with Integral
Electronic Transformer and J-box – Armstrong
White finish with flat black internal finish
18.00˝
Flexible Conduit 6.00˝
2.00˝
Integral Electronic
Low Voltage Transformer
with Thermal Protection
and Wiring Compartment
in Cylindrical Enclosure
Lamp
12V MR16
50W Max
18.00˝
6.00˝
Flexible Conduit
2.00˝
Integral Electronic Low Voltage Transformer
with Thermal Protection and Wiring
Compartment in Cylindrical Enclosure
30° Tilt x 90° Rotational Adjustment
45°
45°
Lamp
12V MR16
50W Max
