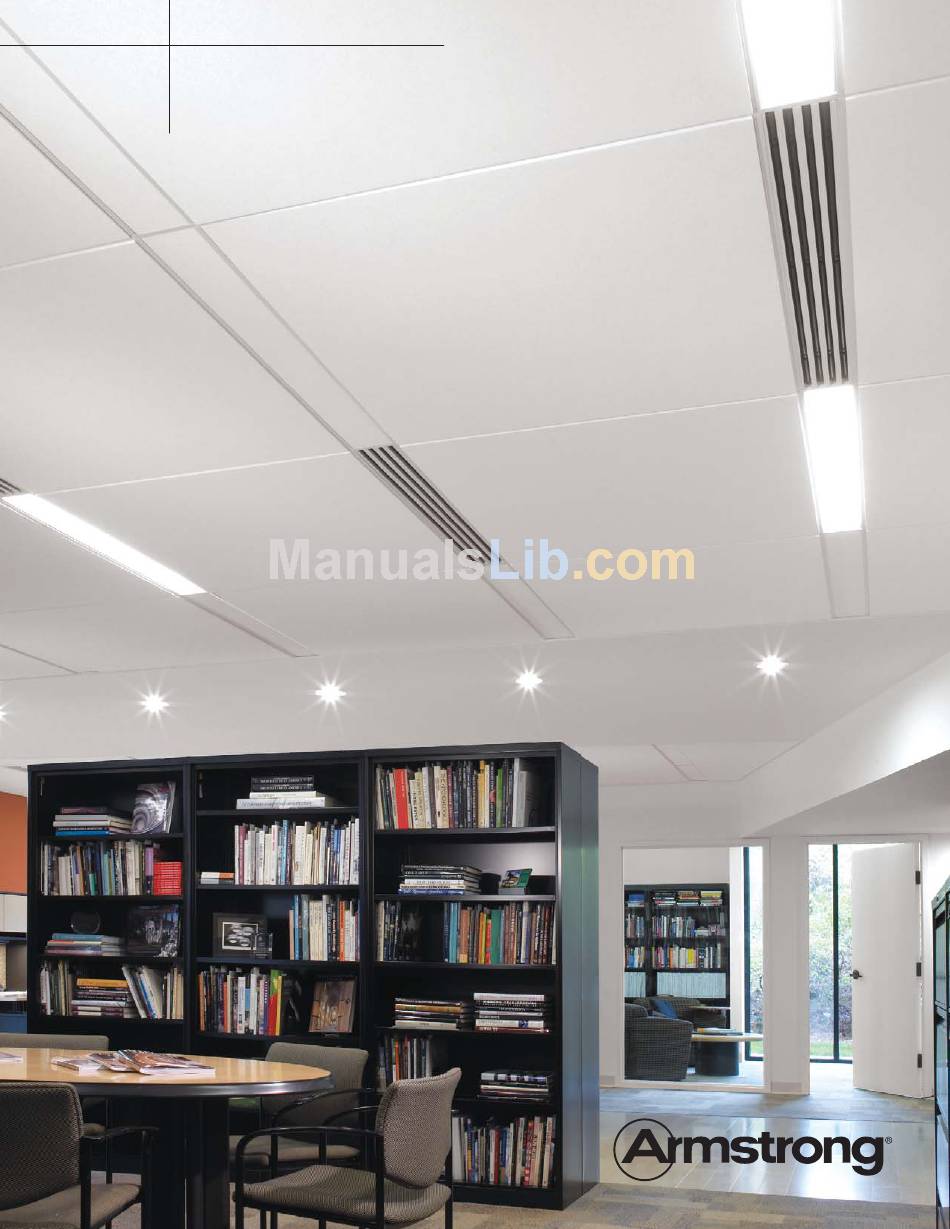

- Page 1 CEILING SYSTEMS ® Between us, ideas become reality. TECHZONE ™ Ceiling Systems...
- Page 2 Channel your thinking The TechZone ™ Ceiling Systems provide a monolithic, uncluttered ceiling visual using standard components and organize the look of the space. A six-inch wide technical “zone” organizes services, including lighting, diffusers and sprinklers in a system that’s pre-qualified for fit and finish. It’s affordable, hassle-free, reliable and easy to specify and install compared to other alternatives.
- Page 3 TechZone Partners Armstrong has teamed with industry leaders in lighting, air diffusers and fire protection to create TechZone fixtures that are pre-qualified for fit and finish. Look for the Armstrong TechZone Compatible sign of assurance on partner specification sheets. LIGHTING DIFFUSER FIRE PROTECTION PAGE TWO...
- Page 4 Easy to specify TechZone ™ Ceiling Systems are easy to specify and install. Simply follow these steps when designing and specifying your TechZone application. 1. Select your ceiling module (4' or 5'). 2. Determine the on-center spacing for the linear technical zones. 3.
- Page 5 Select your field panel edge detail and suspension system (All field panels not available in all edge detail options. See layouts, pg. 6-14 or selection chart pg. 15.) Square lay-in Square tegular Optima or Ultima Optima 15/16" Prelude ® 15/16" Prelude 9/16"...
- Page 6 Optima 48" x 48" Tegular field panels and Optima Lay-In technical panels on Suprafine suspension system. Lithonia recessed light fixtures. Carnes air diffusers. Layout configurations TechZone ™ Ceiling Systems offer many configuration options to meet just about any design and functional need.
- Page 7 [ 4' BUILDING MODULES ] 4' on-center technical zone 21" x 24" FIELD PANELS 9/16" Grid Optima Sq. Tegular Item #3279 42" x 48" FIELD PANELS 9/16" Grid Optima Sq. Tegular Item #3287 All suspension system and technical panel options are standard items. For specific item numbers, refer to TechZone Technical Guide (CS-3725). 24"...
- Page 8 24" x 24" FIELD PANELS 15/16" Grid Optima Sq. Lay-in 15/16" Grid Optima Sq. Tegular 15/16" Grid Ultima Sq. Lay-in 9/16" Grid Optima Sq. Tegular 9/16" Grid Ultima Bev. Tegular 48" x 48" FIELD PANELS 15/16" Grid Optima Sq. Lay-in 15/16"...
- Page 9 [ 4' BUILDING MODULES ] 6'-6" on-center technical zone 24" x 24" FIELD PANELS 15/16" Grid Optima Sq. Lay-in Item #3152 15/16" Grid Optima Sq. Tegular Item #3250 15/16" Grid Ultima Sq. Lay-in Item #1910 15/16" Grid Ultima Bev. Tegular Item #1911 9/16"...
- Page 10 24" x 24" FIELD PANELS 15/16" Grid Optima Sq. Lay-in 15/16" Grid Optima Sq. Tegular 15/16" Grid Ultima Sq. Lay-in 15/16" Grid Ultima Bev. Tegular 9/16" Grid Optima Sq. Tegular 9/16" Grid Ultima Bev. Tegular All suspension system and technical panel options are standard items. For specific item numbers, refer to TechZone Technical Guide (CS-3725). PAGE NINE [ 4' BUILDING MODULES ] 8'-6"...
- Page 11 Optima 30" x 30" Tegular field panels and Metal Tegular technical panels on Suprafine suspension system. Neo-Ray recessed light fixtures. Carnes air diffusers. PAGE TEN...
- Page 12 27" x 30" FIELD PANELS 9/16" Grid Optima Sq. Tegular Optima 48" x 48" Tegular field panels and Optima Tegular technical panels on Interlude suspension system. Carnes air diffusers. PAGE ELEVEN All suspension system and technical panel options are standard items. For specific item numbers, refer to TechZone Technical Guide (CS-3725). [ 5' BUILDING MODULES ] 5' on-center technical zone 30"...
- Page 13 [ 5' BUILDING MODULES ] 5'-6" on-center technical zone 30" x 30" FIELD PANELS 15/16" Grid Optima Sq. Lay-in Item #3158 15/16" Grid Optima Sq. Tegular Item #3258 9/16" Grid Optima Sq. Tegular Item #3259 9/16" Grid Ultima Bev. Tegular Item #1905 20"...
- Page 14 Optima 48" x 48" Tegular field panel and Optima Lay-In technical panels on Suprafine suspension system. Lithonia recessed light fixtures. Carnes air diffusers. PAGE THIRTEEN...
- Page 15 [ 5' BUILDING MODULES ] 8' on-center technical zone 30" x 30" FIELD PANELS 15/16" Grid 15/16" Grid 9/16" Grid 9/16" Grid 10'-6" on-center technical zone 20" x 60" FIELD PANELS 15/16" Grid 15/16" Grid 9/16" Grid All suspension system and technical panel options are standard items. For specific item numbers, refer to TechZone Technical Guide (CS-3725). Optima Sq.
- Page 16 TechZone ™ Field Panels KEY SELECTION ATTRIBUTES ■ Non-directional DuraBrite ® surface for excellent durability and superior light reflectance (reduces lighting and energy costs by up to 23%) ■ Optima - Outstanding acoustical performance for open plan areas, both Articulation Class (180-190) and NRC (0.90-0.95) Ultima - Excellent sound absorption and ceiling attenuation NRC (0.70)
- Page 17 TechZone Technical Panels Optima Tegular field panel with Optima Lay-in technical panel Ultima Beveled Tegular field panel with Ultima Beveled Tegular technical panel Optima Tegular field panel with Metal Lay-In technical panel TechZone Suspension Systems Suprafine 9/16" Suprafine 9/16" Beveled Tegular Square Tegular Interlude 9/16"...
- Page 18 Optima 48" x 48" Tegular field panels and Optima Tegular technical panels on Interlude suspension system. Carnes air diffusers. TechZone partners Industry-leading suppliers have engineered and designed lighting, diffusers and fire protection products for use in TechZone for fit and finish with TechZone Ceiling Systems. They are readily available products using standard components and they can be specified, bid, purchased and installed using traditional methods.
- Page 19 L I G H T I N G RECESSED FIXTURES ■ 6" x 48" and 6" x 60" ■ Lay-in and Tegular Edges ■ 9/16" and 15/16" grid compatible RECESSED DOWNLIGHTS ■ 3.9" square trim ■ 3.5" round trim PENDANT FIXTURES ■...
- Page 20 CEILING SYSTEMS Between us, ideas become reality. TECHZONE ™ Ceiling Systems Physical Data – Field Panels Material Ultima ® is mineral fiber. Optima ® is fiberglass. Both feature DuraBrite transparent membrane. Surface Finish DuraBrite with factory-applied acrylic latex paint providing superior light reflectance. Acoustics Optima panels provide outstanding acoustical performance and Ultima panels provide excellent sound absorption.
