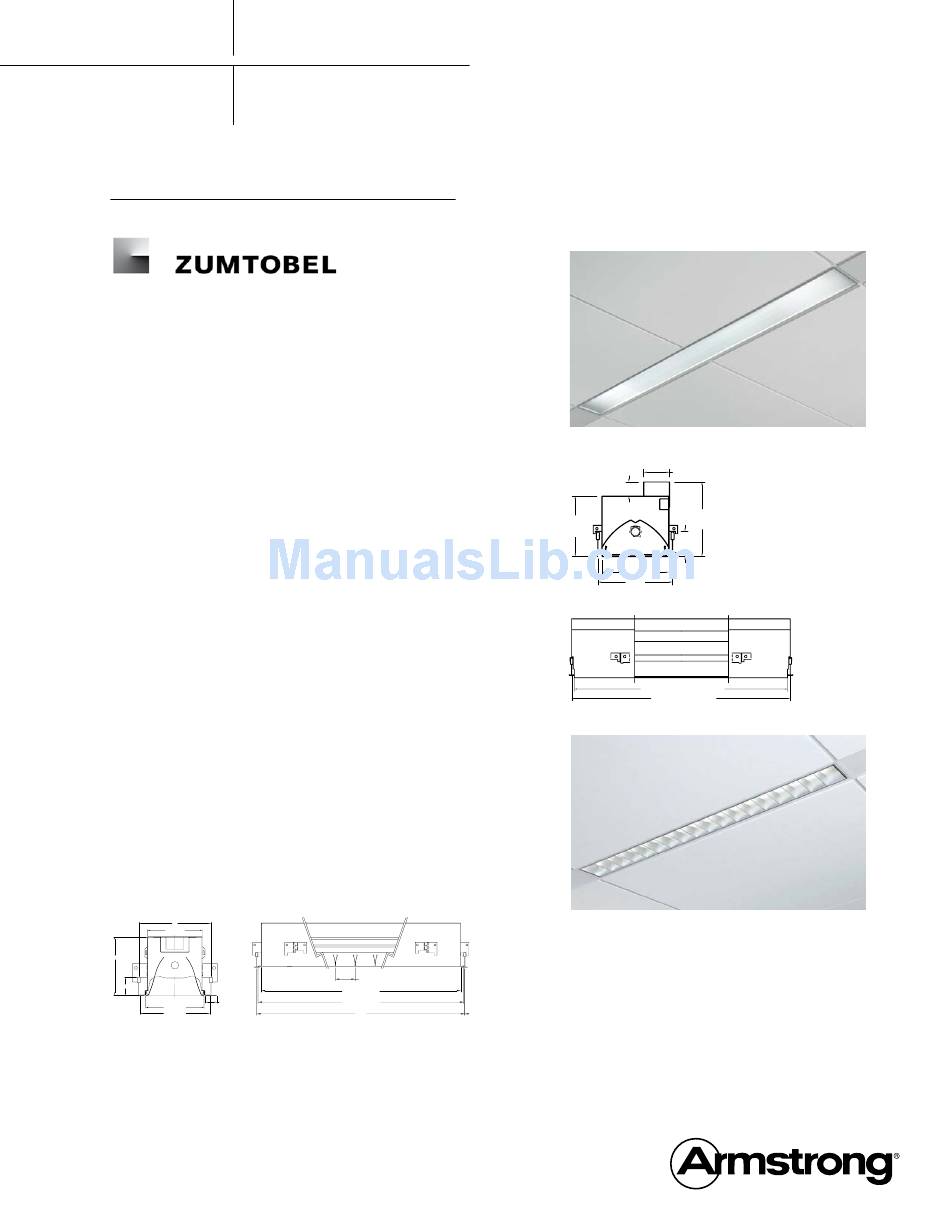

TECHZONE Ceiling System
™
R e c e s s e d a n d P e n d a n t F i x t u r e s
A rmst ro ng T e c h Zon e
®

RECESSED LENSED (RL)

Catalog No.s:
RL-I-MPO-64-lamping-U
RL-I-OLP-64-lamping-U
48" or 60" Tegular Fixture for 9/16" Grid
The RECESSED LENSED 6" x 4' (48")
recessed direct lensed luminaire for individual and continuous row mounting.
A wireway channel running down the length of the housing on one side on
the top makes it easy to connect fixtures for continuous runs. The lens options
include either an MPO (MICRO-PYRAMIDAL OPTIC) LENS for a more focused
distribution that directs light energy away from the high-angle glare zone,
or an OPAL LENS for a softer, more diffused light distribution. Both lens
options provide a continuous line of light in the ceiling while hiding the lamps
from view.
Lamp Options: 1 or 2, 4' or 5' T5 / T5HO lamps
The best combination of energy efficiency and lighting performance can be
created by a simple 8' x 8' spacing pattern that works perfectly with the
TechZone ceiling system, although linear continuous runs are very common.
TM
Suggested applications: Offices, lobbies, galleries, retail spaces, corridors and
reception areas.

RECESSED BIvERgENCE

Catalog No.s:
RBIC-64-lamping-U
48" and 60" Lay-in Fixture for 9/16" and 15/16" Grid
The RECESSED BIvERgENCE 6" x 4' (48")
recessed direct louvered luminaire for individual and continuous row mounting. 27/ 32˝
BIvERgENCE louver technology improves on the "Parabolic Louver" by directing
light energy away from the glare zone to create pleasant working environments.
1 1/2˝
Lamp Options: 1 and 2 T5 / T5HO lamps; 1 and 2 T8 Lamps
6˝
4 9/16˝
27/ 32˝
1 1/2˝
15/16˝
4 27/32˝
5 13/16˝
End view (1) Lamp
Side view (2) Lamp T5/T5 HO fixture
Lamp A
T5/T5 HO fixture Lamp B
2 17/32˝
46 31/32˝
47 25/32˝
48˝
Zumtobel Lighting Inc.
3300 Route 9W
Highland, NY 12528-2630
Technical Support: (845) 691-6262
www.zumtobel.us/armstrongtechzone
™
Comp atib le
™
RL-I-MPO-65-lamping-U
RL-I-OLP-65-lamping-U
or 6" x 5' (60") is a narrow aperture
1 1/8˝
4 7/8˝
5 3/8˝
6˝
RBIC-65-lamping-U
6˝
4 9/16˝
or 6" x 5' (60") is a narrow aperture
15/16˝
4 27/32˝
5 13/16˝
Lamp A
Lamp B
2 17/32˝
46 31/32˝
47 25/32˝
48˝
Recessed Lensed (RL)
2 1/8˝
1 1/8˝
4 7/8˝
2 1/16˝
5 3/8˝
6˝
End view
2 1/8˝
6˝
Lamp
2 1/16˝
3´ 11-1/2˝ – 4´ 11-1/2˝
4´ (48˝) – 5´ (60˝)
Side view
BIvERgENCE Lay-in Recessed Fixture
6˝
3´ 11-1/2˝ – 4´ 11-1/2˝
4´ (48˝) – 5´ (60˝)
Lamp
