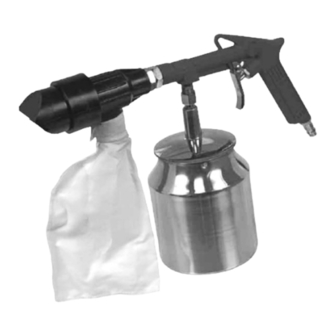

Air sand blasting gun
Hide thumbs Also See for 3650:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

SPEZIFIKATIONEN
Max. Druck: 8 Bar (116 PSI)
Arbeitsdruck: 6 - 8 Bar (90 -116 PSI)
Luftverbrauch: 184 L/min (6.5 cfm)
Empfohlener Schlauch: 9 mm (Innen-Ø)
Die Druckluftversorgung muss gefiltert und
frei von Kondensat sein.
WICHTIG
Lesen Sie vor Inbetriebnahme diese Bedienungsanleitung und alle Sicherheitshinweise sorgfältig
durch.
ALLGEMEIN
Die Druckluft-Sandstrahlpistole ist ideal für viele Anwendungen im Karosseriebereich und bei allen
metallischen Oberflächen. Die Pistole dient der Entfernung von Rost, starker Verschmutzungen,
Lacken, etc. und ist geeignet für die Verwendung mit Normalkorund mit einer Körnung von 46 bis 100.
Die Druckluft-Sandstrahlpistole ist leicht in der Anwendung und hat einen geringeren Verbrauch durch
Wiederverwendung des Strahlguts.
ERKLÄRUNG
Lieferumfang
1
Sandstrahlpistole
2
Strahlgut-Auffangsack
3
Strahlgut
4
Punkt-Strahlkappe
5
Oberflächen-Strahlkappe
6
Strahlkappe für Außenecken
7
Strahlkappe für Innenecken
Bauteile der Sandstrahlpistole
1
Auslöser
2
Aluminium- Strahlgutbehälter
3
Steigleitung
4
Mischdüse
5
Strahlgut-Auffangsack
6
Kappenaufsatz
7
Druckluftanschluss
SW-Stahl und Werkzeugvertriebs GmbH
5
d i e
Druckluft-Sandstrahlpistole
6
e
s
s
a r t S
h
c
s
m
e
R
Tel. +49 (0) 2191 / 46438-0
r e
F
ax +49 (0) 2191 / 46438-40
s
u
k r e
v
e
7
9
8
2
4 -
D
e
Art. 3650
L
d . l h
a t s
w
s
@
o f n i
: l i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3650 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BGS technic 3650

  • Page 1 Art. 3650 Druckluft-Sandstrahlpistole SPEZIFIKATIONEN Max. Druck: 8 Bar (116 PSI) Arbeitsdruck: 6 - 8 Bar (90 -116 PSI) Luftverbrauch: 184 L/min (6.5 cfm) Empfohlener Schlauch: 9 mm (Innen-Ø) Die Druckluftversorgung muss gefiltert und frei von Kondensat sein. WICHTIG Lesen Sie vor Inbetriebnahme diese Bedienungsanleitung und alle Sicherheitshinweise sorgfältig durch.
  • Page 2 SICHERHEITSHINWEISE • Tragen Sie beim Arbeiten mit der Sandstrahlpistole immer Arbeitshandschuhe, Sicherheitsbrille Gehörschutz und eine Atemschutzmaske. • Achten sie darauf, dass Sie immer enganliegende Arbeitsschutzkleidung tragen. • Druckluftwerkzeuge gehören nicht in Kinderhände. • Sandstrahlpistole nicht in explosionsgefährdeten Räumen verwenden. • Richten Sie die Sandstrahlpistole nicht auf andere Personen. •...
  • Page 3: Specifications

    3650 Air Sand Blasting Gun SPECIFICATIONS Max. pressure 8 Bar (116 PSI) Working pressure: 6 - 8 Bar (90 -116 PSI) Air Consumption: 184 l/min (6.5 cfm) Recommended hose: 9 mm (inner Ø) Air source must be filtered and free of condensation.
  • Page 4: Safety Advice

    SAFETY ADVICE • When working with the sand blasting gun, always wear gloves, safety glasses, hearing protection and a dust mask. • Always wear tight-fitting protective clothing. • Store pneumatic tools out of children's reach. • Do not use the sand blasting gun in hazardous locations. •...
  • Page 5: Spécifications

    BGS 3650 Pistolet de sablage pneumatique SPÉCIFICATIONS Pression maxi. : 8 Bar (116 PSI) Pression de travail : 6 – 8 Bar (90 – 116 PSI) Consommation d’air : 184 L/min (6,5 cfm) Tuyau recommandé : 9 mm (Ø intérieur) L’alimentation en air comprimé...
  • Page 6: Consignes De Sécurité

    CONSIGNES DE SÉCURITÉ • Portez toujours des gants de travail, des lunettes de sécurité, des protections auditives et un masque anti-poussière lorsque vous allez travailler avec le pistolet de sablage. • Veillez à toujours porter des vêtements de protection bien ajustés. •...
  • Page 7: Especificaciones

    BGS 3650 Pistola neumática de arenado ESPECIFICACIONES Presión máx.: 8 bar (116 PSI) Presión de funcionamiento: 6 - 8 bar (90 -116 PSI) Consumo de aire: 184 l/min (6,5 cfm) Manguera recomendada: 9 mm (Ø interior) La alimentación de aire comprimido debe estar filtrada y libre de condensado.
  • Page 8: Indicaciones De Seguridad

    INDICACIONES DE SEGURIDAD • Al trabajar con la pistola arenadora use siembre guantes de trabajo, gafas de protección, protección auditiva y una mascarilla antipolvo. • Asegúrese de llevar siempre ropa de protección de trabajo ajustada. • Las herramientas neumáticas no deben estar en manos de niños. •...
  • Page 9 We declare that the following designated product: Nous déclarons sous propre responsabilité que ce produit: Declaramos bajo nuestra sola responsabilidad que este producto: Druckluft-Sandstrahlpistole inkl. Zubehör ( Art. 3650 ) Pneumatic Sandblaster Set incl. Accessories Pistolet pneumatique de sablage y compris accessoires Pistola neumática de arenado con accesorios...
