- Page 1 Kingspan Klargester 1011026 Domestic Wastewater Control Panel USER MANUAL...
-
Page 2: Table Of Contents
Contents Health and Safety ............................3 Health & Safety at Work, etc. ACT 1974 ....................3 Declaration of Conformity ..........................3 General Description ............................3 General Operation ............................3 Applicable Firmware ............................3 Technical Support ............................3 Installation ..............................4 General Electrical .......................... -
Page 3: Health And Safety

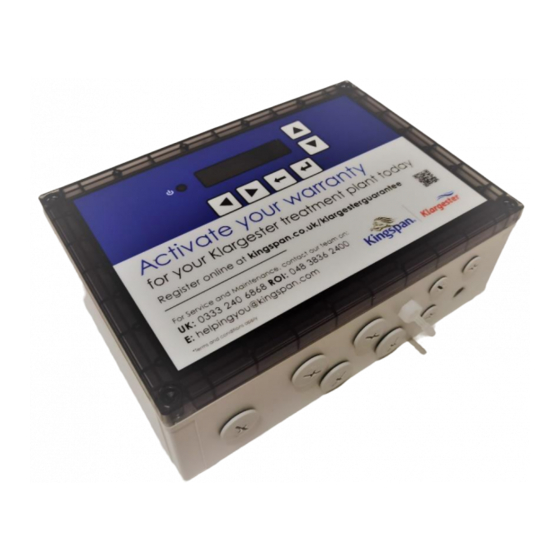

The full text of the Declaration of Conformity can be provided upon request. 3. General Description The DTP control Panel is used to control and monitor the Kingspan Klargester Domestic Wastewater Treatment Units. It is capable of operating multiple pump/motor outputs at set times in accordance with pre-determined timetables. -
Page 4: Installation
7. Installation Figure 1 1002510 Lid & Cover Figure 2 Enclosure & Mounting Dimensions Figure 3 Control Panel Wiring (1) 1011026 User Manual Issue 01 (26.10.2021) - Page 5 Figure 4 DTP Control Panel Wiring (2) 1011026 User Manual Issue 01 (26.10.2021)
-
Page 6: General Electrical
7.2.2. Retrofit of Control Panel This Panel can replace the Kingspan Panel (P.No. 010086 - Green Panel). The existing beacon (P.No. 010332) will have to be replaced with the New Beacon (P.No. 1009254) which is provided with Control panel (P.No. -
Page 7: Beacon Units - P.no. 1009254 (Where Applicable)
Beacon units - P.No. 1009254 (where applicable) The Beacons provides an external visual indication which is used to indicate Failure & Service Reminders and may be included in the Power and Pressure Failure Detection System (PPFDS). The beacon is provided with a 5m cable which can be extended to 30m. -
Page 8: Completing The Installation
7.8.2. Installation of Chemical Dosing System (where applicable) Using a suitable M20 gland, feed the chemical dosing pump power cable through Gland Hole and terminate to connection according to Figure 3 & Figure 4. Connect the other end of the chemical dosing pump power supply cable to the junction box in the plant (marked CHEMICAL DOSING). -
Page 9: Detailed Operation
Detailed Operation Once the initialisation is complete the operating screen will appear as follow. Page 1 to 6 can be navigated using ◄ & ► key. Figure 8 Main Screen Page 1 Figure 9 Main Screen Page 2 Page 3 to 6 are like the above, for Motor / Blower & Chemical Dosing Pump. Press down key to show the date and time when the next service is due. -
Page 10: Service
Service 8.4.1. Service Due Date The Service Due Date can be viewed on main screen by pressing ‘▼’ until the date and time are shown. 8.4.2. Service Alarm If the service alarm is activated using PIN, service alarm is reported on the display every 360 days, by default. The beacon flashes and message “Contact Service Provider”... - Page 11 8.6.2. Event Log This option shows the last ten alarm conditions that have occurred along with the date/time. An event is also recorded when the alarm clears. The message “Log is Empty” will appear if no alarms have been recorded yet. Use ‘▲’...
- Page 12 8.6.5. Service This allows setting the interval between which service alarms occur. The default is 360 days. Figure 15 Service 8.6.6. Battery This displays the battery charger status. The display shows “Not Charging” when mains power is absent. The charging countdown is paused. “Standard charge”...
-
Page 13: Technical Information
Grundfos KP 350 J7 – De-sludge pump Grundfos KP 250 J8 – Blower Secoh JDK-250 J9 – Chemical dosing pump Kingspan 404390 Fusing F1 (De-sludge pump, terminals T 5A H 250V 3&4) F2 (Internal power supply unit) T 2A H 250V F3 (Motor/blower, 5&6) -
Page 14: Led Beacon 1009254
Use only with 30V, 3A AC/DC max. Unfused Relays only energised when mains power is present. Terminals 15&16 Mains failure Terminals 17&18 Motor or blower failure Terminals 19&20 Common alarm Beacon Output Output suited for use with 1009254 LED beacon. Flashes continuously on alarm when mains present, 12 hours in battery backup mode. -
Page 15: Default Timetables
Default Timetables De-sludge Pump 10.1.1. UK, Germany, France & Poland Function Default Bioficient BioFicient + 1 BioFicient + 2 Start Time 00:00:00 00:00:00 00:00:00 00:00:00 Stop Time 23:59:59 23:59:59 23:59:59 23:59:59 Run Time 00:00:20 00:05:00 00:01:00 00:01:30 Pause Time 02:00:00 01:00:00 01:00:00 01:00:00... - Page 16 This Page Intentionally Left Blank 1011026 User Manual Issue 01 (26.10.2021)
