- Page 1 Light + Air UK & Republic of Ireland Kingspan SHE Control Panel TRZ Plus 2A and TRZ Plus Comfort Technical Manual Compact Control Panel 2A and Compact Control Panel 2A/M...
-
Page 2: Table Of Contents
Kingspan SHE Control Panel TRZ Plus Technical Manual 2A and TRZ Plus Comfort Contents Page Equipment Overview / Function Scope of Delivery Safety Instructions Routing of Cables Description of Function Cable Length Diagram Cable Cross-Section Determination Possible Connections Connecting Diagram Mains / Connecting Diagram Drive... -
Page 3: Equipment Overview / Function

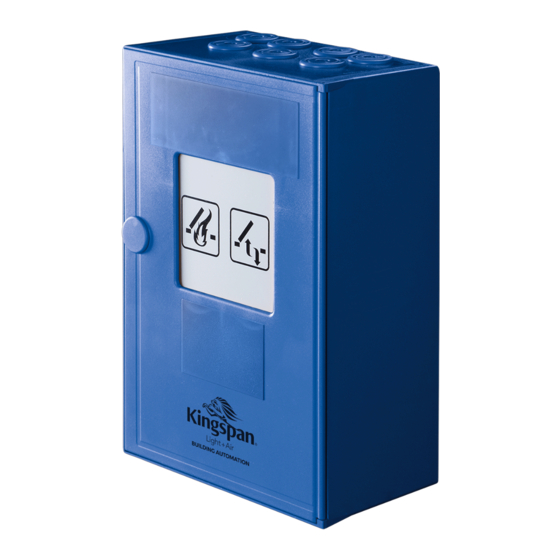

Technical Manual Kingspan SHE Control Panel TRZ Plus 2A and TRZ Plus Comfort Equipment Overview / Compact control panel 2A and Compact control panel 2A/M Function For smoke heat extraction and daily ventilation to control 24 V DC linear drives and chain motors •... -
Page 4: Safety Instructions
Kingspan SHE Control Panel TRZ Plus Technical Manual 2A and TRZ Plus Comfort Safety Instructions Documentation: This documentation is exclusively Operation: Safe operation is guaranteed if the acceptable valid for the product or product range as stated in the rated values and guidelines regarding maintenance... - Page 5 Technical Manual Kingspan SHE Control Panel TRZ Plus 2A and TRZ Plus Comfort Safety Instructions sheared off, twisted or snapped during operation. Power Disposal: Packaging is to be disposed of supplies, control units and junction boxes must be accessible appropriately. Electrical equipment is to be disposed for maintenance work. Cabling types, lengths and cross- of at recycling collection points for scrap electrical sections are to comply with technical guidelines. and electronic equipment. The Electrical and Electronic Equipment Act relating to disposal of electrical equipment Before work is carried out on the system, the does not apply in this instance. Rechargeable and single-use...
-
Page 6: Routing Of Cables
Kingspan SHE Control Panel TRZ Plus Technical Manual 2A and TRZ Plus Comfort Routing of Cables Either magnetic locking 24 V DC or linear drives Linear drives M9, Magnetic locking 24V DC 24 V DC, max. 1 amp (with integrated power cut-off) junction box Wind/rain detector 24 V AC / DC 100 mA*... -
Page 7: Description Of Function
Technical Manual Kingspan SHE Control Panel TRZ Plus 2A and TRZ Plus Comfort Description of Function Universally Reset of automatic detectors Smoke-Heat-Extraction- (SHE) and Ventilation control panel Set the automatic detectors free from smoke by blowing out for 24V DC drives with a maximum Current draw of 2A. or replace them in case of heavy soiling. To open and close flaps, windows, skylight domes and for Press the Reset switch on the basic circuit control board of smoke extraction and daily ventilation. SHE and ventilation... - Page 8 Kingspan SHE Control Panel TRZ Plus Technical Manual 2A and TRZ Plus Comfort Description of Function Automatic Ventilation Control LED Display If activated (see start up procedure), the windows are In the SHE control panel and SHE manual call points. closing automatically after xx min (10 min factory- The green LED display - operating OK - is shining. It...
-
Page 9: Cable Length Diagram
Technical Manual Kingspan SHE Control Panel TRZ Plus 2A and TRZ Plus Comfort Cable Length Diagram To determine the necessary cable cross-sections as a Cable length diagram up to 2 amps for drives with a current draw < 2.5 A function of the line length and the sum of the rated currents of the drives. Nominal drive current in amps... -
Page 10: Possible Connections
Kingspan SHE Control Panel TRZ Plus Technical Manual 2A and TRZ Plus Comfort Possible Connections - l inear drives 24V DC with integrated electronic power cut-off, tandem power cut-off, synchro module or chain motors 24 V DC with limit switches - overall power consumption of all motors connected max. 2 A - 10 SHE manual call points RBH/3A... (line termination via enclosed end resistance) - 1 0 automatic detectors with 2-wire-technology, optical smoke detectors and/or detectors of heat differential and/or detectors of maximum heat or monotoring resistor ex factory via the final fuse attached - 10 external ventilation switches “Open/Stop/Closed” (e.g. type LTA 25) - 24V DC siren or flashing lights, max 100 mA - t o connect 1 wind-/rain detector (e.g. type WRM 24V, WRM2) or 1 rain detector (e.g. RM, RM2)Only with TRZ Plus Comfort or with additional module WRMAS. - Page 11 Technical Manual Kingspan SHE Control Panel TRZ Plus 2A and TRZ Plus Comfort Possible Connections Installation Disconnect the control panel from power supply (mains and battery), plug the spacer to the principal circuit control board, plug the additional module to the extension ledge, create the desired connections and check, re-establish power supply (mains and battery).
-
Page 12: Connecting Diagram Mains/Connecting Diagram Drive
Kingspan SHE Control Panel TRZ Plus Technical Manual 2A and TRZ Plus Comfort Connecting Diagram Mains/Connecting Diagram Drive All work to be carried out without mains supply (230V AC) or any batteries connected. Route the connecting cables into the control panel housing at the top. Connect all connecting cables according to the wiring diagram and make sure that they are correctly connected. Incorrect connections or figure or colour mix-ups can lead to incorrect function of the control panel or of the external components. The notes and installation directives in the technical documentation are always to be observed. Connecting diagram mains (230V AC) Provide a separately disengageable circuit. Secure against unintentional switching-off. Connecting diagram drive one drive several drives per motor circuit... -
Page 13: Connecting Diagram Magnetic Clamps/Magnetic Locking
Technical Manual Kingspan SHE Control Panel TRZ Plus 2A and TRZ Plus Comfort Connecting Diagram Magnetic Clamps/ Magnetic Locking All work to be carried out without mains supply (230V AC) or any batteries connected. Route the connecting cables into the control panel housing at the top. Connect all connecting cables according to the wiring diagram and make sure that they are correctly connected. Incorrect connections or figure or colour mix-ups can lead to incorrect function of the control panel or of the external components. The notes and installation directives in the technical documentation are always to be observed. Window closed Magnetic locking* Magnetic locking* Opening via spring force of the gas spring The door is... -
Page 14: Connecting Diagram Vent Switch
Kingspan SHE Control Panel TRZ Plus Technical Manual 2A and TRZ Plus Comfort Connecting Diagram Vent Switch All work to be carried out without mains supply (230V AC) or any batteries connected. Route the connecting cables into the control panel housing at the top. Connect all connecting cables according to the wiring diagram and make sure that they are correctly connected. Incorrect connections or figure or colour mix-ups can lead to incorrect function of the control panel or of the external components. The notes and installation directives in the technical documentation are always to be observed.. one vent switch LTA25 one vent switch LTA11 STOP STOP 4 3 2 1 Jumper 4 3 2 1... -
Page 15: Connecting Diagram She Manual Call Point
Technical Manual Kingspan SHE Control Panel TRZ Plus 2A and TRZ Plus Comfort Connecting Diagram SHE Manual Call Point All work to be carried out without mains supply (230V AC) or any batteries connected. Route the connecting cables into the control panel housing at the top. Connect all connecting cables according to the wiring diagram and make sure that they are correctly connected. Incorrect connections or figure or colour mix-ups can lead to incorrect function of the control panel or of the external components. The notes and installation directives in the technical documentation are always to be observed. without SHE manual call point one SHE manual call point several SHE manual call points Monitoring resistor... -
Page 16: Connecting Diagram Smoke Detector
Kingspan SHE Control Panel TRZ Plus Technical Manual 2A and TRZ Plus Comfort Connecting Diagram Smoke Detector All work to be carried out without mains supply (230 V AC) or any batteries connected. Route the connecting cables into the control panel housing at the top. Connect all connecting cables according to the wiring diagram and make sure that they are correctly connected. Incorrect connections or figure or colour mix-ups can lead to incorrect function of the control panel or of the external components. The notes and installation directives in the technical documentation are always to be observed. without smoke detector one smoke detector several smoke detectors smoke detector 1. smoke detector SSD 521 UTD 521 UTD 523... -
Page 17: Connecting Diagram Fire Alarm System
Technical Manual Kingspan SHE Control Panel TRZ Plus 2A and TRZ Plus Comfort Connecting Diagram Fire Alarm System (FAS) All work to be carried out without mains supply (230 V AC) or any batteries connected. Route the connecting cables into the control panel housing at the top. Connect all connecting cables according to the wiring diagram and make sure that they are correctly connected. Incorrect connections or figure or colour mix-ups can lead to incorrect function of the control panel or of the external components. The notes and installation directives in the technical documentation are always to be observed. without fire alarm system with fire alarm system with fire alarm system and smoke detectors UEB2 UEB2... -
Page 18: Connecting Buzzer/Signal Lamp
Kingspan SHE Control Panel TRZ Plus Technical Manual 2A and TRZ Plus Comfort Connecting Buzzer/Signal Lamp All work to be carried out without mains supply (230V AC) or any batteries connected. Route the connecting cables into the control panel housing at the top. Connect all connecting cables according to the wiring diagram and make sure that they are correctly connected. Incorrect connections or figure or colour mix-ups can lead to incorrect function of the control panel or of the external components. The notes and installation directives in the technical documentation are always to be observed. with alarm-buzzer with alarm-signal lamp 12/24999513... -
Page 19: Connecting Diagram Wind/Rain Detector
Technical Manual Kingspan SHE Control Panel TRZ Plus 2A and TRZ Plus Comfort Connecting Diagram Wind/Rain Detector All work to be carried out without mains supply (230V AC) or any batteries connected. Route the connecting cables into the control panel housing at the top. Connect all connecting cables according to the wiring diagram and make sure that they are correctly connected. Incorrect connections or figure or colour mix-ups can lead to incorrect function of the control panel or of the external components. The notes and installation directives in the technical documentation are always to be observed. WRM/2 24V RM/2 24V WRM/2 24V WRM/2 24V Ö RM/2 24V RM/2 24V 20 21 22 23 Jumper TRZ WRMAS... -
Page 20: Connecting Selector Switch Manual/Automatic, Temperature Sensor And Vent Switch
Kingspan SHE Control Panel TRZ Plus Technical Manual 2A and TRZ Plus Comfort Connecting Selector Switch Manual/Automatic, Temperature Sensor and Vent Switch All work to be carried out without mains supply (230V AC) or any batteries connected. Route the connecting cables into the control panel housing at the top. Connect all connecting cables according to the wiring diagram and make sure that they are correctly connected. Incorrected connections or figure or colour mix-ups can lead to incorrect function of the control panel or of the external components. The notes and installation directives in the technical documentation are always to be observed. Variant 1 with two temperature sensors: Adjustable hysteresis for opening and closing of windows over the respective temperature sensor. The farther apart the temperature values , the less unwanted movement commands from the window operators are short-term temperature changes for example Drafts made. -
Page 21: Quality (Ppm) And Temperature (° C)
Technical Manual Kingspan SHE Control Panel TRZ Plus 2A and TRZ Plus Comfort Connecting Multisensor (MS) for Measurement of Humidity (%),CO -Quality (ppm)& Temperature (C°) for the Room Air All work to be carried out without mains supply (230V AC) or any batteries connected. Route the connecting cables into the control panel housing at the top. Connect all connecting cables according to the wiring diagram and make sure that they are correctly connected. Incorrected connections or figure or colour mix-ups can lead to incorrect function of the control panel or of the external components. The notes and installation directives in the technical documentation are always to be observed. Variant 1: Standard connections for the power supply of the multisensor. Notes to the DIP switches are observed. Are an external buzzer or flashing light connected to signal an SHE message to these terminals, the energy supply of the terminals to the additional board WRMAS is apparent (see Option 2). open close Ö... -
Page 22: Connection Diagram
Kingspan SHE Control Panel TRZ Plus Technical Manual 2A and TRZ Plus Comfort Connection Diagram All work to be carried out without mains supply (230V AC) or any batteries connected. Route the connecting cables into the control panel housing at the top. Connect all connecting cables according to the wiring diagram and make sure that they are correctly connected. Incorrect connections or figure or colour mix-ups can lead to incorrect function of the control panel or of the external components. The notes and installation directives in the technical documentation on pages 50 to 59 are always to be observed. Mains Smoke SHE manual call Potential free Vent switch Wind-rain detector Drives supply detector point contacts RM 24V Ö 4* 5*... -
Page 23: Function Of Dip-Switches
Technical Manual Kingspan SHE Control Panel TRZ Plus 2A and TRZ Plus Comfort Function of DIP-Switches Adjustable functions for ON setting DIP-Switch 1: Motor timing device is switched off (VdS function) DIP-Switch 2: Motor output permanently switched on DIP-Switches DIP-Switch 3: Central control system door locking function with magnetic clamps or magnetic latches DIP-Switch 3 + 9: Voltage source 27V DC / 100 mA * DIP-Switch 4: “Fire Alarm System Open” and “Reset via 1 x Fire Alarm System closer contact” DIP-Switch 5: Pre-alert DIP-Switch 6: Actuation limit DIP-Switch 7: Malfunction = SHE activation DIP-Switch 7 + 3: Malfunction = Ventilation on * DIP-Switch 8: SHE Closed (on the SHE operating station) = SHE-Reset DIP-Switch 9: Ventilation in inching mode of operation (deadman button) DIP-Switch 10: STOP function with key-operated ventilation button DIP-Switch 11: Detector monitoring with 10KΩ Monitoring resistor DIP-Switch 12: Automatic closure system, automatic closure Combinations of various DIP-Switch settings are possible, e.g. DIP-Switch 1 = ON and 8 = ON. DIP-Switches Attention: All settings of the DIP-Switches have to be made without current (230 V AC) and without accumulator attached. - Page 24 Kingspan SHE Control Panel TRZ Plus Technical Manual 2A and TRZ Plus Comfort Function of DIP-Switches DIP-Switch 3 + 10: Main Power supply error = ventilation open* In case of main power error the motor line will be triggered into OPEN direction automatically after 30seconds and the windows open (function according to VdS guideline 2895). The indication “Ventilation open” on the ventilation switch will...
-
Page 25: Service Port
Technical Manual Kingspan SHE Control Panel TRZ Plus 2A and TRZ Plus Comfort Function of DIP-Switches DIP-Switch 10: STOP function with key-operated ventilation button STOP function initiated by means of a counter-command (Open or Close). Operation with key-operated buttons can serve as a protective function for “power-operated windows”. DIP-Switch 11: Detector monitoring with 10KΩ Monitoring resistor* For existing installations where the automatic detectors are monitored with 10k resistor. DIP-Switch 12: Automatic closure system, automatic closure after xx min (set in the factory to 10 min). After each ventilation Open command automatic closure takes place after the prescribed time. The following switch combinations provide special functions**: Operating mode: SHE and ventilation with stroke limit DIP-Switch 2 + 3 + 6 = ON (Combination with DIP-Switch 4, 5, 7 – 12 still possible). -
Page 26: Start Up Procedure And Trial Run
Kingspan SHE Control Panel TRZ Plus Technical Manual 2A and TRZ Plus Comfort Start Up Procedure and Trial Run Note: The specifications for start up procedure Ferritkern apply to the standard functions. All DIP-Switches are OFF. Note: Before start up procedure the enclosed ferrite core is arounded to the Battery connection cable (see picture) - Page 27 Technical Manual Kingspan SHE Control Panel TRZ Plus 2A and TRZ Plus Comfort Start Up Procedure and Trial Run SHE manual call points Test automatic detectors Press SHE Open switch briefly, the windows open completely. Trigger the automatic detector (e.g. with test spray): the red The red LED display - SHE activated - lights up. LED in the autom. detector is shining. The green display - Operation OK - lights up. The The red LED “SHE activation” is shining.
-
Page 28: Troubleshooting
Kingspan SHE Control Panel TRZ Plus Technical Manual 2A and TRZ Plus Comfort Start Up Procedure and Trial Run Test Wind/Rain detector or rain sensor Completion work (TRZ Plus Comfort) Insert the glass panes in all SHE manual call points. Close the Press Open switch in the vent switch, the windows open control panel door. Stick on the service contact telephone... - Page 29 Technical Manual Kingspan SHE Control Panel TRZ Plus 2A and TRZ Plus Comfort Troubleshooting Capacitance of storage batteries is inadequate for 72 h network compensational operation The measurement of the current draw for testing the capacitance of the storage batteries has to be done in standby mode. It may not happen directly after a motor activation. The standby mode starts automatically after approx. 3 min when SHE- Reset is activated or after the last ventilation operation. All LED displays are dark (without mains 230 V/50 Hz) • discharge totally battery, take off fuse F3 (battery) disconnect emergency batteries and wait at least 2 min. Replace by new emergency batteries and connect them, replace fuse F3.
-
Page 30: Maintenance
Kingspan SHE Control Panel TRZ Plus Technical Manual 2A and TRZ Plus Comfort Maintenance If the equipment is used in smoke heat extraction systems (SHE), it must be checked, serviced and, if necessary, repaired at least once per year. This is also recommended for purely ventilation systems. Clean the equipment. Check the tightness of fixing and locking screws. Test the devices by a trial run according to the Chapter start up procedure and trial run. The gear systems of the linear drives are maintenance-free. Defective equipment must be repaired in our plant. Only original spare parts are to be used. Check regularly that the... -
Page 31: Dimensional Drawing
Technical Manual Kingspan SHE Control Panel TRZ Plus 2A and TRZ Plus Comfort Dimensional drawing TRZ Plus 2A and TRZ Plus Comfort SMOKE VENT SMOKE VENT 12/24999513... - Page 32 Kingspan SHE Control Panel TRZ Plus Technical Manual 2A and TRZ Plus Comfort Dimensional drawing Compact control panel 2A (Plastic housing) Mounting holes Compact control panel 2A/M (Metal housing) Assembly Generally The SHE control panel has to be installed in a dry room. The assembly places for the SHE manual call points and the vent switches must be well visible and accessible (SHE call point = 1.4 m over the top edge of the floor). Do not assemble behind wall projections, door casements or hide behind construction elements. Open the SHE control panel and fix it at the specified bore-holes to the construction body. Make sure to provide appropriate material for the fixations. Assembly of control elements, drives, junction boxes (max.1.2 m to the drive) and automatic detectors according to their joint operating instructions. Please observe applicable regulations and instructions (see pages 42-43). 12/24999513...
-
Page 33: Assembly
Technical Manual Kingspan SHE Control Panel TRZ Plus 2A and TRZ Plus Comfort Assembly SMOKE VENT TRZ Plus and TRZ Plus Comfort Mount the control panel with suitable plugs and screws through the mounting TRZ Plus Comfort holes on the backside of the control panel. No overhead installation or rotated by 180 ° mounting. - Page 34 Kingspan SHE Control Panel TRZ Plus Technical Manual 2A and TRZ Plus Comfort Assembly Compact control panel 2A/M Wall mounting : 1. First remove the baseplate with control electronics. 2. F ix the housing through mounting holes with suitable plugs and screws to the wall. 3. Encase the baseplate back. rd. 6,1 Note: The control system must be fitted in a dry area at a place that is easily visible and accessible. No overhhead installation or rotated by 180° mounting.
-
Page 35: Service Port Software
Technical Manual Kingspan SHE Control Panel TRZ Plus 2A and TRZ Plus Comfort Service Port Software 1. General information about Service Port green Lettering Software Additional parameters can be added to certain functions via the Service Port (PC interface) with the appropriate Service Port configuration software as well as a USB connecting cable*. The functions are dependent on the PC software... - Page 36 Kingspan SHE Control Panel TRZ Plus Technical Manual 2A and TRZ Plus Comfort Service Port Software It is possible to save the configuration as a file on the hard drive or other location. To do this, select “File” > “Save configuration“ from the menu. Other options are loading a file or printing a report. Once the configuration editing is finished, the connection between “TRZ Plus <> PC” must be disconnected using the “Off” button. After that the service Port Software can be closed down and the connection cable disconnected. 2. Adjustment possibilities (configuration) using the Service Port Software 2.1 Automatic ventilation...
- Page 37 Technical Manual Kingspan SHE Control Panel TRZ Plus 2A and TRZ Plus Comfort Service Port Software 2.4 Maintenance counter enable / disable For the deactivation / activation of maintenance counter a password is required. This password is replaced by the users by registering at “www.kingspan.com“ or by e-mail at “info@kingspanlightandair.com“ (Subject: Registration Service Port Software). After entering the password, you get into the user interface of the service counter. Here the maintenance counter is...
-
Page 38: Technical Datas
Kingspan SHE Control Panel TRZ Plus Technical Manual 2A and TRZ Plus Comfort Technical Data The power supplies and electrical control equipment are to be operated exclusively with the components authorised by the manufacturer. Electrical properties Power supply means ELV: class A... - Page 39 Technical Manual Kingspan SHE Control Panel TRZ Plus 2A and TRZ Plus Comfort Technical Data Automatic alarm unit output Voltage: 24 V nominal Power: max. 150 mA, 100 % ED Terminal: max. 1 mm², spring terminal Cable monitoring function: End resisted 10k or active end module max. Pieces: Emergency power: Buzzer/Signal lamp output or 27V output voltage source Voltage: 27 V nominal Power: max. 100 mA, 100 % ED...
- Page 40 Kingspan SHE Control Panel TRZ Plus Technical Manual 2A and TRZ Plus Comfort Technical Data Authorisations and certifications CE compliant: i n accordance with EMV directive 2004/108/EG and the low voltage directive 2006/95/EG Class of protection: Class I in accordance with DIN 61140 (DE 0140-1) Type tested: TÜV, Registration-No. 44 780 09 375661, DIN EN 61010-1; DIN EN 61010:2002-11; DIN EN 61010:2004-01 for TRZ Plus, TRZ Plus Comfort, Compact Control panel 2A Material Housing: TRZ Plus 2A: (Polystyrol), plastic housing for surface mounting...
- Page 41 Care has been taken to ensure that the contents of this publication are accurate, but Kingspan Limited and its subsidiary companies do not accept responsibility for errors or for information that is found to be misleading. Suggestions for, or description of, the end use or application of products or methods of working are for information only and Kingspan Limited and its subsidiaries accept no liability in respect thereof. 07/2019...
