Production Basics 3000 Assembly Manual

Hide thumbs Also See for 3000:

Advertisement

Quick Links

Assembly Tips
Review entire instruction manual before proceeding.
Production Basics nameplate indicates front of frame.
Legs are adjustable in 2-inch increments between 30-36 or 30-42
inches high, depending on products ordered.
Don't be a slave to gravity-recruit a co-worker to help you install and
correctly position components and accessories.
References to 'Left' and 'Right' are oriented as if you were facing the
front of the workstation.
Need help? Call Assembly Support at 800.318.2770.
RTW Support Rail
(channel faces inward)
Production Basics, Inc.
Massachusetts, USA
ASSEMBLY VIDEOS AVAILABLE ON-LINE http://video.pbasics.com
1602A301

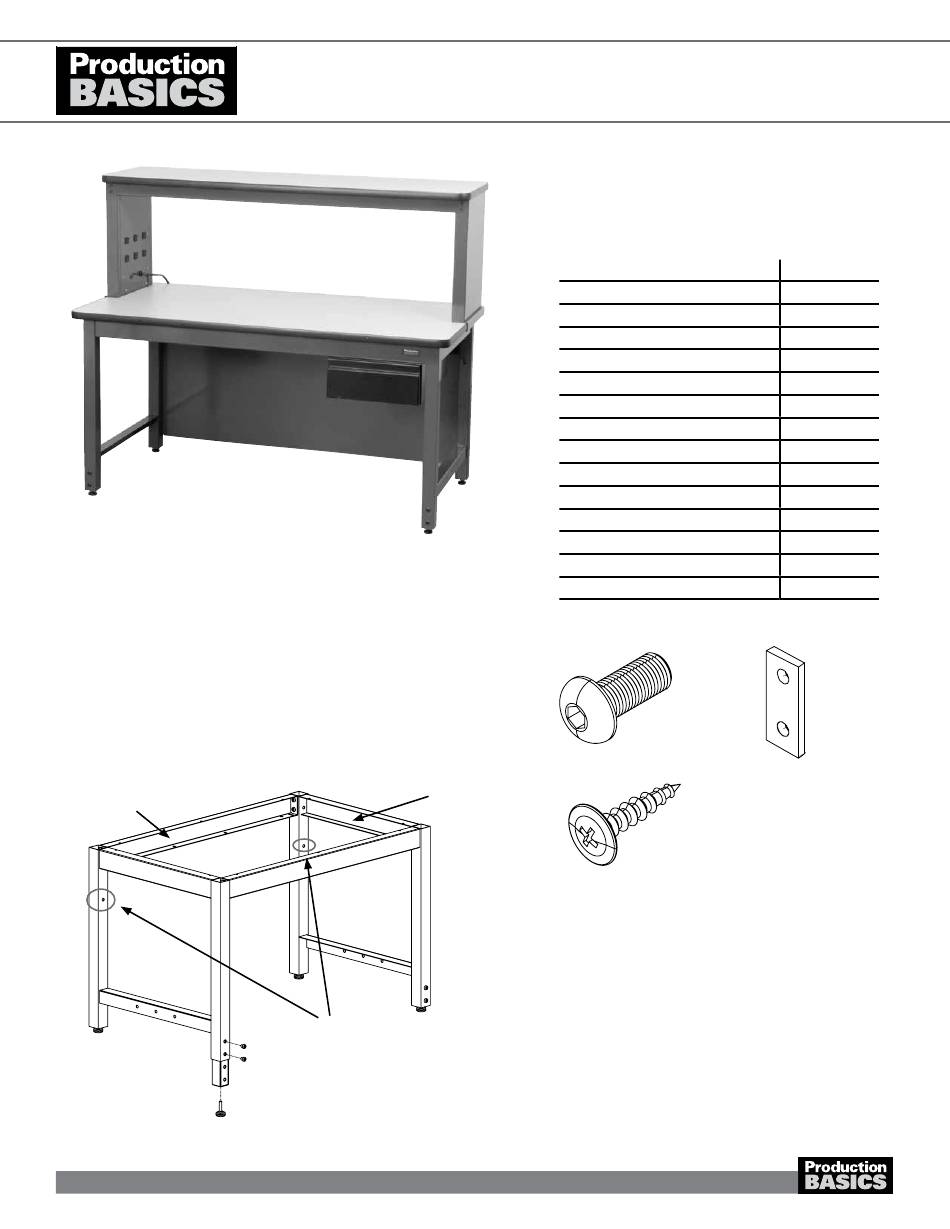

A S S E M B L Y M A N U A L
RTW Table with optional accessories
Right Frame Leg
(channel faces inward)
Mounting holes for Uprights
must be at back of Frame Leg.
800.318.2770
W o r k s t a t io n s
RTW TABLE
Item Numbers 3000-3115
P A R T S A N D H A R D W A R E
Frame Legs (left and right specific)
Leg Adjusters
RTW Support Rail
Chrome Mounting Plate
Worksurface
Leveling Feet
Wood Screws
Basic Bolts
7/32 Allen Wrench
Other Items Needed (not included)
Phillips head drill or screwdriver
Rubber mallet
Level
Tape Measure
Basic Bolt
Wood Screw
1. Open the cartons and identify the left and right Frame
Legs and RTW Support Rail. Position Frame Legs so
that mounting holes for Uprights are at the back of the
RTW Table. Frame Legs have a horizontal open channel
that faces inward.
2. Screw the levelling feet all the way into the leg adjusters.
3. Slide leg adjusters into bottom of Frame Legs. Determine
desired table height and secure position by inserting two
(2) Basic Bolts. Adjust leveling feet if necessary.
617.926.8100
Fax: 617.926.8010
Q U A N T I T Y
2
4
2
4
1
4
12
16
1
Chrome Mounting
Plate
www.pbasics.com
1
