Production Basics 1000-1711 Assembly Manual

C-leg stations
Hide thumbs

Advertisement

Quick Links

Download this manual
Assembly Tips
Review entire instruction manual before proceeding.
•
Assembly How-to Videos available on-line
•
http://video.pbasics.com
Production Basics name plate indicates front of frame.
•
Basic Nut grooves must grip inside of frame channel for
•
support (see below).
When initially securing Basic Bolts to Basic Nuts, attachment
•
is easy when nut and bolt are turned only one revolution.
Legs are adjustable in 2-inch increments between 30-36
•
OR 36-42 inches high to customize worksurface height,
depending on products ordered.
Don't be a slave to gravity–recruit a co-worker to help you
•
install and correctly position components and accessories.
References to 'Left' and 'Right' are oriented as if you were
•
facing the front of the workstation.
Production Basics, Inc.
Massachusetts, USA
ASSEMBLY VIDEOS AVAILABLE ON-LINE http://video.pbasics.com
1602A101

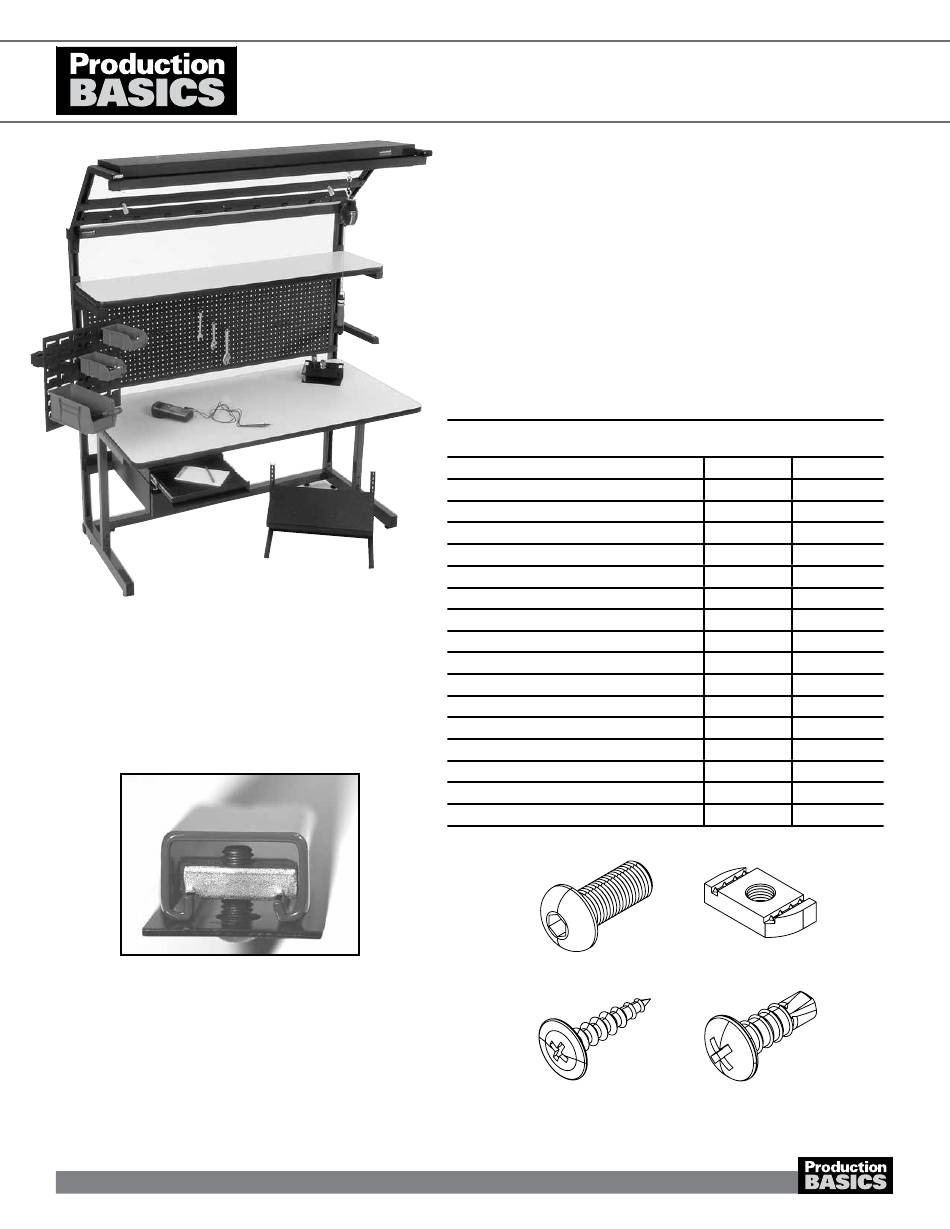

A S S E M B L Y M A N U A L
C-Leg Stationwith optional accessories
800.318.2770
W o rk st a t i o n s
C-LEG STATIONS
Item Numbers 1000-1711
P A R T S A N D H A R D W A R E
Height Adjustable C-Legs (2 pieces each)
Frame
Worksurface Support Rails
Top Brackets
Worksurface
Leveling Feet
End Caps
Wood Screws
Tek Screws
Basic Nuts
Basic Bolts
7/32 Allen Wrench
Casters (if ordered)
Other Items Needed (not included)
Phillips head screwdriver or drill
Rubber Mallet
Level
Basic Bolt
Wood Screw
617.926.8100
Fax: 617.926.8010
Q U A N T I T Y
30"D
36" D
worksurface
worksurface
2
2
1
1
2
3
2
2
1
1
6
6
8
8
8
12
6
8
8
10
12
14
1
1
4
4
Basic Nut
Tek Screw
www.pbasics.com
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1000-1711 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Production Basics 1000-1711

Summary of Contents for Production Basics 1000-1711

  • Page 1 Tek Screws Assembly How-to Videos available on-line • Basic Nuts http://video.pbasics.com Basic Bolts Production Basics name plate indicates front of frame. • 7/32 Allen Wrench Basic Nut grooves must grip inside of frame channel for • Casters (if ordered) support (see below).
  • Page 2 For different worksurfaces materials, an Assembly Manual is included. 10. Check all attachments and give all the bolts a final 30”D Workstation tightening. 36”D Workstation Worksurface Support Rail Production Basics, Inc. Massachusetts, USA 800.318.2770 617.926.8100 Fax: 617.926.8010 www.pbasics.com ASSEMBLY VIDEOS AVAILABLE ON-LINE http://video.pbasics.com...

  • Page 3: Parts And Hardware

    8. Attach Frame Joining Bracket, channel side down in the corner between the Frames by inserting Basic Nuts into frame channel. Turn Basic Bolt 90 degrees clockwise to grip, but do not tighten. Production Basics, Inc. Massachusetts, USA 800.318.2770 617.926.8100 Fax: 617.926.8010...
  • Page 4 9. Insert a Basic Bolt from the bottom into the front tab of the Frame Joining Bracket. Secure with Basic Nut. Insert the nut into the worksurface Support Rail from below (as shown) and turn Basic Bolt 90 degrees clockwise to grip. 10.

  • Page 5: A S S E M B L Y M A N U A L

    3. Ground other end of wire to electrical ground. 4. For additional information on grounding, contact your company’s ESD manager or the ESD Association at 315.339.6937, www.esda.org. Production Basics, Inc. Massachusetts, USA 800.318.2770 617.926.8100 Fax: 617.926.8010 www.pbasics.com...
  • Page 6 Nuts attached to light unit into Overhead Arm channel and turn Basic Bolt 90 degrees clockwise to grip. 7. Slide the light unit to the desired position. Tighten the bolts. Slide End Caps onto front ends of Overhead Arms. Production Basics, Inc. Massachusetts, USA 800.318.2770 617.926.8100 Fax: 617.926.8010...
  • Page 7 6. Slide the light unit to the desired position. Tighten the bolts. Slide End Caps onto front ends of Overhead Arms. 7. To adjust angle, loosen the 3-lobe knob on each end of the light and tilt to desired angle. Tighten knobs. Production Basics, Inc. Massachusetts, USA 800.318.2770 617.926.8100 Fax: 617.926.8010...
  • Page 8 90 degrees and tighten. 3. Ensure an end cap is secure on each end of the Track and there is a ‘brake’ positioned on each end of the track. Tool Trolley System on Uprights Production Basics, Inc. Massachusetts, USA 800.318.2770 617.926.8100 Fax: 617.926.8010 www.pbasics.com...
  • Page 9 For other worksurface thicknesses, use bracket from Step 1 and attach directly to surface. Bracket attachment for surface mount Power Rail Step 4 Step 4a Production Basics, Inc. Massachusetts, USA 800.318.2770 617.926.8100 Fax: 617.926.8010 www.pbasics.com ASSEMBLY VIDEOS AVAILABLE ON-LINE http://video.pbasics.com...
  • Page 10 1. Insert a Basic Bolt into the holes on the product’s mounting plate. Secure with a Basic Nut by turning one revolution. 2. Insert the nuts into the Frame or Uprights and tighten bolts. 3. Repeat for other side. Production Basics, Inc. Massachusetts, USA 800.318.2770 617.926.8100 Fax: 617.926.8010 www.pbasics.com ASSEMBLY VIDEOS AVAILABLE ON-LINE http://video.pbasics.com...
  • Page 11 BIN RAIL EXTENSION P A R T S A N D H A R D W A R E Q U A N T I T Y Item Numbers 8308, 8310 Basic Bolts Basic Nuts Bin Rail Extension Bin Rail Extension 7/32 Allen Wrench 1.

  • Page 12: Storage Cabinet

    4. To install the lock, push the lock mechanism through the hole in front of the cabinet door. Assemble as shown. Ensure the unthreaded part of the lock and the key teeth face upwards. Lock Detail Production Basics, Inc. Massachusetts, USA 800.318.2770 617.926.8100 Fax: 617.926.8010 www.pbasics.com...
  • Page 13 SHELVING: LAMINATE CORNER P A R T S A N D H A R D W A R E Q U A N T I T Y Item Numbers 8485, 8486, 8488, 8489 Laminate Shelf Brackets Shelf Cross Bar Basic Bolts Basic Nuts Wood Screws 7/32 Allen Wrench...
  • Page 14 Measure or use a level to ensure brackets are at the same height. 3. Attach the shelf to the bracket. Nest shelf in notches and pull forward to lock in place. Tighten brackets on frame or uprights. Production Basics, Inc. Massachusetts, USA 800.318.2770 617.926.8100 Fax: 617.926.8010 www.pbasics.com...
  • Page 15 Steps 4-5 Use hole set for hanging Use hole set for hanging first drawer -step 3 first drawer -step 3 Production Basics, Inc. Massachusetts, USA 800.318.2770 617.926.8100 Fax: 617.926.8010 www.pbasics.com ASSEMBLY VIDEOS AVAILABLE ON-LINE http://video.pbasics.com 1602A101...
  • Page 16 The Flat Screen Monitor Arm mounting plate should be sandwiched between the Add-on Keyboard Tray assembly and your monitor. Use the bolts that came with your Flat Screen Monitor Arm. Step 3 Production Basics, Inc. Massachusetts, USA 800.318.2770 617.926.8100 Fax: 617.926.8010 www.pbasics.com...
  • Page 17 See Step 4a for RTW Tables, 5. Secure the wrist support by inserting plastic screws from Easy-Lift 4-Post the bottom and tighten. See Step 2 for C-Leg, Easy-Lift Dual-Leg Production Basics, Inc. Massachusetts, USA 800.318.2770 617.926.8100 Fax: 617.926.8010 www.pbasics.com ASSEMBLY VIDEOS AVAILABLE ON-LINE http://video.pbasics.com...
  • Page 18 KEYBOARD DRAWER P A R T S A N D H A R D W A R E Q U A N T I T Y item Number 8681 Upper Side Bracket Lower Side Bracket Basic Bolts Upper side Bracket- C-leg/Easy-Lift Dual Leg, left side Basic Nuts Keyboard Drawer Cable Clip...
  • Page 19 3. Secure by inserting the handle into the nut on the Plate Support. 4. To adjust Footrest Plate placement, loosen or tighten U-Bolt on underside of plate. To adjust angle, use handles on the side. 5. Attach footrest as directed above. Production Basics, Inc. Massachusetts, USA 800.318.2770 617.926.8100 Fax: 617.926.8010 www.pbasics.com ASSEMBLY VIDEOS AVAILABLE ON-LINE http://video.pbasics.com...
