Production Basics RTW 3000 Assembly Manual

Assembly Tips
Review entire instruction manual before proceeding.
Production Basics nameplate indicates front of frame.
Legs are adjustable in 2-inch increments between 30-36 inches high
to customize worksurface height.
Don't be a slave to gravity-recruit a co-worker to help you install and
correctly position components and accessories.
References to 'Left' and 'Right' are oriented as if you were facing the
front of the workstation.
Need help? Call Assembly Support at 800.318.2770.
RTW Support Channel
Production Basics, Inc. 30 Bridge St. Watertown, MA 02472 617.926.8100 Fax: 617.926.8010 www.pbasics.com

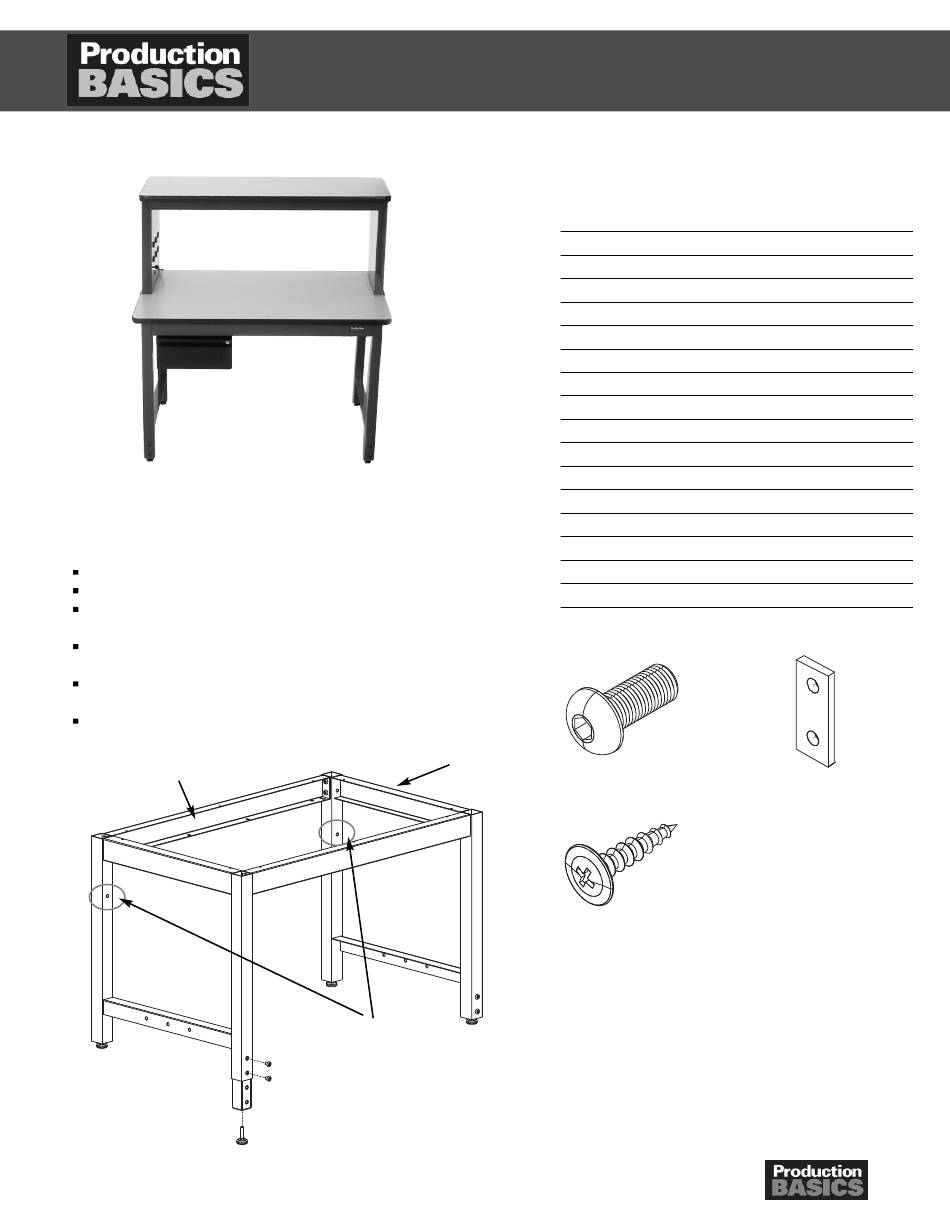

A S S E M B L Y M A N U A L
RTW Table with optional accessories.
Right Frame Leg
(channel facing inward)
Mounting holes for Uprights
must be at back of Frame Leg.
WO R K S TAT I O N S
RTW TABLE
Item Numbers 3000-3115
PA R T S A N D H A R D W A R E
Frame Legs (left and right specific)
Leg Adjusters
RTW Support Channel
Chrome Mounting Plate
Worksurface
Leveling Feet
End Caps
Wood Screws
Basic Bolts
Allen Wrench
Other Items Needed (not included)
Phillips head drill or screwdriver
Rubber mallet
Level
Tape Measure
To view an expanded hardware kit, download this linked PDF.
Basic Bolt
Wood Screw
1. Open the cartons and identify the left and right Frame Legs
and RTW Support Channels. Position Frame Legs so that
pre-drilled holes are at the back of the RTW Table. Frame
Legs have a horizontal open channel that faces inward.
2. Screw the levelling feet all the way into the leg adjusters.
3. Slide leg adjusters into bottom of Frame Legs. Determine
desired table height and secure position by inserting two (2)
Basic Bolts. Adjust leveling feet if necessary.
Q U A N T I T Y
2
4
2
4
1
4
6
12
16
1
Chrome Mounting
Plate
