Product Name:
SKU #:
Thank you for purchasing this Luxen Home product. This product has been manufactured with the highest
standards of safety and quality.
PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
Unpack all parts from Styrofoam and bubble wrap inside the carton to ensure there are no missing or damaged
parts. If any parts are missing or damaged, do not attempt to assemble or use the product.
Tools required for assembly: Screwdriver, flat head screwdriver, hammer, and measuring tape.
Assembly Instructions:
CARTON CONTENTS:

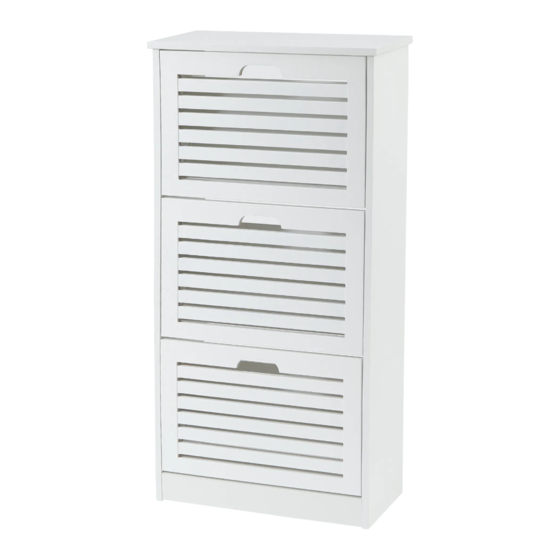

White Wood 18-Pair Shoe Storage Cabinet
WHIF899
Contact: sales@winsomehouse.com
Please save this manual for future reference.
Instruction Manual
Advertisement
Table of Contents
Related Manuals for Luxen Home WHIF899
Summary of Contents for Luxen Home WHIF899
- Page 1 White Wood 18-Pair Shoe Storage Cabinet SKU #: WHIF899 Thank you for purchasing this Luxen Home product. This product has been manufactured with the highest standards of safety and quality. PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY. Unpack all parts from Styrofoam and bubble wrap inside the carton to ensure there are no missing or damaged parts.
- Page 2 Instruction Manual Please save this manual for future reference. Product Name: White Wood 18-Pair Shoe Storage Cabinet SKU #: WHIF899 PANEL CONTENTS: Contact: sales@winsomehouse.com...
- Page 3 Please save this manual for future reference. Product Name: White Wood 18-Pair Shoe Storage Cabinet SKU #: WHIF899 Step 1 Make sure the pins are installed correctly as shown with the “check mark” below: Below shows how the pins are used to assemble the panels together.
- Page 4 Please save this manual for future reference. Product Name: White Wood 18-Pair Shoe Storage Cabinet SKU #: WHIF899 Step 2 With panel 2, insert panels 4 and screw in B to lock in place. Step 3 Insert panel 3 to panels 4. Screw in B to lock in place.
- Page 5 Please save this manual for future reference. Product Name: White Wood 18-Pair Shoe Storage Cabinet SKU #: WHIF899 Step 4 Insert panel 1 to (2, 3). Screw in B to lock in place. Step 5 To install the cabinet on the wall, align wall mount to panel 1 and screw in G.
- Page 6 Please save this manual for future reference. Product Name: White Wood 18-Pair Shoe Storage Cabinet SKU #: WHIF899 Step 6 Secure cabinet to the wall using hardware (G), see image below. Installation Tips Measure the distance between the hardware on the cabinet using a measuring tape.
- Page 7 Please save this manual for future reference. Product Name: White Wood 18-Pair Shoe Storage Cabinet SKU #: WHIF899 Step 7 Align I and J to panel 9 and screw in K. Step 8 Align panels (10, 11, 12) to I and J and screw in L.
- Page 8 Instruction Manual Please save this manual for future reference. Product Name: White Wood 18-Pair Shoe Storage Cabinet SKU #: WHIF899 Step 9 Place drawer in cabinet. Insert F to I and J. Screw in H. Final Special Warnings and Cautions: To avoid injury and/or damage, please do not sit or stand on the cabinet as this may cause serious bodily injuries and/or product damage.
