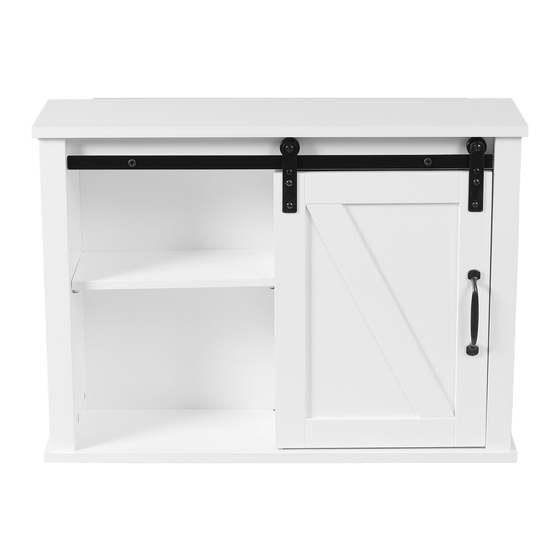

Farmhouse White MDF Bathroom Wall Cabinet
Product Name:
SKU #:
WHIF961
Thank you for purchasing this Winsome House product. This product has been manufactured with the highest
standards of safety and quality.
PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
Unpack all parts from Styrofoam and bubble wrap inside the carton to ensure there are no missing or damaged
parts. If any parts are missing or damaged, do not attempt to assemble or use the product.
Hardware:
1 ×12
2 ×12
7 ×4
8 ×2
13 ×6
14 ×2
Tools required for assembly: Philips screwdriver and Flathead Screwdriver (if using power tools, use with care)
3 ×6
4 ×2
9 ×8
10 ×2
15 ×1
16 ×2
0:40
Contact: sales@winsomehouse.com
Instruction Manual
Please save this manual for future reference.
5 ×2
11 ×2
17 ×1
6 ×1
12 ×2
Advertisement
Related Manuals for Luxen Home WHIF961
Summary of Contents for Luxen Home WHIF961
- Page 1 Please save this manual for future reference. Farmhouse White MDF Bathroom Wall Cabinet Product Name: SKU #: WHIF961 Thank you for purchasing this Winsome House product. This product has been manufactured with the highest standards of safety and quality. PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
- Page 2 Instruction Manual Please save this manual for future reference. Farmhouse White MDF Bathroom Wall Cabinet Product Name: SKU #: WHIF961 Panels: Contact: sales@winsomehouse.com...
- Page 3 Instruction Manual Please save this manual for future reference. Farmhouse White MDF Bathroom Wall Cabinet Product Name: WHIF961 SKU #: Step 1 Make sure the pins are installed correctly as shown with the “check mark” below: Below shows how the pins are used to assemble the panels together.
- Page 4 Instruction Manual Please save this manual for future reference. Product Name: Farmhouse White MDF Bathroom Wall Cabinet WHIF961 SKU #: Step 2 Insert wooden dowel (3) onto (E), attach it to (B)&(C) . 2 ×4 Attach assembled two unit as shown,tighten the cam lock (2) clockwise to secure.
- Page 5 Please save this manual for future reference. Farmhouse White MDF Bathroom Wall Cabinet Product Name: SKU #: WHIF961 Step 3 1 ×6 Screw cam bolt (1) onto top panel (A), Insert back panels (G) onto unit, Insert wooden dowel (3) onto (E), tighten the cam lock (2) clockwise to secure.
- Page 6 Instruction Manual Please save this manual for future reference. Farmhouse White MDF Bathroom Wall Cabinet Product Name: SKU #: WHIF961 Step 4 8 ×2 9 ×8 Attach (12) to (B)&(C) with screws (13) Attach metal runner(15) onto unit with bolt (8) as shown with tool (17).
- Page 7 Instruction Manual Please save this manual for future reference. Farmhouse White MDF Bathroom Wall Cabinet Product Name: SKU #: WHIF961 Step 5 4 ×2 5 ×2 Fix the handle (6) on the door (I) with bolts (4). Insert the door (I) into the bolt (14), pull up the door a little to hang the wheels (16) onto the metal runner (15).
- Page 8 Please save this manual for future reference. Farmhouse White MDF Bathroom Wall Cabinet Product Name: SKU #: WHIF961 Step 6 10 ×2 Drill holes on the wall to input Wall plug (11). Fix the unit to the wall with Screw (10) and through (12) as shown.
- Page 9 Instruction Manual Please save this manual for future reference. Farmhouse White MDF Bathroom Wall Cabinet Product Name: SKU #: WHIF961 Step 7 Contact: sales@winsomehouse.com...
