Luxen Home WHIF962 Instruction Manual

Sliding one door wood cabinet
Hide thumbs Also See for WHIF962:

Advertisement

Quick Links

Download this manual
Product Name:
SKU #:
Thank you for purchasing this LuxenHöme product. This product has been manufactured with the highest standards of
safety and quality.
PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
Unpack all parts from Styrofoam and bubble wrap inside the carton to ensure there are no missing or damaged parts.
If any parts are missing or damaged, do not attempt to assemble or use the product.

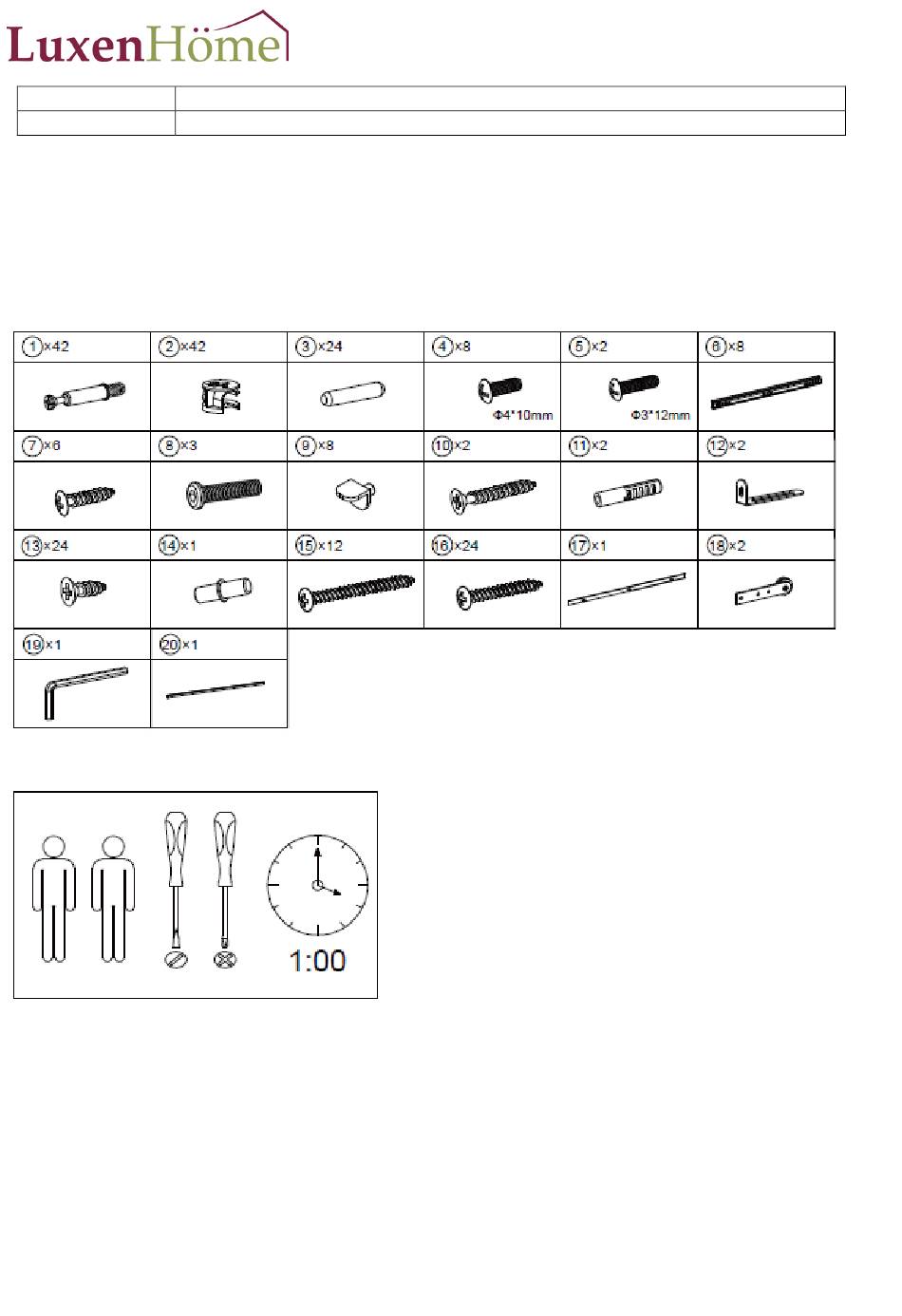

Hardware:
Tools required for assembly: Philips screwdriver and Flathead Screwdriver (if using power tools, use with care)
Rustic Sliding One Door Wood Cabinet
WHIF962
For service and questions, please contact us at cs@winsomehouse.com.
Instruction Manual
Please save this manual for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the WHIF962 and is the answer not in the manual?

Questions and answers

Related Manuals for Luxen Home WHIF962

Summary of Contents for Luxen Home WHIF962

  • Page 1 Please save this manual for future reference. Product Name: Rustic Sliding One Door Wood Cabinet SKU #: WHIF962 Thank you for purchasing this LuxenHöme product. This product has been manufactured with the highest standards of safety and quality. PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
  • Page 2 Instruction Manual Please save this manual for future reference. Product Name: Rustic Sliding One Door Wood Cabinet SKU #: WHIF962 Panels: For service and questions, please contact us at cs@winsomehouse.com.
  • Page 3 Rustic Sliding One Door Wood Cabinet SKU #: WHIF962 Tip: Make sure dowel pins (Hardware Part 1) are installed correctly as shown with the “check mark below”: Below image shows how the dowel pins and cam locks are used to assemble the panels together. Cam locks are turned clockwise to secure it to the dowel pin.
  • Page 4 Product Name: Rustic Sliding One Door Wood Cabinet SKU #: WHIF962 Step 2 – Continue assembling the base of the cabinet, by attaching the bottom panel H to the assembled base frame (N and O from Step 1). To do this, first insert wooden dowels (3) into underside of the bottom panel H.
  • Page 5 Product Name: Rustic Sliding One Door Wood Cabinet SKU #: WHIF962 Step 3 – This step is for assembling the sides of the cabinet. This requires the front panels F and G, and the side panels B and C. Start by screwing dowel pins (1) into the front panels F and G (see Figure D). Then attach front panel F to side panel B by tightening the cam lock (2) clockwise to secure it together.
  • Page 6 Instruction Manual Please save this manual for future reference. Product Name: Rustic Sliding One Door Wood Cabinet SKU #: WHIF962 For service and questions, please contact us at cs@winsomehouse.com.
  • Page 7 Rustic Sliding One Door Wood Cabinet SKU #: WHIF962 Step 4 – This step is preparing the side of the cabinet that contains the drawers. First, use screws (16) to attach the wood rails I to the panel C. See Figure F for reference.
  • Page 8 Rustic Sliding One Door Wood Cabinet SKU #: WHIF962 Step 5 – Continue with the assembly of the left side of the cabinet. First insert wood dowels (3) into panels D and C (see Figure H below). Attach bars J (there two) and K (this one is in the middle) to panels C and D by inserting them into the other end of the wood dowels (3).
  • Page 9 Instruction Manual Please save this manual for future reference. Product Name: Rustic Sliding One Door Wood Cabinet SKU #: WHIF962 Figure I For service and questions, please contact us at cs@winsomehouse.com.
  • Page 10 Rustic Sliding One Door Wood Cabinet SKU #: WHIF962 Step 6 – Next, we are going to attach the cabinet base assembled in Steps 1 and 2 to the cabinet body. Attach base H to the body, and tight the cam lock (2) clockwise to secure (see Figure J). Attach bracket (12) to the underside of the panel A with screws (7).
  • Page 11 Rustic Sliding One Door Wood Cabinet SKU #: WHIF962 Step 7 – The back panel assembly is next. Gently lift the cabinet upright. Slide panels L and rod (20) into the back of the cabinet (see Figure L). Next, attach the top panel A to the body of the cabinet lining of the wood dowels with the holes in the underside of the panel A.
  • Page 12 Rustic Sliding One Door Wood Cabinet SKU #: WHIF962 Step 8 – Get ready to attach the sliding door’s metal runner, and the adjustable shelves in this step. First, attach the metal runner (17) on the front of the cabinet with bolts (8) using tool (19).
  • Page 13 Rustic Sliding One Door Wood Cabinet SKU #: WHIF962 Step 9 (Optional) – To secure the cabinet to the wall, drill hole into the wall to insert the wall plug (11). Fix the unit to the wall using screws (10) going through the attached metal brackets (12). See Figure N.
  • Page 14 Rustic Sliding One Door Wood Cabinet SKU #: WHIF962 Step 10 – For this step, it is time to assemble the four drawers. Insert dowel pins (1) into the backside of the drawer front panel Q. Assemble drawer side panels R and S to the back drawer panel T using screws (16). Slide in the drawer bottom panel U into R, S, and T assembly.
  • Page 15 Rustic Sliding One Door Wood Cabinet SKU #: WHIF962 Step 11: Time for the sliding door! First, attach door metal rollers (18) at the top of the door front. Align and insert the door P into the bolt (14), and pull the door up a little to hang the wheels (18) onto the metal runner (17).
  • Page 16 Please save this manual for future reference. Product Name: Rustic Sliding One Door Wood Cabinet SKU #: WHIF962 Enjoy your assembled cabinet! Please do not sit or stand on the cabinet to avoid injury. For service and questions, please contact us at cs@winsomehouse.com.
