Redarc TVMSDBWK-001 Quick Start Manual

TVMSDBWK‑001
TVMSDBWK‑002
WIRING KITS FOR TVMS
The TVMSDBWK range allows the RedVision Total Vehicle Management System (TVMS) distribution box to
measure the water level in an RV/motor home clean water tank. If installing this kit for a gray or black water tank,
refer to the TVMS1280 Instruction Manual for further information.
The TVMS can report five states: empty, one-quarter, one-half, three-quarters, and full. The TVMS can measure
the level of up to six tanks. A separate TVMSDBWK-001 is required for each tank. For more information, refer to
the RedVision Instruction Manual available on the REDARC website.
TVMSDBWK-001 includes all parts. TVMSDBWK-002 contains only the Wiring Loom.

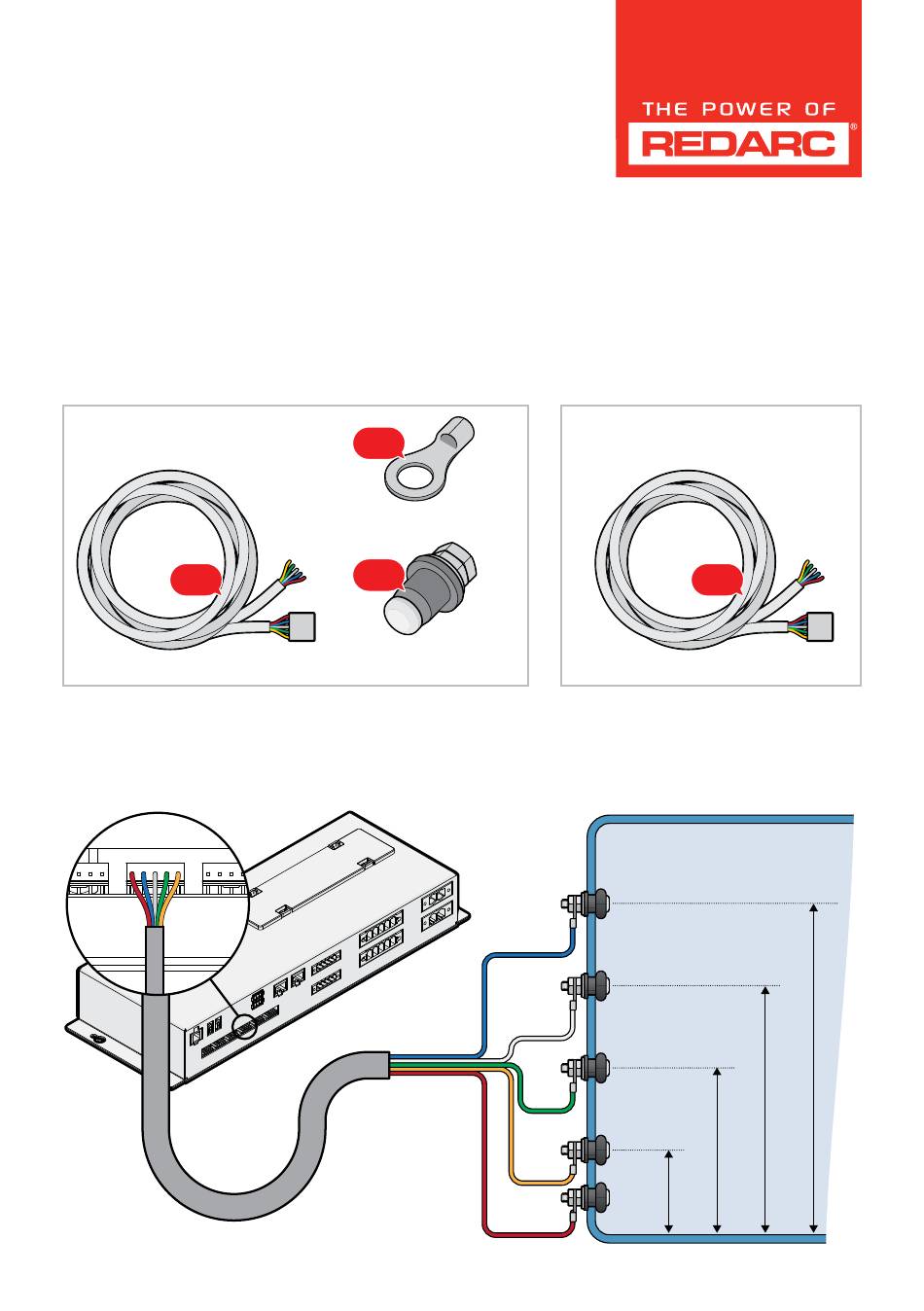

TVMSDBWK‑001
Water Tank Sensor Kit
×1
5 m (16'5") Wiring Loom
WIRING & INSTALLATION DIAGRAM
×5
Crimp Lugs
×5
Screw-in Water Level
Sensor Probes
WHITE
GREEN
YELLOW
TVMSDBWK‑002
Water Tank Sensor Wiring Loom
5 m (16'5") Wiring Loom
BLUE
40%
20%
RED
×1
80%
60%
