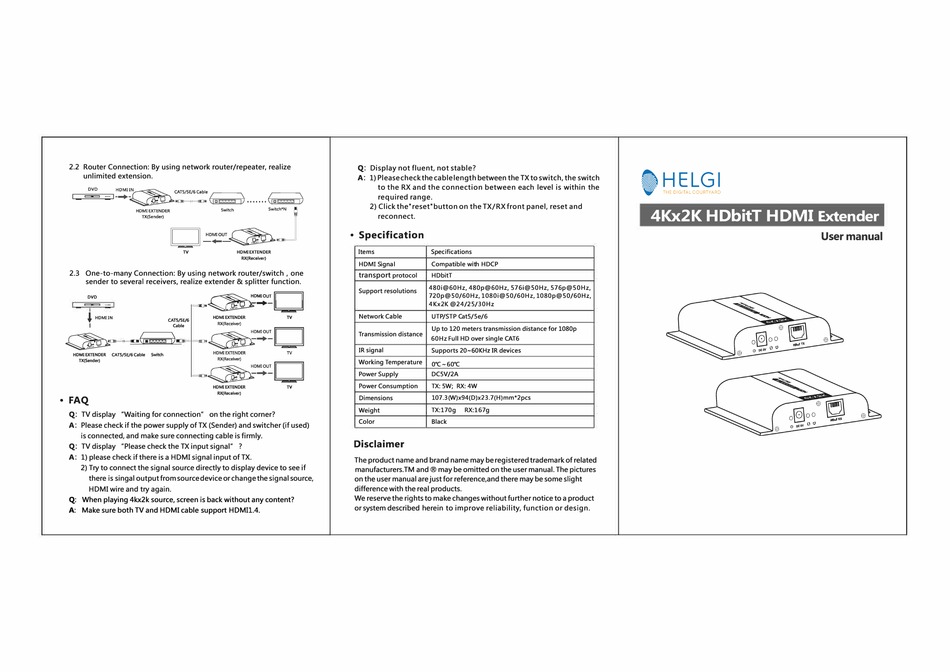

HELGI HLG0683-RX User Manual

2. 2 Router Connection: By using network router/repeater, realize
unlimited extension.
TV HDMI EXTENDER
2. 3 One-to-many Connection: By using network router/switch , one
sender to severa I receivers, realize extender & splitter function.
DVD
� �
i 1JL,�-+
HDMIIN HDMI EXTENDER
CATS/SE/6
Cable
I
�,,
]l{::,�iii{
HDMI EXTENDER CATS/SE/6 Cab le Switch
TX(Sender)
HDMI EXTENDER
RX{Receiver)
• FAQ
Q: TV display "Waiting for connection" on the right corner?
A: Please check if the power supply of TX (Sender) and switcher (if used)
is connected, and make sure connecting cable is firmly.
Q: TV display "Please check the TX input signal" ?
A: 1) please check if there is a HDMI signal input ofTX.
2) Try to connect the signal source directly to display device to see if
there is singal output from source device or change the signal source,
HDMI wire and try aga in.
Q: When playing 4kx2k source, screen is back without any content?
A: Make sure both TV and HDMI cable support HDMil. 4 .
Q: Display not fluent, not stable?
A: 1) Please check the cable length between the TX to switch, the switch
to the RX and the connection between each level is within the
required range.
2) Click the"reset"button on the TX/RX front panel, reset and
reconnect.
• Specification
ltems
□
RX(Receiver)
HDMI Signa I
transport protocol
Support resolutions
MIO
�
L_J
Network Cable
TV
Transmission distance
IR signal
Working Temperature
Power Supply
Power Consumption
TV
Dimensions
Weight
Color
Disclaimer
The product name and brand name may be registered trademark of relateci
manufacturers. T M and ® may be omitted on the user manual. The pictures
on the user manual arejust for reference,and there may be some slight
difference with the real products.
We reserve the rights to make changes without further notice to a product
or system described herein to improve reliability, function or design.
Specifications
Compatible with HDCP
HDbitT
480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz,
720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz,
4Kx2K @24/25/30Hz
UTP/STP Cat5/5e/6
Up to 120 meters transmission distance far 1080p
60Hz Full HD over single CAT6
Supports 20~60KHz IR devices
0'C~60'C
DC5V/2A
TX: 5W; RX: 4W
107 .3 (W)x94(D)x2 3. 7 (H) mm •2 pcs
TX:170g RX:167g
Black
4Kx2K HDbitT HDMI Extender
Usermanual
