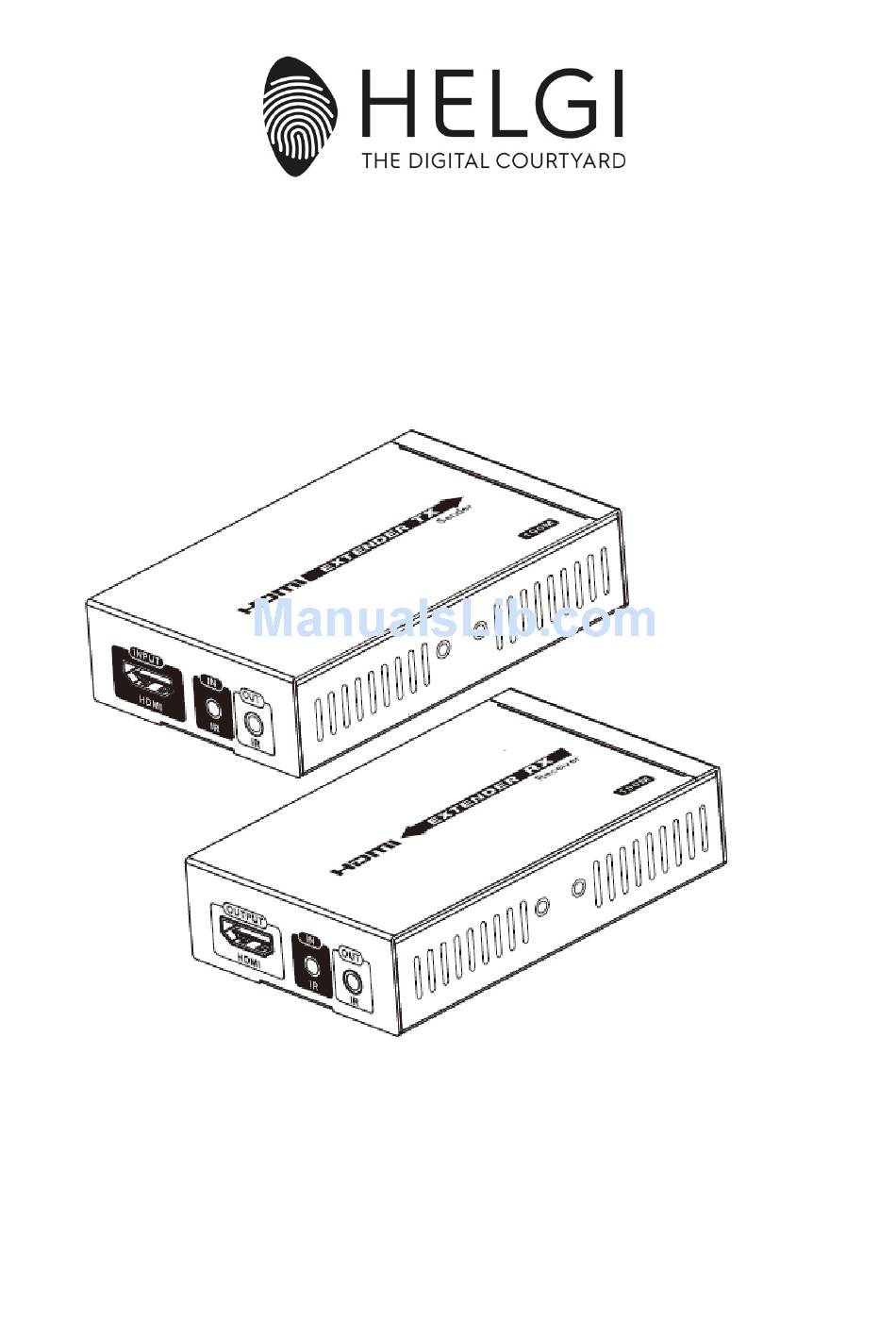

- Page 1 HDMI HDBase Extender over single Cat5e/6/7-70m User manual...
- Page 2 Thank you for purchasing this product. For optimum performance and safety, please read the instructions carefully and keep the manual for future reference. Important safety notice Please read below safety instructions carefully before installation and operation: * Please pay attention to all the warnings and hints on this device. * Do not expose this unit to rain, moisture and liquid.
-
Page 3: Package Contents
Support uncompressed LPCM audio and compressed DTS-HD, Dolby True HD Can be powered by network cable. It only needs to input 12V power for either transmitter or receiver for normal working. 3. Package contents HDMI to HDBaseT TX HDBaseT to HDMI RX DC12V/2A *1pcs sender*1pcs receiver*1pcs... -
Page 4: Panel Description
5. Panel description 5.1 HDMI to HDBaseT TX Sender ① HDMI IN:HDMI signal input to connect with HDMI source device. ② IR IN:IR signal input to connect with IR receiver extension cable. ③ IR OUT:IR signal output to connect with IR blaster extension cable. ④... -
Page 5: Installation Procedures
LED indicators working status ① It is lighting on with power on. ② When the sender connect the receiver working normal,the No2 lamp flashing status,and when input signal transmission normal the lighting keeps on. ③ It is lighting on when RX's HDMI OUT connects with HDMI display device and has HDMI signal output. - Page 6 6.3 Bi-directional IR pass back 1) It supports bi-directional IR pass back . User can c o n t r o l DVD at TX end and control TV at RX end. 2) If control at RX end, please connect IR blaster extension cable with IR OUT of TX and connect IR receiver extension cable with IR IN of RX.
- Page 7 8.Specification Disclaimer * The product name and brand name may be registered trademark of related manufacturers.TM and ® may be omitted on the user manual. The pictures on the user manual are just for reference, and there may be some slight difference with the real products.
