HDMI Extender OVER NETWORK
User's manual
• Introduction
This HDMI extender over cat6 extends the HDMI content up to 60
meters for 1080p.
• Important safety notice
1. Do not mix up HDMI to RJ45 sender and RJ45 to HDMI receiver before
installation.
2. Do not hot plug when it is working.
3. Use DC5V power supply only. Make sure specification matched if using
adapters not supplied by factory.

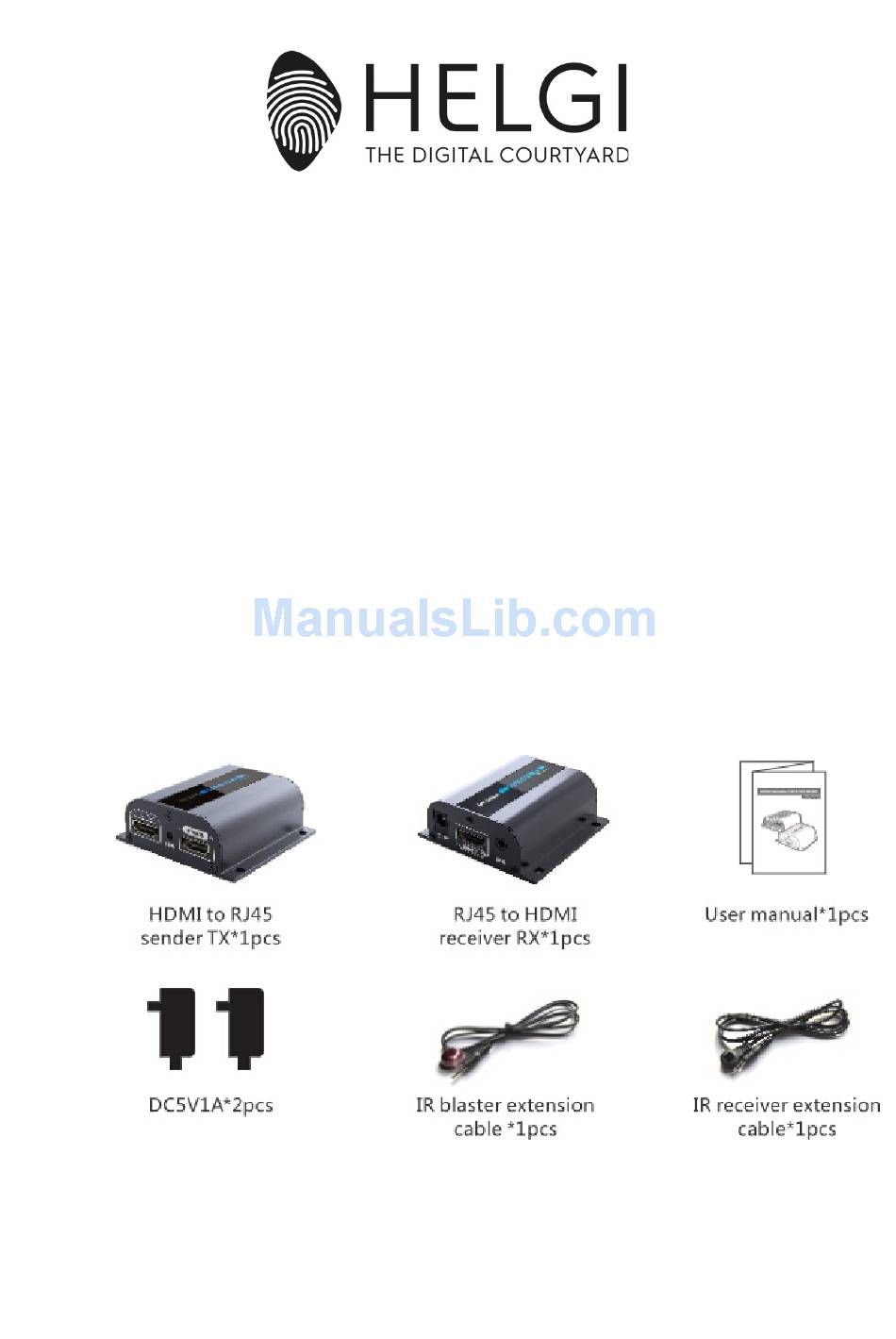

• Package Contents
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HELGI HI0372PRO
Summary of Contents for HELGI HI0372PRO
- Page 1 HDMI Extender OVER NETWORK User's manual • Introduction This HDMI extender over cat6 extends the HDMI content up to 60 meters for 1080p. • Important safety notice 1. Do not mix up HDMI to RJ45 sender and RJ45 to HDMI receiver before installation.
- Page 2 • Installation Requirements 1. HDMI source device(computer graphics card, DVD,PS3, HD monitoring equipment etc). 2. HDMI display device like SDTV, HDTV, projector with HDMI port. 3. UTP/STP cat6/6A/7 cable, follow standard IEEE-568B. • Panel Description 1. HDMI to RJ45 transmitter...
- Page 3 2. RJ45 to HDMI receiver • Installation Procedures 1. Cat6 network cable Follow the stanard of IEEE-568B: 1- Orange/white 5- Blue/white 2- Orange 6- Green 3- Green/white 7- Brown/white 4- Blue 8- Brown...
- Page 4 2. Connections Connection instruction: 1) Connect TX HDMI input with source device HDMI output. Connect TX HDMI output with HDTV HDMI input. 2) Connect TX CAT6 with RX CAT6. 3) Connect RX HDMI output with HDTV HDMI input. 4) Power on the device and it works...
- Page 5 • FAQ Q: No image output or audio and video display is not normal? A: 1) Adjust RX “RESET” button to reset the device. 2) Try shorter network cable to reconnect. Q: RX “LINK” led is flashing all the time? A: 1) Make sure network cable connection follows the standard of IEEE- 568B.
