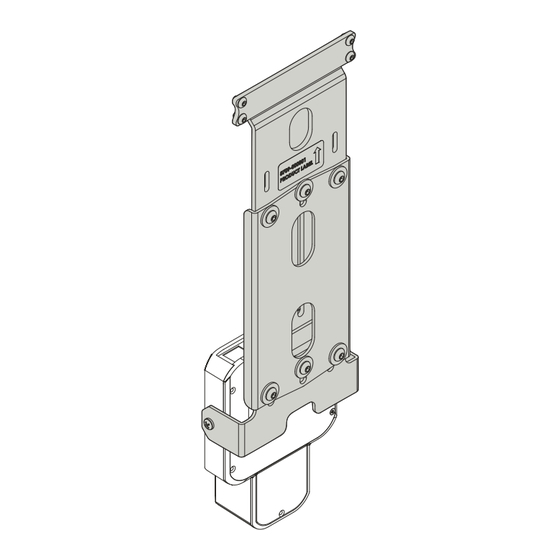

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Thinstall ConferenceSHOT® ™ Camera Bracket Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description TA210K...
-
Page 2: Important Safety Instructions
The information contained in this document is subject follow all instructions can result in serious personal injury, to change without notice or obligation of any kind. Legrand damage to equipment, or voiding of factory warranty! It is the makes no representation of warranty, expressed or implied, installer’s responsibility to make sure all accessories are... -
Page 3: Installation Instructions
Installation Instructions TA210K LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación Perforar... -
Page 4: Tools Required For Installation
TA210K Installation Instructions TOOLS REQUIRED FOR INSTALLATION 3/8" 5/32" (included) 1/8" (included) PARTS C (1) [TA210K camera bracket B (1) [extension bracket] A (1) [attachment bracket] D (1) E (4) F (6) [backing bracket] G (6) #10-24 x 3/8" 1/4-20 x 5/8" 1/4"... -
Page 5: Shelf Assembly
Installation Instructions TA210K Installation Shelf Assembly (F) x 3 Use three 1/4-20 x 5/8" button head cap screws (F) and three 1/4" washers (G) to connect bracket (C) to either extension bracket (B) or attachment bracket (A). (See Figure 1) NOTE: Use extension bracket (B) for larger displays or if component needs to be mounted further from the... - Page 6 TA210K Installation Instructions TS3XX or iCF30 Installation If already installed, remove display from faceplate. See swing arm installation instructions for details. Use four #10-24 x 1/2" Phillips head screws (H) and four #10-24 lock nuts (K) to connect attachment bracket (A) to faceplate.
-
Page 7: Height Adjustment
Installation Instructions TA210K Camera/Component Installation without extension bracket with extension bracket WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the combined weight of all equipment and accessories mounted on the TA210K brackets does not exceed 10 lbs (4.54 kg) per bracket. - Page 8 P +31 (0) 495 580 852 F +31 (0) 495 580 845 Asia Pacific A Office No. 918 on 9/F, Shatin Galleria 8800-003281 Rev00 18-24 Shan Mei Street 2021 Legrand Fotan, Shatin, Hong Kong www.legrandav.com P 852 2145 4099 04/2021 F 852 2145 4477...
