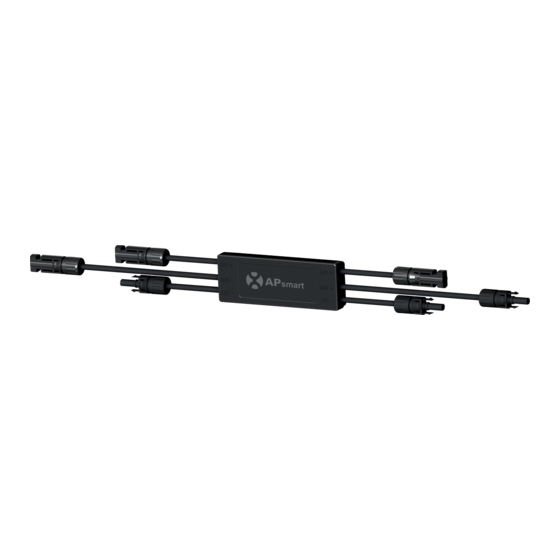

APsmart RSD-D Quick Installation Manual

Hide thumbs Also See for RSD-D:

RSD-D Quick Installation Guide

INPUT2+

OUTPUT-

INPUT2-

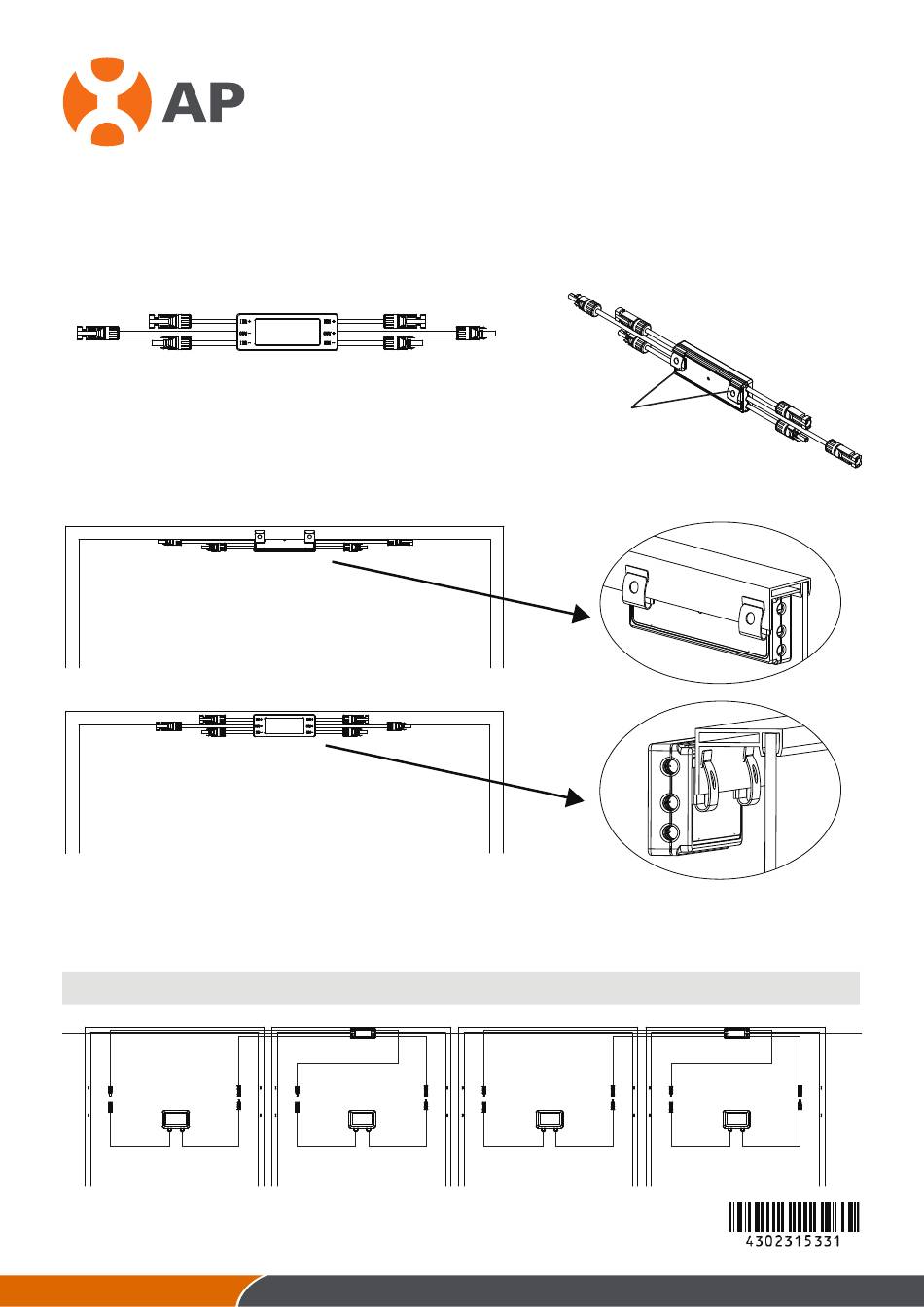

Step1. Buckle RSD-D onto the PV module frame.

A.Back buckle

B.Front buckle

Step 2. Connect the INPUT1 connectors of the RSD-D to the first PV module junction box

and connect the INPUT2 connectors to second PV module, the device DC output voltage

is within the range of 1.2 ~ 2v.

NOTE: Do not short-circuit the RSD-D output connectors, otherwise it will be damaged.

smart

INPUT1+

INPUT1-

OUTPUT+

Mounting brackets

2021/08/06 Rev2.5 | Quick Installation Guide

Table of Contents

Need help?

Do you have a question about the RSD-D and is the answer not in the manual?

Page 1 A.Back buckle B.Front buckle Step 2. Connect the INPUT1 connectors of the RSD-D to the first PV module junction box and connect the INPUT2 connectors to second PV module, the device DC output voltage is within the range of 1.2 ~ 2v.
Page 2 NOTE: When installing RSD-D cable, the bending radius of the cable near the casing must be greater than 50 mm. Bending Radius of the cable >50mm √ × √ × Step 3. Connect the output connectors of RSD-D in series to the string, the string open-air DC voltage is within the range of (1.2 ~ 2v) X #RSD-Ds.
