- Page 1 Installation /User Manual APsmart Rapid Shutdown Device & Transmitter Rev1.1 2021/2/2 RSD-D TRANSMITTER-PLC TRANSMITTER-PLC OUTDOOR KIT © All Rights Reserve 19925 Stevens Creek Blvd, Suite 100, Cupertino, CA 95014 +1 737-218-8486 | info@APsmartGlobal.com | APsmartGlobal.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS----------------------------------------------------------------------1 RSD PRODUCTS-----------------------------------------------------------------------------------------------2 TRANSMITTER PRODUCTS----------------------------------------------------------------------------------3 SYSTEM WIRING DIAGRAM---------------------------------------------------------------------------------4 RSD-D INSTALLATION----------------------------------------------------------------------------------6 TRANSMITTER-PLC INSTALLATION -----------------------------------------------------------------------9 TECHNICAL DATA—RSD-D----------------------------------------------------------------------------12 TECHNICAL DATA—TRANSMITTER-PLC-----------------------------------------------------------------13 TECHNICAL DATA—TRANSMITTER-PLC-OUTDOOR KIT----------------------------------------------14... -
Page 3: Important Safety Instructions
· Before installing or using the RSD-D, please read all instructions and cautionary markings in the technical documents. · Be aware that the body of the operating RSD-D is a heat sink and can reach high temperature. To reduce risk of burns, do not touch the body of the RSD-D. -
Page 4: Rsd Products

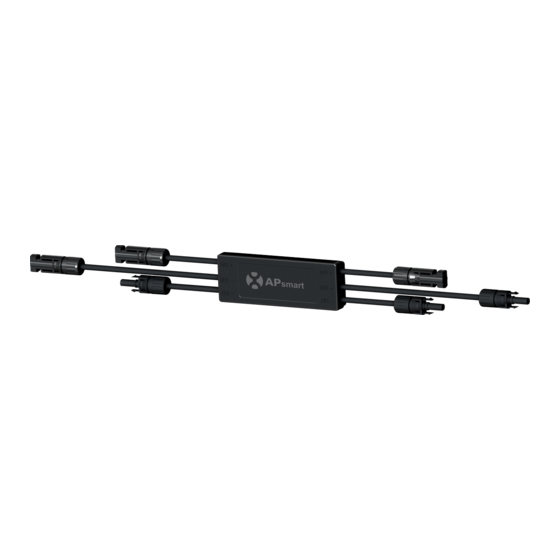

· Dual-input channel The RSD-D meets SunSpec requirements, maintaining normal function by continually receiving a heartbeat signal from the APsmart Transmitter. The RSD-D executes rapid system shutdown when the Transmitter signal is absent. Users can manually execute rapid shutdown using the Transmitter breaker switch. -
Page 5: Transmitter Products
TRANSMITTER PRODUCTS Transmitter-PLC · Meets NEC 2017&2020 (690.12) requirements · Switching off Transmitter-PLC results in rapid shutdown of the output of PV modules · Meets SunSpec requirements · Equipped with single/dual core · Optional 85-264VAC power supply · Optional 180-550VAC power supply Transmitter-PLC-Outdoor Kit ·... -
Page 6: System Wiring Diagram
The APsmart Rapid Shutdown System Transmitter-PLC is part of a rapid shutdown solution when paired with the APsmart RSD-D, a PV module rapid shutdown unit. While powered on, the Tansmitter-PLC sends a signal to the RSD-D units to keep the PV modules connected and supplying energy. - Page 7 *PV1+ *PV2+ *Only (+) or (-) through core ① RSD-D ② Transmitter-PLC-Outdoor Kit ③ Inverter *PV1+ *PV2+ *Only (+) or (-) through core ① RSD-D ② Inverter* *Inverter in diagram includes an integrated SunSpec-certified Rapid Shutdown Transmitter. User Manual...
-
Page 8: Rsd-D Installation
② Be aware that only qualified professionals should install and/or replace the RSD-D. ③ Before installing or using an RSD-D, please read all instructions and warnings in the technical documents and on the inverter system itself as well as on the PV array. - Page 9 Step 1: Install the RSD-D. INPUT2+ INPUT1+ OUTPUT- OUTPUT+ INPUT2- INPUT1- Mounting brackets Buckle RSD-D onto the PV module frame. Back buckle B. Front buckle User Manual...
- Page 10 2 port of RSD-D to the other PV module junction box. WARNING: When connecting the RSD-D to only one PV module, use INPUT1 port ONLY, then connect a DC extension cable to both terminals of INPUT2 to short the unused side, otherwise the RSD-D may be damaged.
-
Page 11: Transmitter-Plc Installation
PLC fails to work, the Signal LED will not be blinking. If the Power LED is also not lit, check the power supply first. Note: Install the RSD-D before powering on the Transmitter-PLC. • Mount Transmitter-PLC and power supply on DIN rail •... - Page 12 Note: Install the RSD-D before powering on the Transmitter-PLC. • Pass either positive or negative cables through cores (either both positive cables or both negative cables. Do not use one positive and one negative cable.) • Connect wires to AC side of power supply...
- Page 13 Drilling Guide for .75" Conduit Drilling Guide for 1" Conduit User Manual...
-
Page 14: Technical Data-Rsd
TECHNICAL DATA—RSD-D Model RSD-D Input Data (DC) Per Channel Input Operating Voltage Range 8-80V Per Channel Maximum Cont. Input Current (Imax) Output Data (DC) Output Operating Voltage Range 16-160V Maximum Output Current Maximum System Voltage 1000V/1500V Mechanical Data Operating Ambient Temperature Range F to +167 F (-40 °C to + 75 °C) -
Page 15: Technical Data-Transmitter-Plc
TECHNICAL DATA—TRANSMITTER-PLC Model Transmitter-PLC Main electrical data Main electrical data Input Voltage 12VDC Input Current 0.8A Communication Power Supply Residential（optional） 85-264VAC Input, 12VDC Output, 90 mm x 17.5 mm x 58.4 mm Commercial（optional） 180-550VAC Input, 12VDC Output, 125.2 mm x 32 mm x 102 mm Core data 29mm Core 11mm Core... -
Page 16: Technical Data-Transmitter-Plc-Outdoor Kit
TECHNICAL DATA—TRANSMITTER-PLC-OUTDOOR KIT Model Transmitter-PLC-Outdoor Kit Main electrical data Main electrical data Input Voltage 12VDC Input Current 0.8A Communication Power Supply Residential（optional） 85-264VAC Input, 12VDC Output, 90 mm x 17.5 mm x 58.4 mm Commercial（optional） 180-550VAC Input, 12VDC Output, 125.2 mm x 32 mm x 102 mm Core data 29mm Core Max.Current...
