Summary of Contents for Plymovent MOBILEGO
- Page 1 Mobile welding fume extractor with flexible arm MOBILEGO | MOBILEGO PLUS Installation and user manual www.plymovent.com...
-
Page 2: Table Of Contents
To improve comprehension for people whose first language is not English, we have written parts of this manual in Simplified Technical English (STE). STE is a controlled language originally developed for aerospace industry maintenance manuals. It offers a carefully limited and standardized subset of English, along with specific writing rules. 0000111659/140921/C MobileGo... -
Page 3: Preface

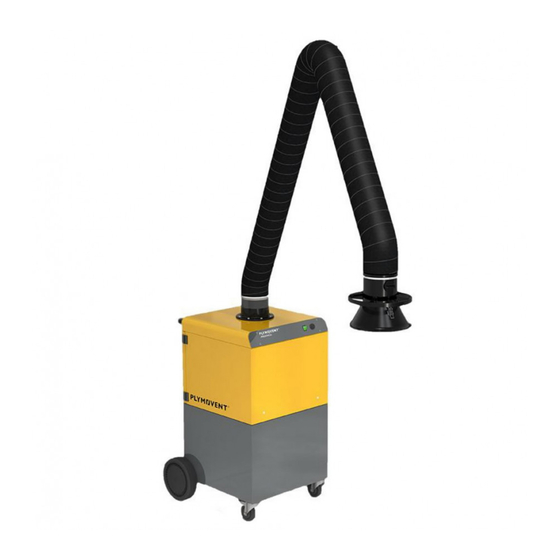

The following pictograms and symbols are used in this manual: General description The MobileGo is a mobile filter unit with an integrated fan and Suggestions and recommendations to simplify an extraction arm. It features a pre filter cassette and a HEPA carrying out tasks and actions. -
Page 4: Product Description
2.2.1 Indication of filter replacement The MobileGo has a service indicator that monitors the airflow. - Handle the filter unit and the accompanying extraction arm It gives an acoustic signal to replace the filter(s). - Page 5 In case of doubt it is the use which can be deduced from the construction, the model and the function of the technical product which is considered normal use. Operating the machine within the limits of its intended use also involves observing the instructions in the user manual. 0000111659/140921/C MobileGo...
-
Page 6: Installation
Put the washer M20 (E) on the rotating flange (F). 4.1.1 To be sourced locally • Put the hinge rod (B) in the rotating flange (F). - plug (except for MobileGo in 230V/1ph/50Hz) • Put the hose (A) over the arm swivel ring (D). Unpacking •... -
Page 7: Use
Therefore we Fig. 5.1 recommend to thoroughly inspect the complete product once Tumbler switch 0-1 with green LED every year beside the indicated periodic maintenance. For this Buzzer (service indicator) purpose contact your supplier. 0000111659/140921/C MobileGo... - Page 8 Remove the pre filter cassette (A). • Dispose of the used filter cassette in accordance with state The arrow indicates the airflow direction or local regulations. The arrow indicates the airflow direction. An incorrectly placed pre filter cassette affects the filter lifetime. 0000111659/140921/C MobileGo...
-
Page 9: Troubleshooting
The green The unit does Relay is Replace the relay LED is on but not function defective the fan does Thermal relay is Replace the thermal not run defective relay Motor defective Repair or replace the motor 0000111659/140921/C MobileGo... -
Page 10: Disposal
CE DECLARATION CE declaration of conformity for machinery We, Plymovent Manufacturing B.V., Koraalstraat 9, 1812 RK Alkmaar, Netherlands, herewith declare, on our own responsibility, that the products: - MobileGo... - Page 11 ANNEX Fig. I Dimensions inch 28½ 28¾ 1100 43¼ Fig. II Working range EA-2/H KUA-160/2H EA-3/H KUA-160/3H 0000111659/140921/C MobileGo...
- Page 12 ANNEX Fig. III Positioning of the extraction arm A = max. 480 mm (19 in.) B = > 480 mm (19. in.) Fig. IV Reset 0000111659/140921/C MobileGo...
- Page 13 ANNEX Fig. V Adjustment of the extraction arm | Adjustment points D (2x) E (2x) D (2x) 0000111659/140921/C MobileGo...
- Page 14 ANNEX Fig. VI Exploded view MobileGo | MobileGo plus 2019 0000117114 0000117121 0000300902 0000117128 0000117125 0000117129 0000117126 0000111628 0000111637 0000111636 0000117904 (2x) 0000100583 0000117140 0000117135 0000117136 0000117139 0000101364 0000117141 0000111659/140921/C MobileGo...
- Page 15 ANNEX Spare parts MobileGo | MobileGo plus Article no. Description General 0000101364 Wheel covers grey (set of 2) 0000111637 Pre filter cassette 1 m² 0000117139 Wheel Ø 250 mm 0000117140 Swivel castor Ø 100 mm with brake 0000117141 Sealing L=1,9 m for door GoLine...
- Page 16 ANNEX Fig. VII Exploded view hose tube arm (Economy Arm) 0000101944 0000101537 0000101917 0000101918 0000101919 0000101903 0000102989 0000101395 0000101912 0000101912 (2x) 0000101908 0000102409 0000101550 0000101911 0000101937 0000111659/140921/C MobileGo...
- Page 17 Connection flange with grid 0000102409 Rotating flange (ball bearing) 0000102989 Rubber collar Ø 160 mm Economy Arm 2/H 0000101917 Hose L=2500 mm/Ø 163 mm, incl. 2 hose clamps Economy Arm 3/H 0000101919 Hose L=3500 mm/Ø 163 mm, incl. 2 hose clamps 0000111659/140921/C MobileGo...
- Page 18 Exploded view metal tube arm (KUA-160) 0000101944 0000101537 0000102409 0000102989 0000101907 0000101395 0000101916 0000101903 0000102199 0000102396 0000102398 0000102400 0000102384 0000102387 0000102385 0000102388 0000102386 0000102389 0000101904 0000101905 0000101913 0000101914 0000102397 0000102399 0000102401 0000101912 (2x) 0000102960 0000101906 0000101915 0000101911 0000101908 0000101550 0000114072 0000101937 0000102525 0000111659/140921/C MobileGo...
- Page 19 Hose L=850 mm/Ø 163 mm, incl. 2 hose clamps 0000102387 Inner frame KUA-160/2S, complete 0000102396 Inner tube KUA-160/2 0000102397 Outer tube KUA-160/2 KUA-160/3S 0000101905 Hose L=1000 mm/Ø 163 mm, incl. 2 hose clamps 0000102388 Inner frame KUA-160/3S, complete 0000102398 Inner tube KUA-160/3 0000102399 Outer tube KUA-160/3 0000111659/140921/C MobileGo...
- Page 20 0000111659/140921/C MobileGo www.plymovent.com...
