www.jbctools.com
English

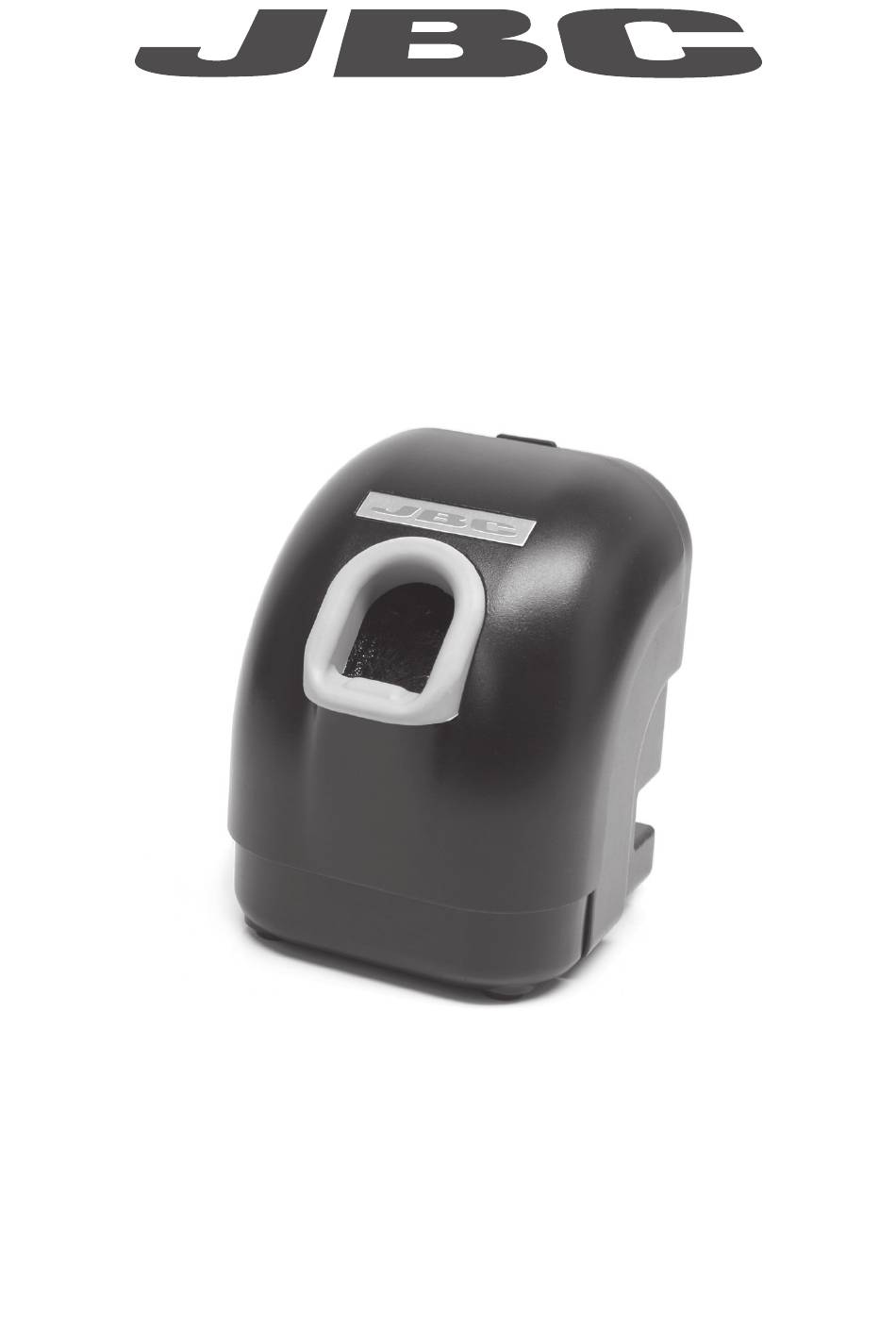

Junior Tip Cleaner
Ref. CLMS-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLMS-A and is the answer not in the manual?

Questions and answers

Related Manuals for jbc CLMS-A

Summary of Contents for jbc CLMS-A

  • Page 1 English Junior Tip Cleaner Ref. CLMS-A...

  • Page 3: Packing List

    Packing List The following items should be included: Junior Tip Cleaner ........1 unit Brushes for CLMS-A ......2 units Ref. CLMS-A Ref. CLMS-A8 Manual ............1 unit AC Adapter ..........1 unit Ref. 0015146 Ref. 0015971 w w w.jbctools.com Junior Tip Cleaner...

  • Page 4: Operation & Features

    Operation & Features The CLMS-A consists of 2 motorized brushes that start working when the operator presses the button at the opening with the tool. Splashguard It helps keep the work area always clean Green light Indicates when it is ON...

  • Page 5: Continuous Mode

    w w w.jbctools.com Continuous mode The tip cleaner has a second operating mode whereby the brushes run continuously without having to press the button. Bottom view Switch ON/OFF Turn the switch to ON and the brushes are activated in continuous mode. Changing Gate Protector Easily replace the Gate Protector Ref.
  • Page 6 Changing brushes and cleaning Easily replace the brushes and clean the solder collector tray as follows: 1. Open the splashguard 2. Remove the brushes 3. Remove the solder collector tray Unplug from the mains and Remove by pulling out the Once clean, return it to slide the tab on the top to bottom end.

  • Page 7: Maintenance

    - Maintain the brushes clean and replace when necessary. The same for the solder collector tray. - Replace any defective or damaged piece. Use original JBC spare parts only. - Repairs should be performed only by a JBC authorized technical service.

  • Page 8: Specifications

    Output: DC 12V, 1A Complies with CE standards. ESD protected housing “skin effect”. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear due to use or mis-use.
