www.jbctools.com

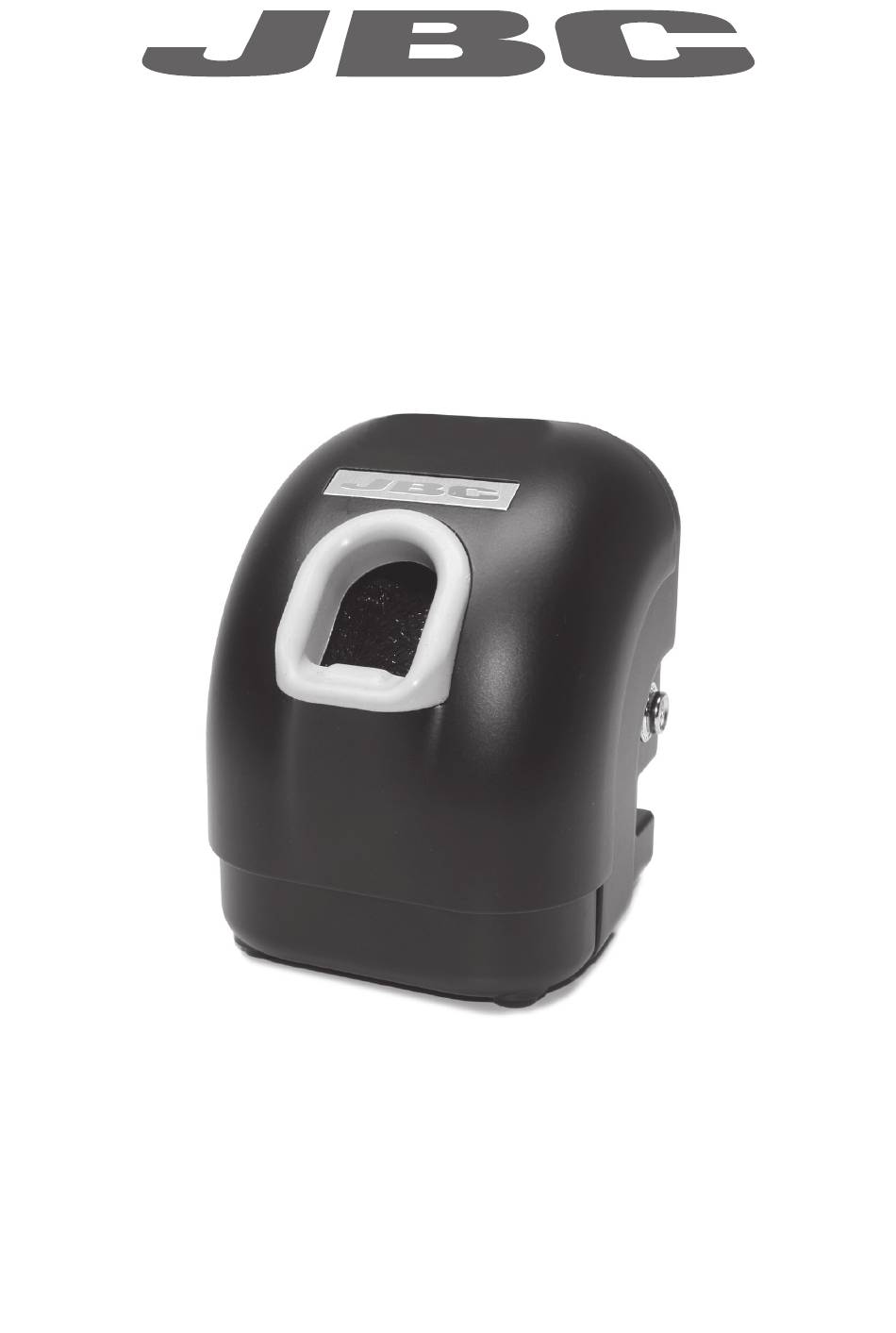

INSTRUCTION MANUAL
Junior Tip Cleaner
Ref. CLMS-B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLMS-B and is the answer not in the manual?

Questions and answers

Related Manuals for jbc CLMS-B

Summary of Contents for jbc CLMS-B

  • Page 1 INSTRUCTION MANUAL Junior Tip Cleaner Ref. CLMS-B...

  • Page 2: Packing List

    Packing List The following items should be included: Junior Tip Cleaner ........1 unit CLMS Metal Brushes ........ 1 unit Ref. CLMS-B Ref. CLMS-A8 AC Adapter ..........1 unit Manual ............1 unit Ref. 0015971 Ref. 0017509 w w w.jbctools.com...

  • Page 3: Operation & Features

    Operation & Features The CLMS-B consists of 2 motorized brushes that are activated by pressing the button at the opening. Splashguard Keeps the work area clean Green light Indicates when it is activated Button at the opening...

  • Page 4: Continuous Mode

    Continuous mode The tip cleaner has a second operating mode whereby the brushes run continuously. Switch ON/OFF Bottom view Turn the switch to OFF and the brushes are activated in continuous mode. Changing brushes and cleaning Replace the brushes easily and clean the solder collector tray as follows: 1.
  • Page 5 w w w.jbctools.com Changing Gate Protector Easily replace the Gate Protector (Ref. 0015972) as follows: 1. Opening 2. Removing Unplug from the mains and slide the tab on the Pull out the damaged gate protector. top to open the splashguard. 3.

  • Page 6: Maintenance

    - Use a damp cloth to clean the splashguard and the inside. - Keep the brushes and the tray clean and replace when necessary. - Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should be performed only by a JBC authorized technical service.

  • Page 7: Exploded View

    w w w.jbctools.com Exploded View...

  • Page 8: Specifications

    -ESD safe connector Complies with CE standards. ESD protected housing “skin effect”. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
